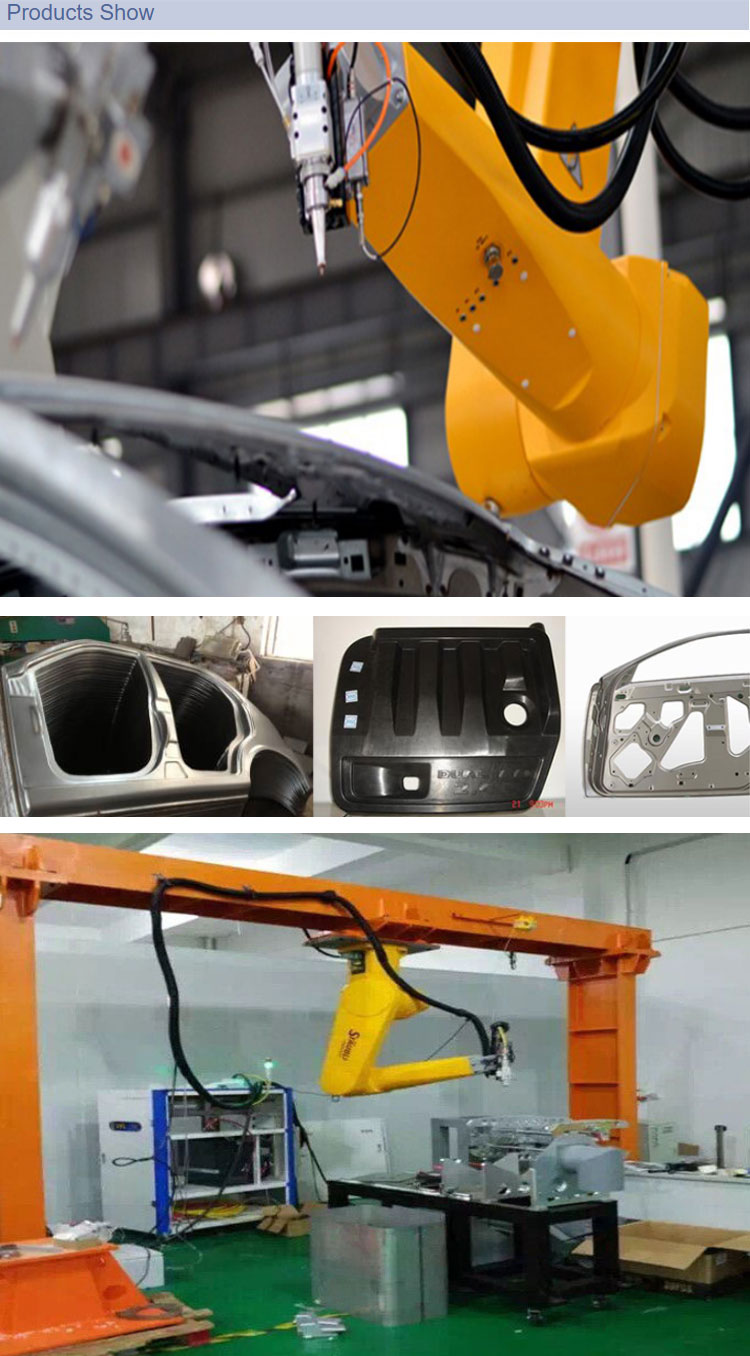

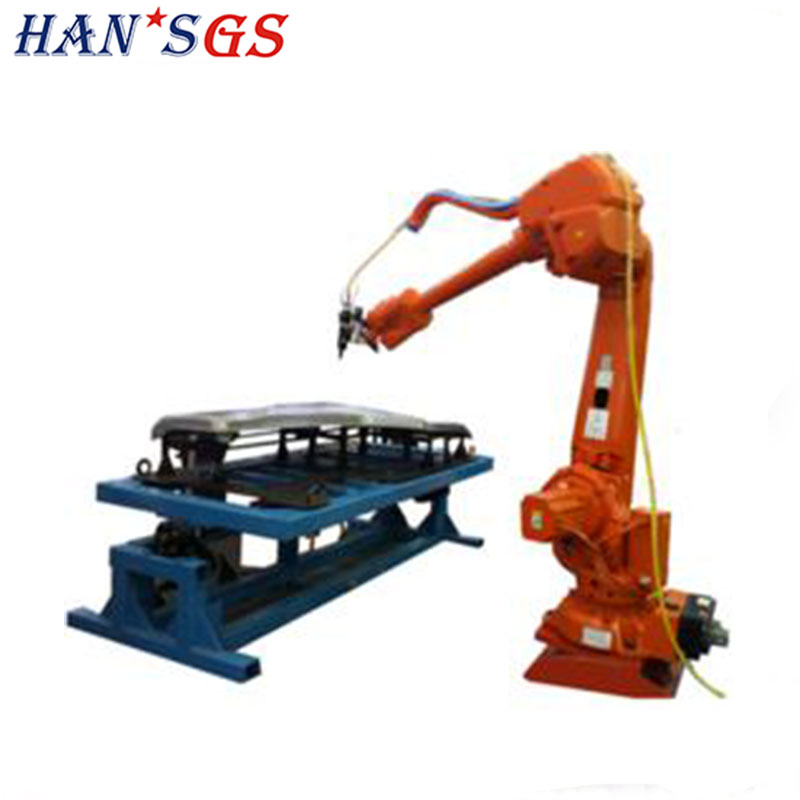

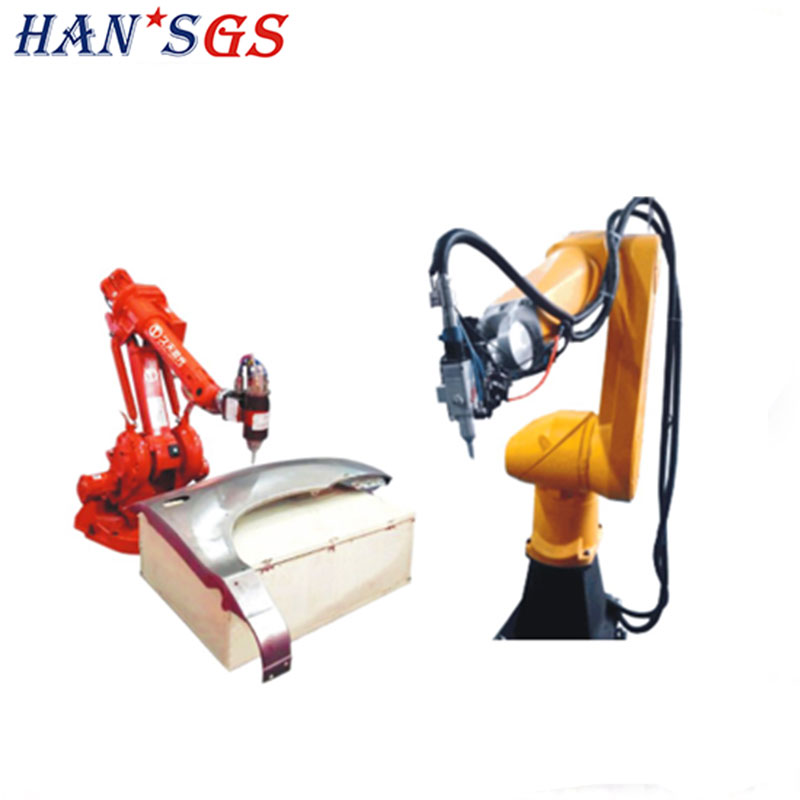

500W 3D Laser Cutting Machine with Robotic Arm
This 500W 3D laser cutting machine is designed for precision cutting of 5mm carbon steel and 3mm stainless steel. It features a robotic arm for flexible 3D cutting capabilities, allowing for complex shapes and intricate designs.
Technical Specifications
Overview
Advanced 3D Robotic Laser Cutting
This 500W 3D laser cutting workstation integrates a high-precision 6-axis robotic arm with advanced fiber laser technology for complex metal processing. Designed for versatility, it excels in cutting intricate shapes and 3D components in materials like stainless steel and carbon steel. The system features a fully integrated CNC control environment, ensuring seamless operation and high efficiency for demanding industrial applications.
Performance Metrics
Key Performance Metrics
Material Processing
Cutting Capacities
| Material | Maximum Thickness |
|---|---|
| Carbon Steel | 5mm |
| Stainless Steel | 3mm |
- Supported Materials
- Carbon SteelStainless SteelSpring SteelAlloy SteelAluminum Alloy
Technical Features
System Components
- Fiber laser source with power supply
- Water chilling unit
- Transmission fiber and laser guidance system
- Laser cutting head with follow-up sliding table
- 6-axis robotic arm
- Robot control cabinet and teaching box
Integrated CNC Control
The system utilizes a Profibus bus system to ensure stable signal interaction. The fully integrated CNC software allows for numerical control programs to be executed directly, supporting NC programming or CAD/CAM systems without the need for complex language conversion.
- High Precision Operation
- Yes
