500mm-560mm Hydraulic Butt Fusion Machine for Plastic Pipes
This hydraulic butt fusion welding machine joins plastic pipes with diameters of 500mm and 560mm. It utilizes hydraulic power to provide consistent pressure during welding, ensuring strong and reliable joints.
Technical Specifications
Overview

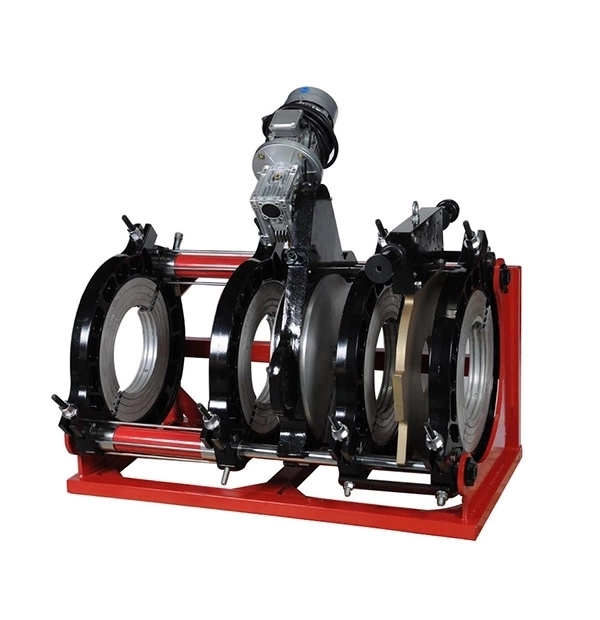

High-Precision Hydraulic Butt Fusion Welding
The HDC630 is a professional-grade hydraulic butt fusion machine designed for joining large-diameter plastic pipes including HDPE, PP, and PVC. It utilizes a robust hydraulic system to provide consistent and controlled pressure, ensuring strong, leak-proof joints that match or exceed the strength of the pipe itself. Engineered for both on-site and workshop applications, this machine offers precise alignment and temperature control for reliable performance in water supply, gas distribution, and industrial piping projects.
Technical Performance
Power Supply
12.2 kW
Power Consumption
380 V
Voltage
- Welding Range
- 400mm450mm500mm560mm630mm
Components
Standard Configuration

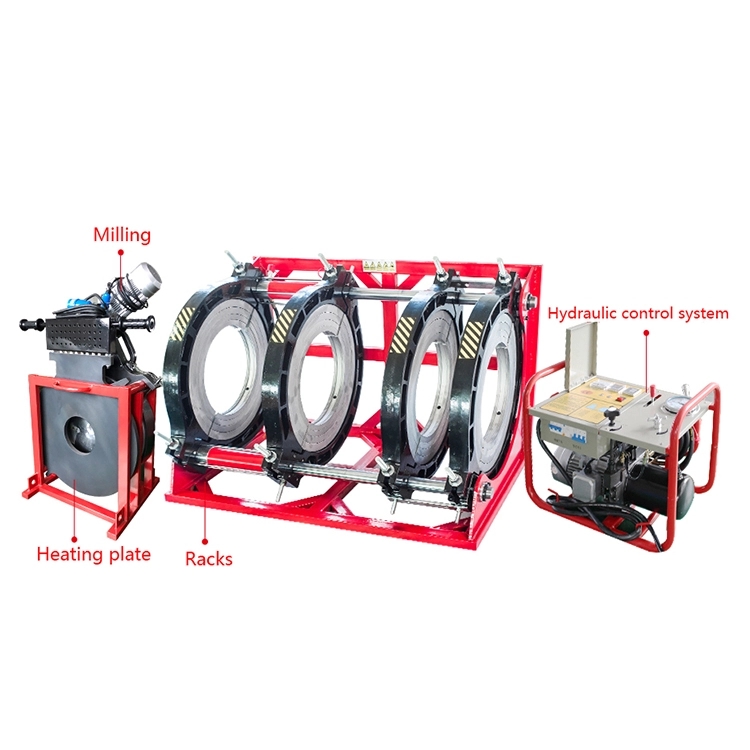

- Basic Machine Rack
- Milling Cutter (Facing Tool)
- Heating Plate with Temperature Control
- Hydraulic Station
- Support Basket
- Control Box
Component Specifications
Component Weights & Dimensions
| Component | Dimensions (cm) | Weight (kg) |
|---|---|---|
| Racks | 131 x 97 x 92 | 300 |
| Milling Cutter | 78 x 29 x 109 | 103 |
| Heating Plate | 91 x 7 x 100 | 34 |
| Hydraulic Station | 58 x 46 x 45 | 49 |
| Control Box | 38 x 20 x 43 | 10 |
| Basket | 63 x 58 x 71 | 14 |
Physical Properties
- Net Weight
- 510 kg
- Gross Weight
- 580 kg
- Total Shipping Volume
- 2.66 m³
Operational Process
Technical Workflow
- Fix pipe on frame with 5cm-8cm gap
- Use milling cutter to achieve smooth pipe ends
- Insert heating plate once stable temperature is reached
- Apply pressure for fusion based on pipe size and environment
- Cool joint to ambient temperature before removing from frame

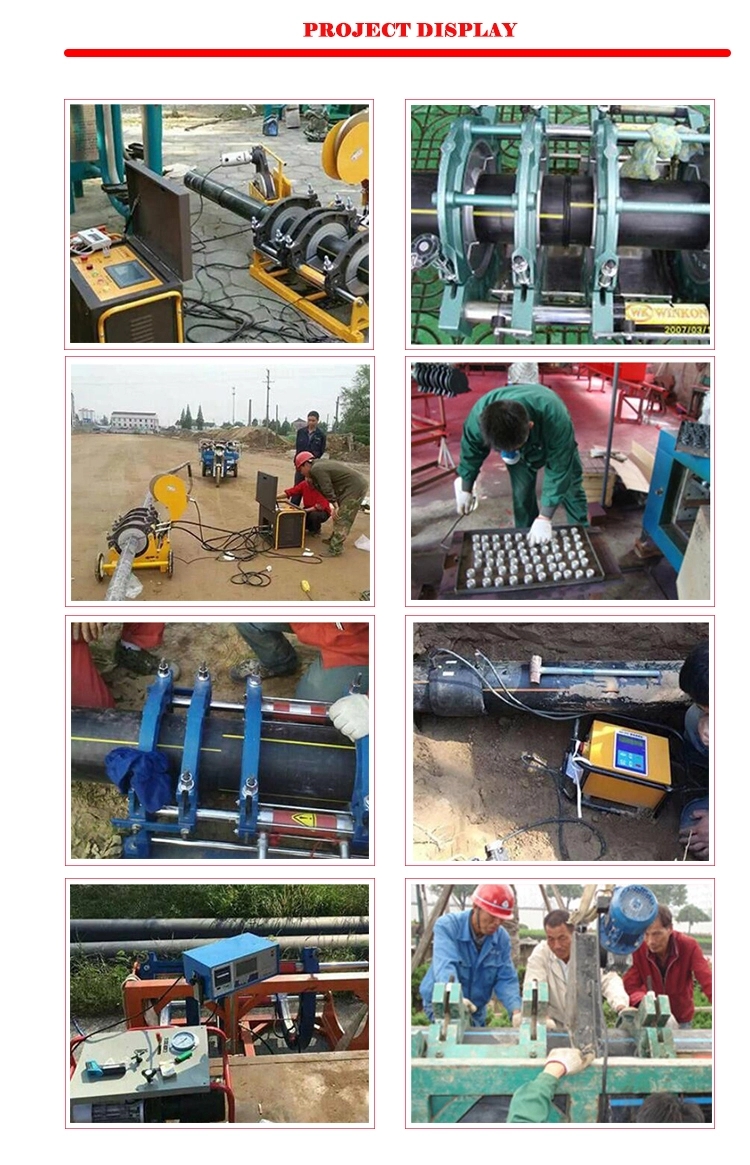

Applications
Compatible Materials
HDPEPPPVCPVDF
