5-10 Ton Single Girder Gantry Crane
This single girder gantry crane is designed for industrial use and is capable of lifting loads between 5 and 10 tons. It is built with a robust construction and optimized for efficient material handling.
Technical Specifications
Product Overview

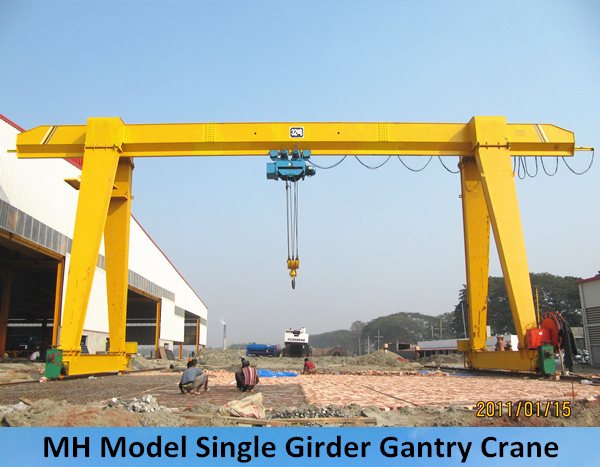

Efficient MH Model Single Girder Gantry Crane
The MH model single girder gantry crane is a versatile lifting solution designed for industrial factories, warehouses, and outdoor yards. Unlike bridge cranes that move on suspended runways, this crane uses robust legs to support the bridge, with the electric hoist traveling along the girder. The legs travel on fixed rails embedded in or laid on top of the floor, providing a stable and cost-effective alternative for heavy material handling.
Key Performance Metrics
Lifting Capacity
5 Ton
Minimum Capacity
10 Ton
Maximum Capacity
Product Advantages
Key Benefits
- Reduces plant and workshop construction costs
- Significantly improves production efficiency
- Versatile design suitable for both indoor and outdoor usage
- Minimized daily maintenance requirements
- High-performance safety features
Technical Components
- Standard Components

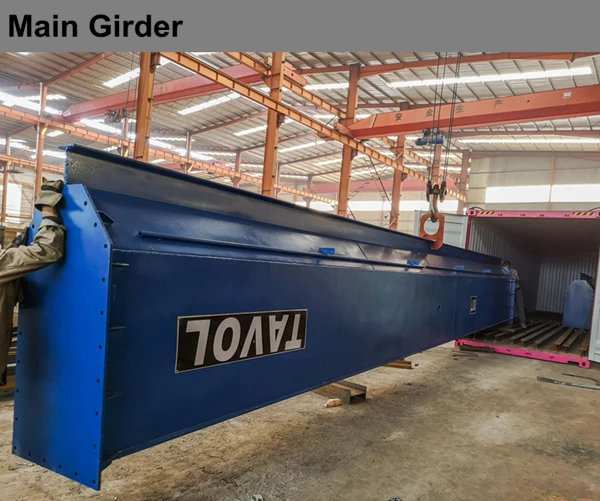

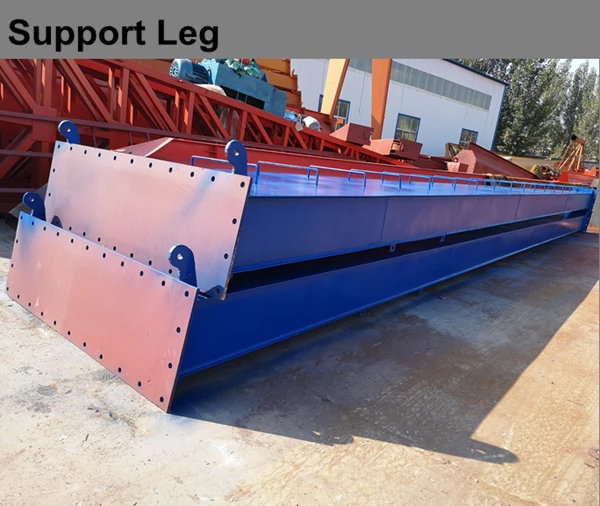

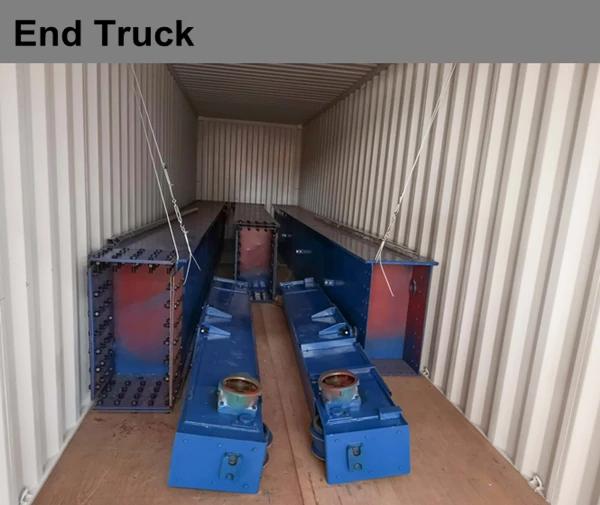

- Main GirderSupporting LegEnd TruckElectric HoistCable SpringRunway
Design & Construction
- Model Type
- MH Model
- Girder Configuration
- Single Girder
- Movement System
- Legs traveling on fixed floor rails
Logistics & Installation

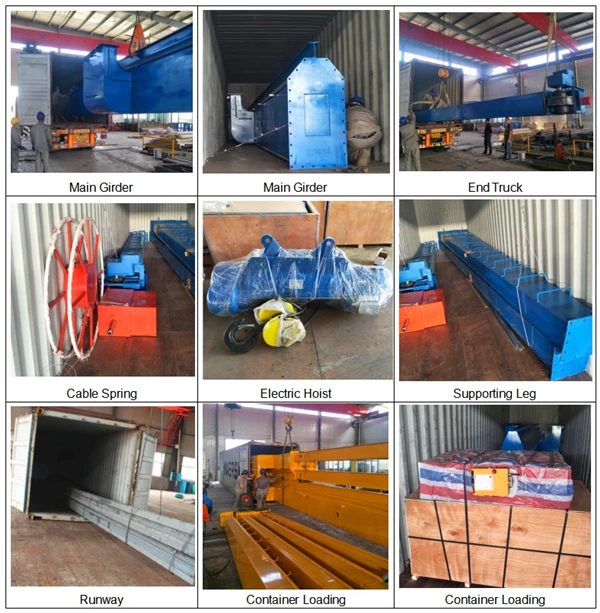

- Shipping Method
- Container Loading
Manufacturing Capabilities
Fabrication Processes
- Welding Line
- Shearing
- Bending
- Punching
- Drilling
- Sawing
