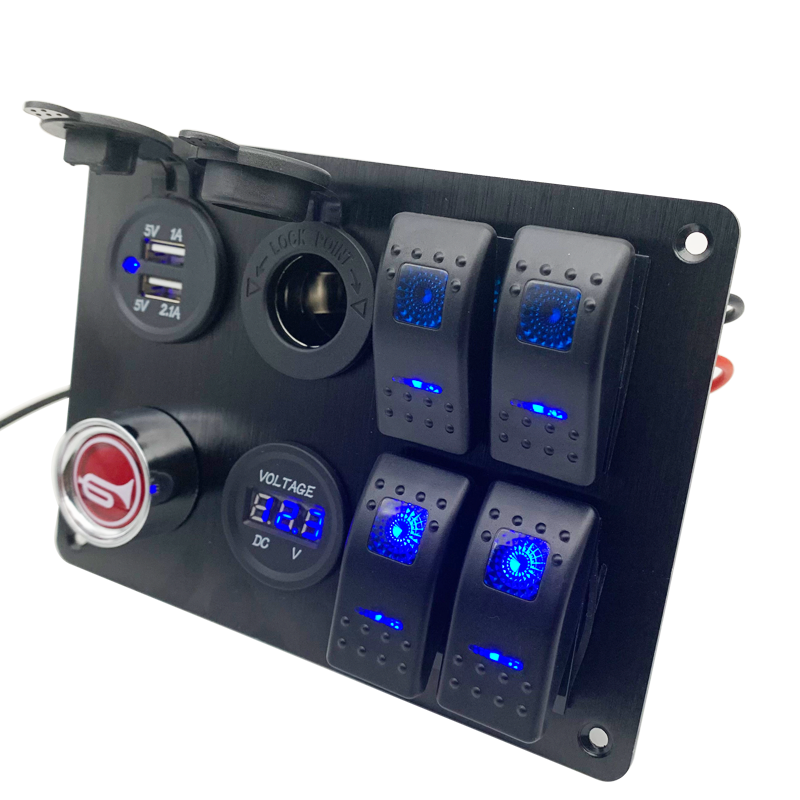

4-Gang Waterproof Rocker Switch Panel with Blue LED
This 4-gang rocker switch panel is designed for 12V and 24V systems. It features waterproof switches with blue LED indicators for easy visibility.
Technical Specifications
Product Overview
Versatile 4-Gang Control Panel

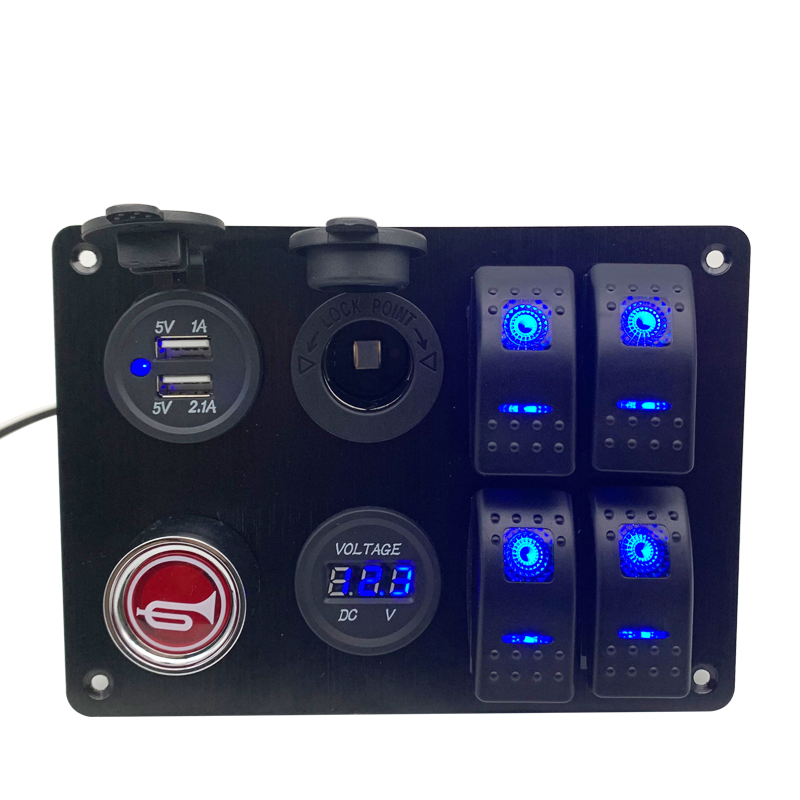

This waterproof 4-gang rocker switch panel is engineered for demanding marine and automotive environments, including boats, RVs, and trucks. Constructed from a durable blend of aluminum and ABS, it features blue LED illumination for clear status indication in low-light conditions. The integrated design includes dual USB charging ports, a digital voltmeter for real-time monitoring, and a 12V power socket, providing a centralized solution for power management and accessory control.
Electrical Specifications
Rated Current
20 A
at 12V
10 A
at 24V
- Operating Voltage
- 12V DC24V DC
- Switch Configuration
- SPST ON-OFF Rocker
- Terminal Pins
- 5
Integrated Features

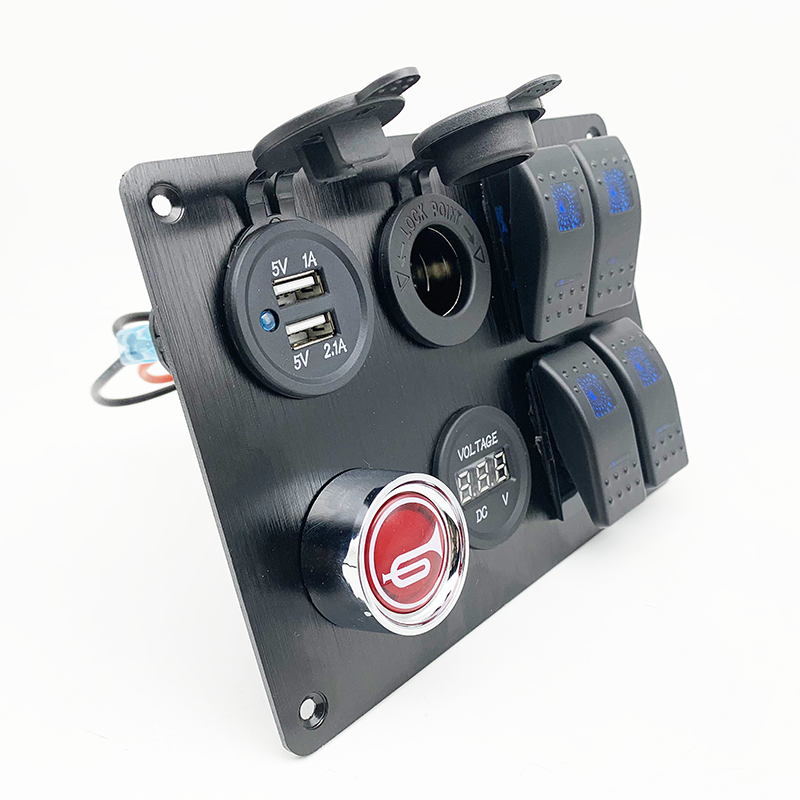

USB Charging Ports
- 5V 1A USB Port
- 5V 2.1A High-Speed Port
Monitoring & Power

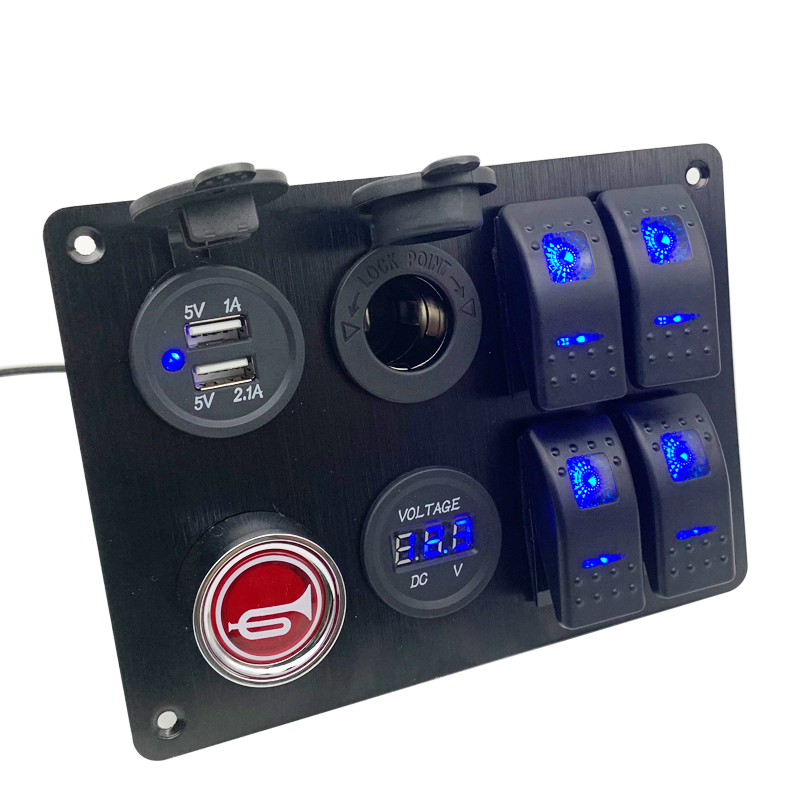

- Digital Voltmeter (DC V)
- 12V/24V Power Socket
- Horn Button
Safety Features

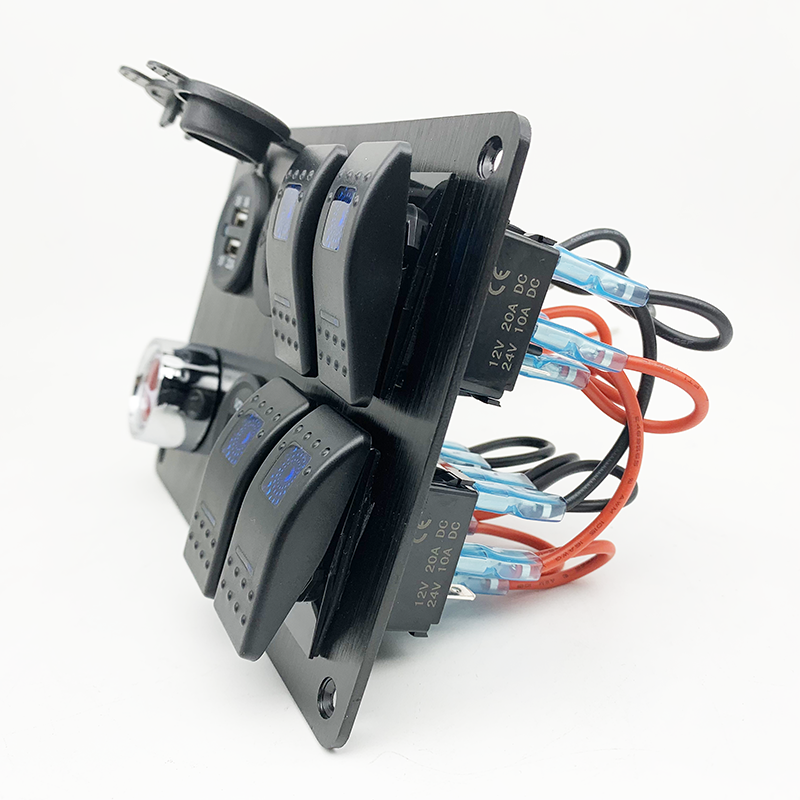

- Replaceable Fuses
- Over-heating Protection
- Over-current Protection
- Short Circuit Protection
- Over-charging Protection
Physical Construction
Illumination Color
Blue LED
- Materials
- AluminumABS Plastic
- Panel Finish
- Local Tyrant Gold
- Operating Temperature
- -25 to +80℃
Application
Typical Controlled Devices
- LED Light Bars
- Work Lights
- Fog Lamps
- Headlights
- Taillights
- Auxiliary Lamps
- Compatible Applications
- BoatMarineYachtRVTruckBusTrailerJeepMotorcycle
