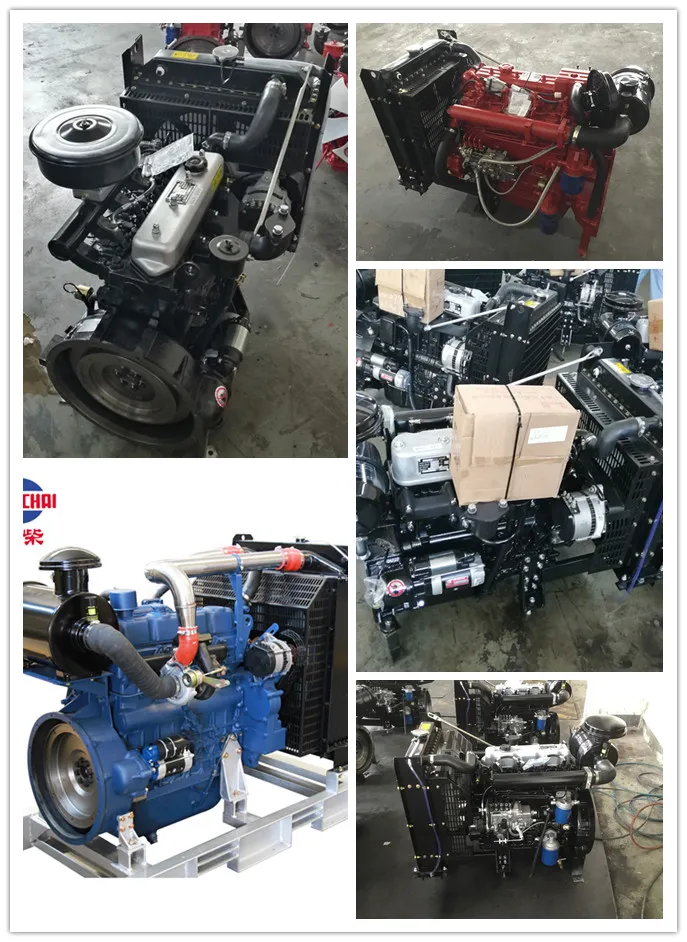

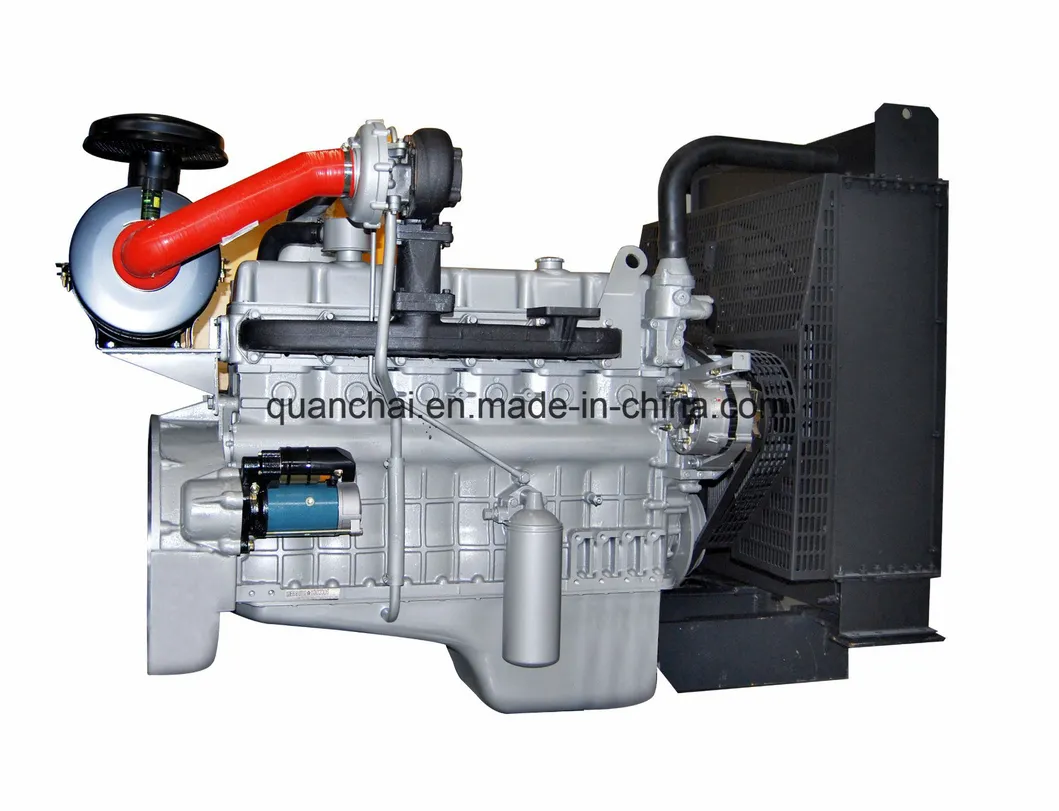

4-Cylinder Water-Cooled Diesel Engine
This 4-cylinder diesel engine features a four-stroke design and wet cylinder liner type. It is water-cooled and suitable for generator sets.
Technical Specifications
Overview
Reliable 4-Cylinder Diesel Power
This 4-cylinder water-cooled diesel engine is engineered specifically for high-performance generator sets. Featuring a vertical in-line configuration and a four-stroke design, it provides a stable and efficient power source for industrial and standby applications. With its robust wet cylinder liner construction and natural intake system, it ensures long-term durability and simplified maintenance for professional operators.
Performance Metrics
Rated Performance
50 kW
Rated Output
1,500 r/min
Rated Speed
55 kW
Standby Power
Engine Configuration
- Model
- 4JR3ABD
- Architecture
- VerticalIn-lineFour-StrokeNatural IntakeWater-Cooled
- Cylinders & Bore
- 4-108 x 135 mm
- Displacement
- 4.94 L
- Cylinder Liner Type
- Wet
Technical Specifications
Combustion Chamber
Direct Injection
- Fuel Consumption Ratio
- 220 g/kw.h
- Smooth Speed Ratio
- ≤ 5%
Mechanical Interface
Flywheel & Housing
| Component | Specification |
|---|---|
| Flywheel Housing | SAE 3# |
| Flywheel Type | SAE 11.5" |
| Ring Gear Teeth | 130 |

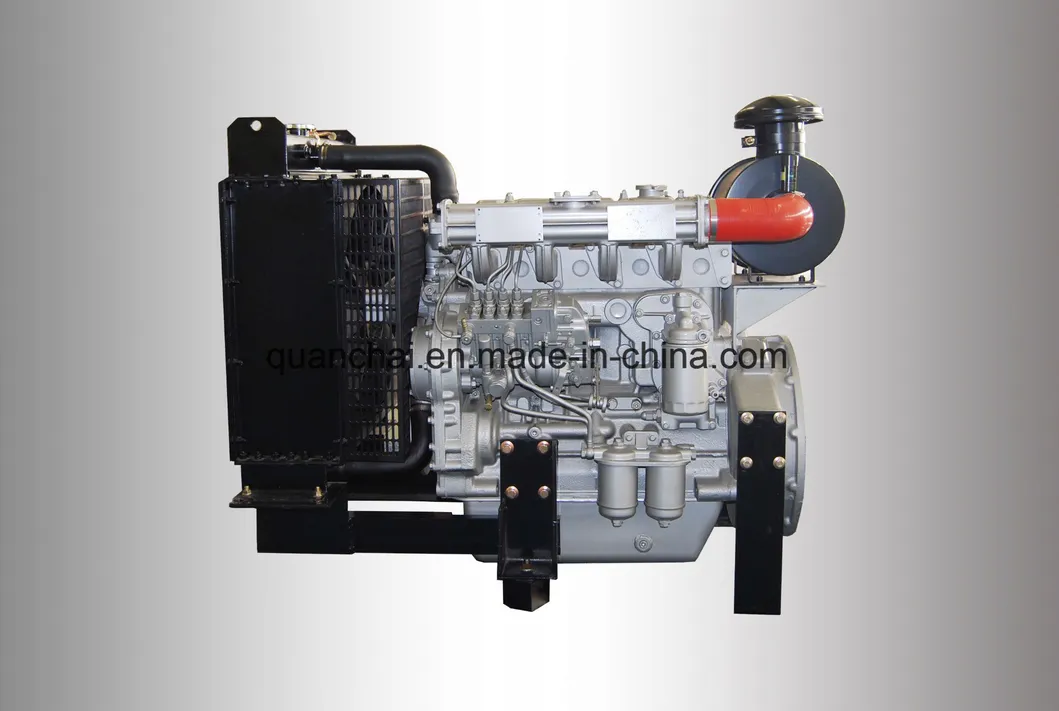

Cooling System
- Fan Diameter
- 510 mm
Logistics

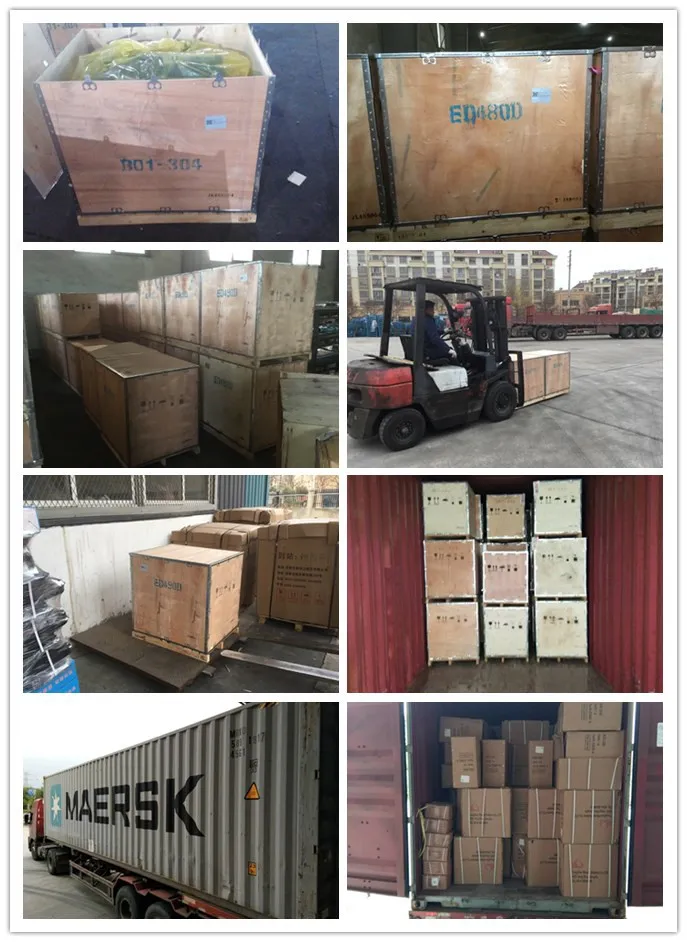

Shipping Format
- Secure wooden crate packaging
- Containerized shipping compatible
- Industrial protective coating
