315mm-355mm HDPE PE Pipe Butt Fusion Welding Machine
This hydraulic butt fusion welding machine joins HDPE and PE pipes. It is suitable for 315mm and 355mm pipe sizes, ensuring strong and reliable welds.
Technical Specifications
Product Overview
High-Performance Hydraulic Butt Fusion Welding

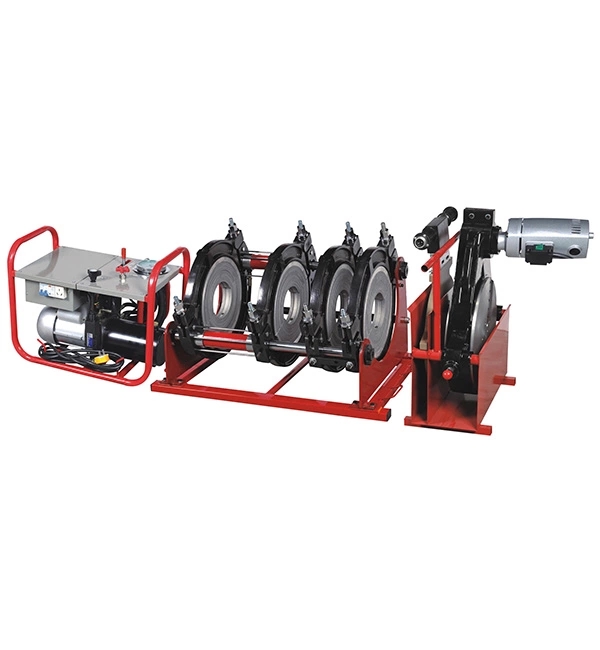

The HDC355 is a robust hydraulic butt fusion welding machine specifically engineered for joining HDPE and PE pipes with precision. It features a comprehensive system including a hydraulic station, milling cutter, and heating plate to ensure leak-proof, high-strength joints that meet or exceed the pipe's original integrity. This versatile machine is ideal for critical infrastructure projects in water supply, gas distribution, and industrial piping.
Key Performance Metrics
Key Metrics
4.95 kW
Total Power
220 V
Voltage
210 kg
Gross Weight
0.74 m³
Total Volume
Technical Specifications
Compatible Materials
HDPEPEPolyethylene
- Welding Range (Diameter)
- 160mm180mm200mm225mm250mm280mm315mm355mm
Component Details
System Components & Dimensions
| Component | Dimensions (cm) | Weight (kg) |
|---|---|---|
| Machine Rack | 94 x 64 x 62 | 111.5 |
| Milling Cutter | 60 x 39 x 63 | 32 |
| Heating Plate | 50 x 6 x 57 | 10.3 |
| Hydraulic Station | 58 x 47 x 47 | 41.5 |
| Support Basket | 52.5 x 28.5 x 59 | 5.9 |
Operational Process
Welding Procedure
- Fix pipes in the frame with a 5cm-8cm gap
- Use milling cutter to smooth and square pipe ends
- Insert heating plate once stable temperature is reached
- Apply hydraulic pressure for fusion according to pipe size
- Allow joint to cool naturally to ensure maximum weld strength
Logistics
Packaging Details
- Package 1: 99 x 65 x 61 cm
- Package 2: 74 x 71 x 66 cm
- Total Net Weight: 201.2 kg
