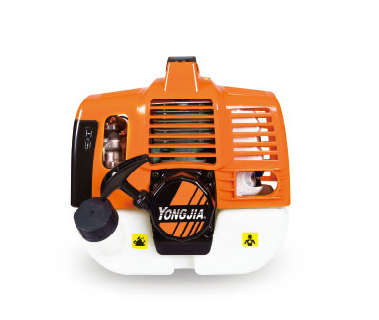

26cc Gasoline Engine - 0.7kW Power Output
This gasoline engine has a 26cc displacement and delivers 0.7kW of power. It features a 34mm cylinder diameter and a 40:1 fuel mixture ratio.
Technical Specifications
Overview
High-Performance 26cc Gasoline Engine
This 26cc gasoline engine is engineered for reliability and consistent performance in portable machinery. Featuring a robust construction, it is designed for demanding conditions, making it an ideal power source for trimmers, brush cutters, and similar equipment. With a diaphragm-type carburetor and a 0.7kW power output, it ensures efficient fuel delivery and dependable operation.
Technical Specifications
Performance Metrics
0.7 kW
Standard Power
7,000 r/min
Rated Speed
26 cc
Displacement
- Model Number
- 1E34FN
- Cylinder Diameter
- 34 mm
Fuel System
- Fuel Tank Capacity
- 0.7 L
- Mixed Fuel Ratio
- 40:1 (FC Grade)
- Carburetor Form
- Diaphragm
Physical Dimensions
- Weight
- 4 kg
- Packing Measurement
- 320 x 255 x 255 mm
Applications
- Suitable Applications
- TrimmersBrush CuttersPortable Power Equipment
