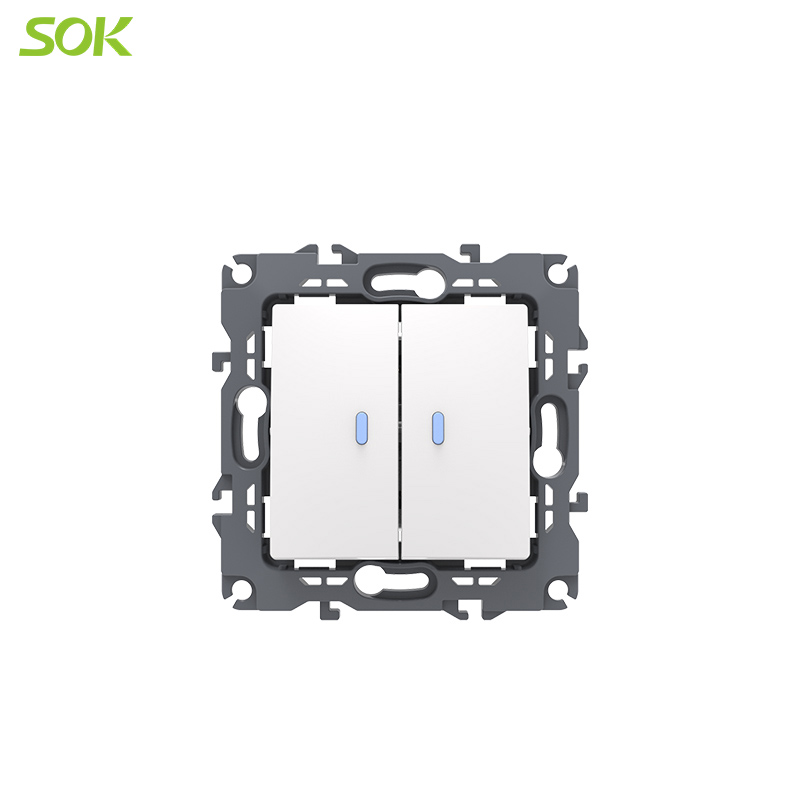

2-Gang 2-Way LED Indicator Wall Switch with Screwless Terminals
This 2-gang 2-way wall switch features LED indicators and screwless terminals. The back housing is made of fire-resistant PC material and can withstand high temperatures.
Technical Specifications
Overview
Premium 2-Gang 2-Way LED Wall Switch

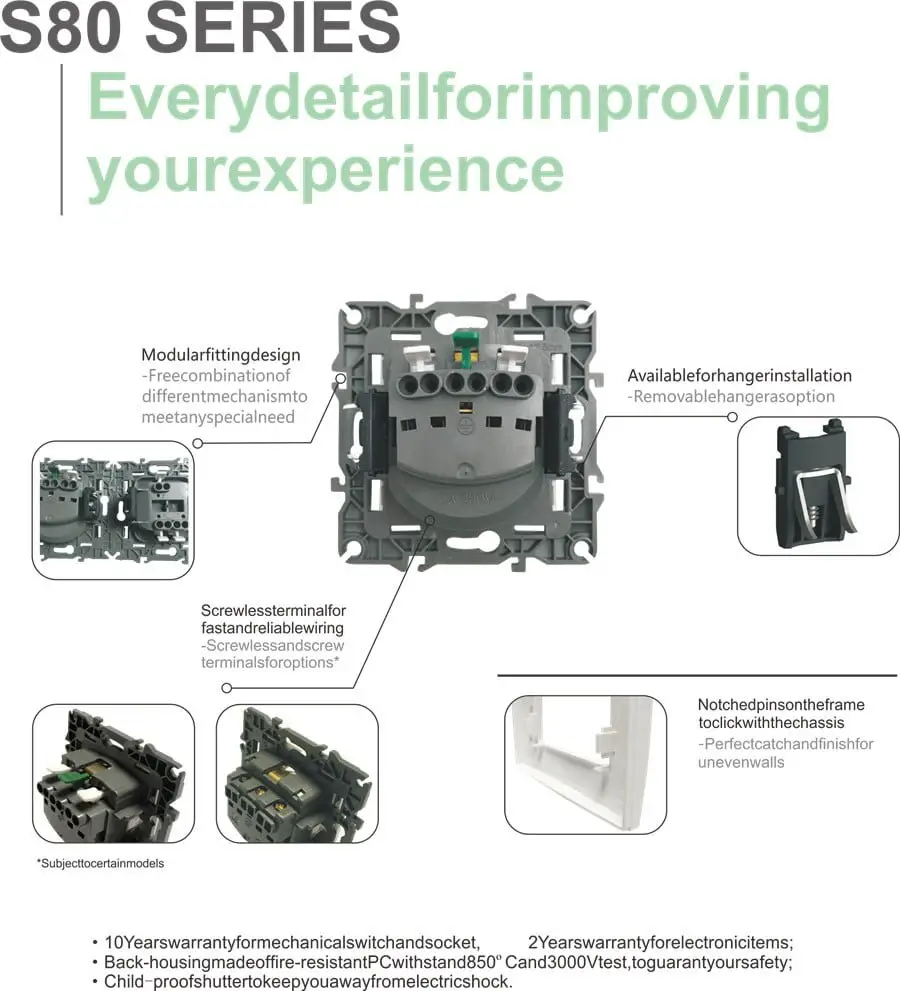

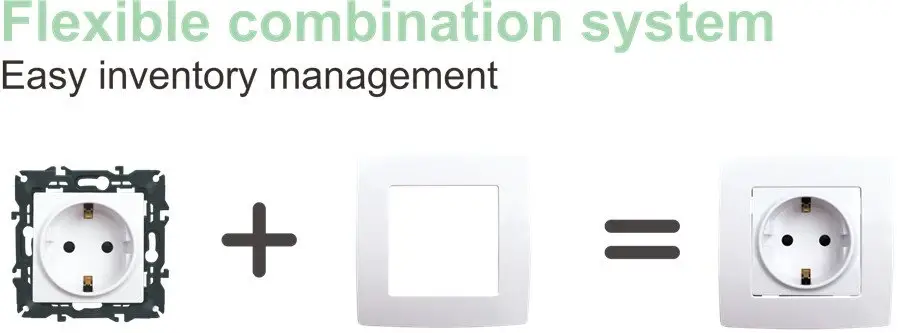

This S80 series rocker switch combines a sleek, classic aesthetic with advanced safety features, including a fire-resistant PC back-housing capable of withstanding 850°C. Designed for versatility, it features screwless terminals for rapid, reliable wiring and integrated LED indicators for clear status feedback. The modular design ensures a stable fit and long-term durability, making it an ideal choice for both residential and professional B2B electrical installations.
Key Performance Metrics
Electrical Performance
10 AX
Rated Current
250 V AC
Rated Voltage
10,000 Cycles
Electrical Durability
Technical Specifications
Protection Rating
IP20
- Model Number
- S80/L2/2/D
- Component Type
- Rocker Switch
- Network Frequency
- 50/60 Hz
- Dielectric Strength
- 2000 V
- Opening Distance
- > 3 mm
Design & Materials
Materials
- Transparent PC (Polycarbonate) buttons
- High-temperature gray flame retardant back housing (850°C)
- High quality brass metal terminal posts
- K200 silver contact materials for L terminal rivets
- Color Options

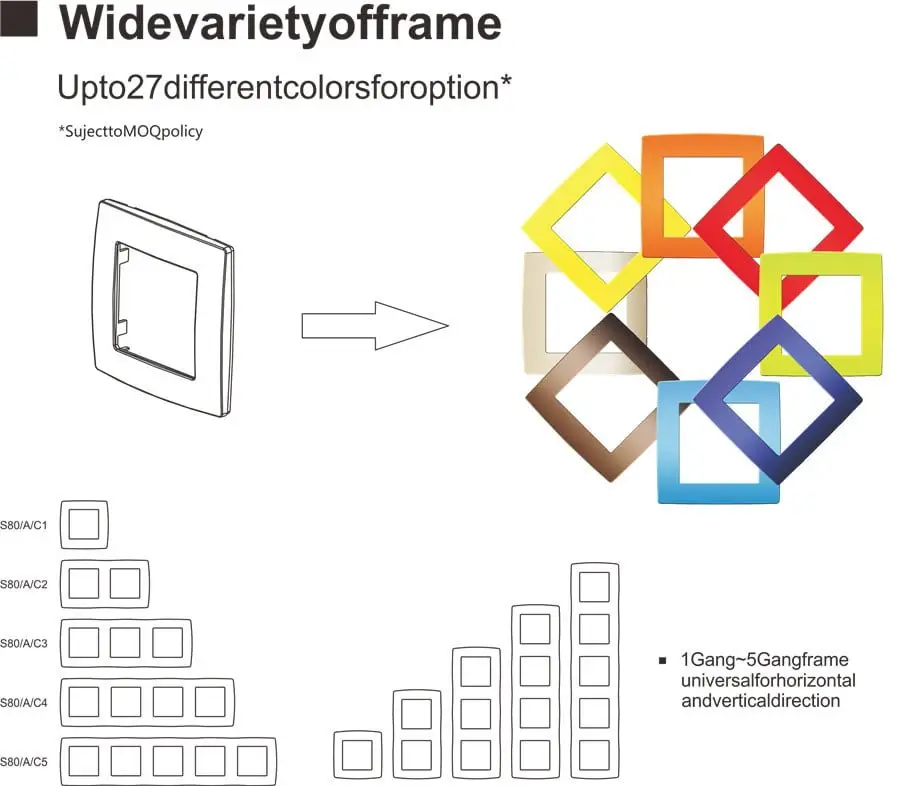

- White or Customized (Up to 27 different colors available)
Installation & Wiring
Clamping Connection Capacity
- 0 to 2.5 mm² for rigid cables
- 0 to 2.5 mm² for flexible cables
- Connection Terminals
- Screwless terminals (Quick wiring)
- Wire Stripping Length
- 12.5 mm
Compliance & Safety
- Standards
- EN/IEC 60669-1
- Certifications
- TUVCEROHS
Dimensions
Mounting Details
| Dimension Type | Measurement |
|---|---|
| Front Face | 82.0 x 82.0 mm |
| Depth | 42.4 mm |
| Mounting Hole Distance | 60 mm / 124 mm |
