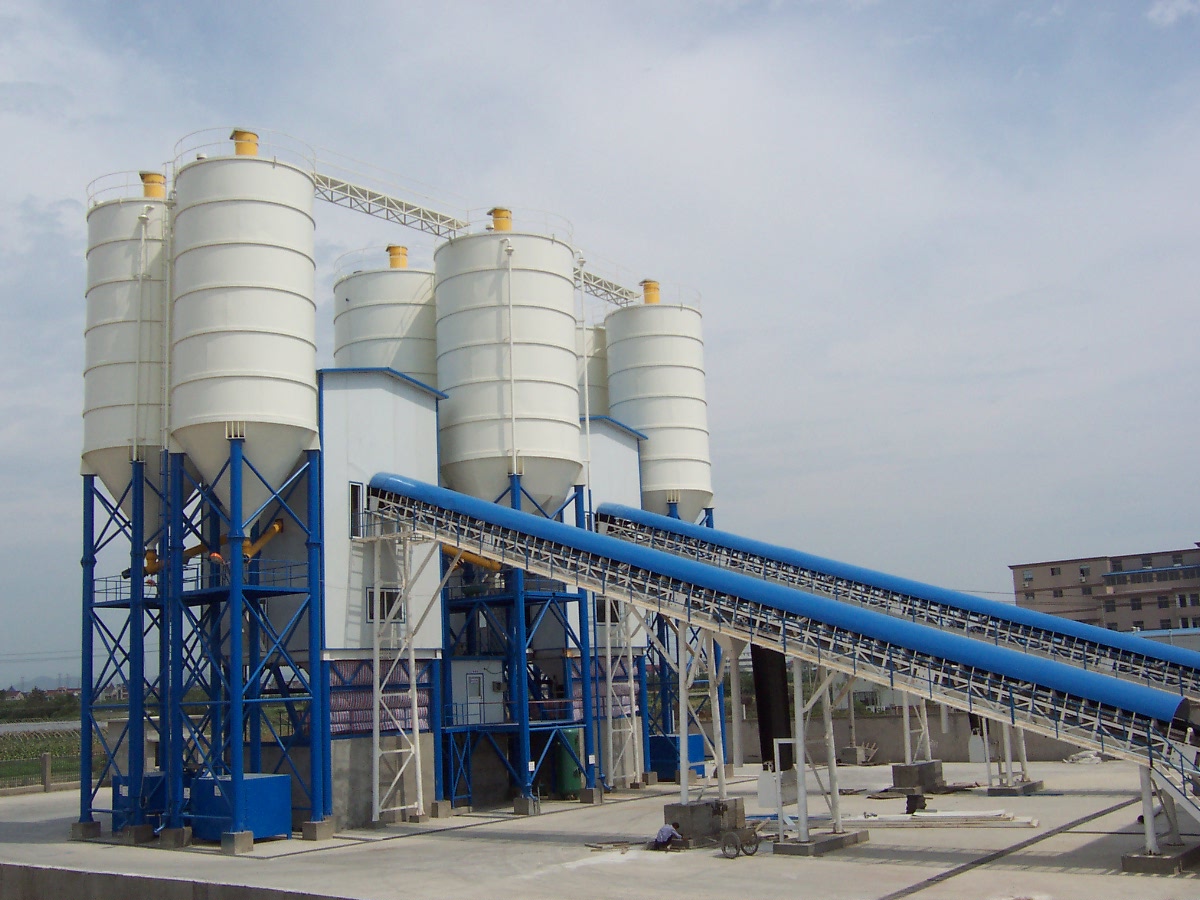

180 m3/h Concrete Batching Plant with JS3000 Mixer
This concrete batching plant has a capacity of 180m3/h. It features a JS3000 concrete mixer.
Technical Specifications
Overview
High-Efficiency Concrete Production
The HZS180 Concrete Batching Plant is a high-capacity industrial solution designed for large-scale construction projects requiring consistent, high-volume concrete output. Featuring a robust JS3000 mixer and a fully automatic central control system, this plant ensures precision weighing and efficient material handling. With a theoretical productivity of 180m³/h, it is engineered for reliability and performance in demanding environments.
Performance Metrics
Theoretical Productivity
180 m³/h
Productivity
- Total Power
- 205 KW
- Mixer Type
- JS3000
Feeding and Storage
- Aggregate Bins
- 4 x 18m³
- Feeding Method
- Conveyor belt
- Max Aggregate Diameter
- 80 mm
Weighing Precision
Weighing Accuracy Table
| Material | Capacity | Tolerance |
|---|---|---|
| Aggregate | 2x4000kg | ±2% |
| Cement | 1800kg | ±1% |
| Fly-ash | 800kg | ±1% |
| Water | 800kg | ±1% |
| Additive | 50kg | ±1% |
Physical Dimensions
- Operating Dimensions (LxWxH)
- 58.5m x 7m x 12.9m
- Total Weight
- 77 T
- Discharging Height
- 3.8 m
System Features
Control System
Fully automaticCentral control
Optional Components
- Cement silo (client demand)
- Cement screw (φ273 per silo)
