Technical Specifications
Product Overview
Versatile Fiber Laser Cutting Solution

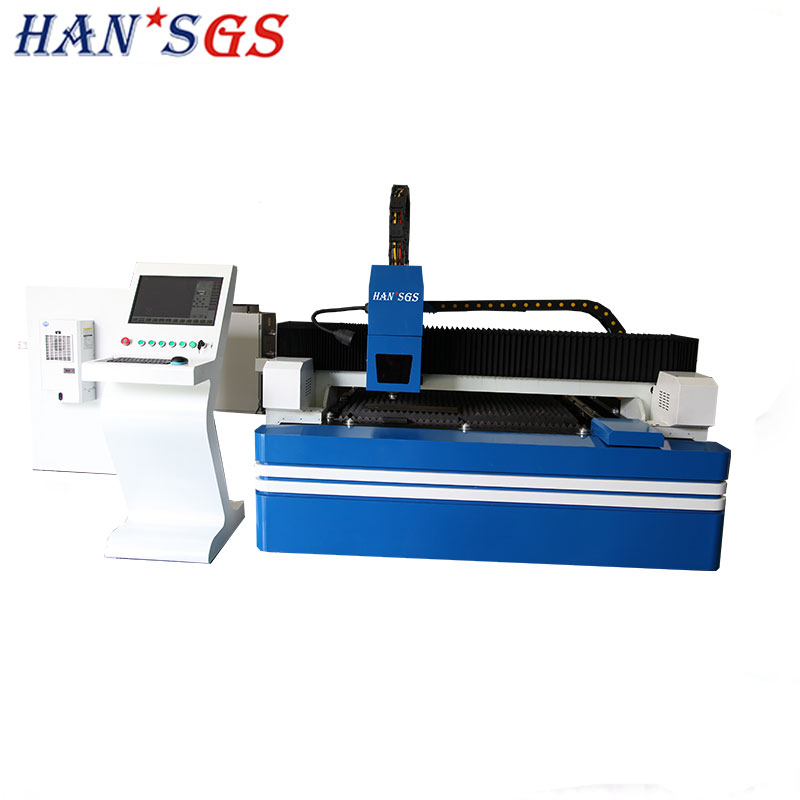

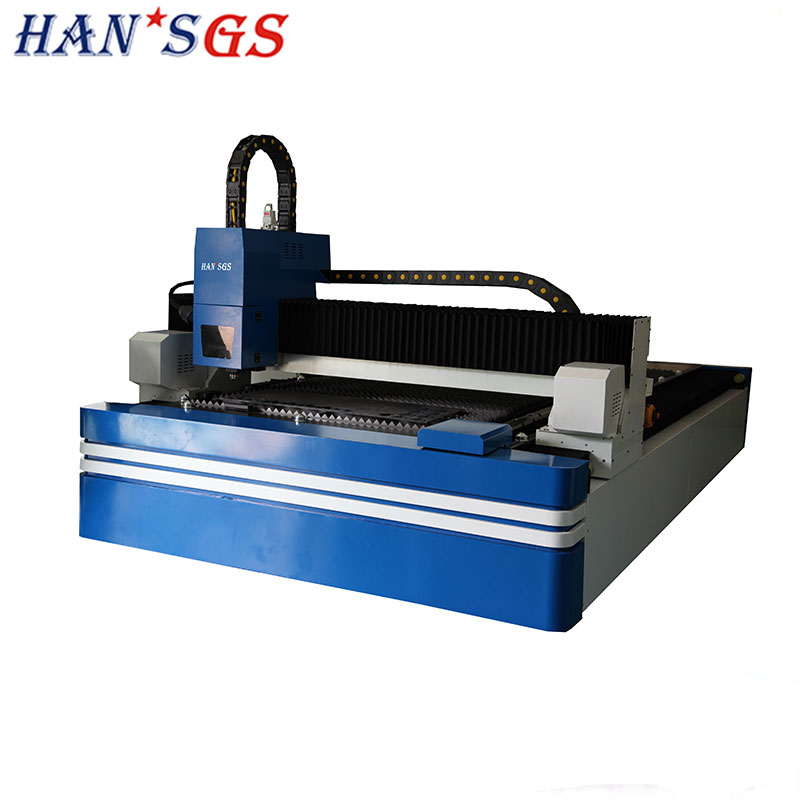

The GS-LFD3015 is a dual-purpose fiber laser cutting machine designed to handle both flat plate and pipe materials with high precision. This multi-purpose system eliminates the need for secondary processing by delivering clean, one-time molding for various shapes including round, square, and channel steel. Its advanced design focuses on material efficiency and rapid development speeds, ensuring a fast return on investment for metal fabrication businesses.
Key Performance Metrics
Performance Highlights
2,000 W
Max Laser Power
3,000 mm
Working Length
1,500 mm
Working Width
Technical Specifications
- Model Identifier
- GS-LFD3015 with small pipe cutting device
- Laser Source Medium
- Fiber
- Laser Power Range
- 500W - 2000W
- Cutting Range (L*W)
- 3000mm × 1500mm
Material Capabilities
Compatible Pipe Profiles
- Round Tube
- Square Tube
- Square Steel
- Flat Iron
- Channel Steel
- Supported Materials
- SteelStainless SteelAluminumBrassPlate MetalTubular Metal
Operational Advantages
Efficiency Features
- High precision molding without follow-up treatment
- No mold requirements for cost savings
- Visual discharge for close fit material saving
- Dual-purpose flat and pipe cutting
Industry Applications
Target Industries
AutomotiveAerospaceGeneral ManufacturingMetal Fabrication
