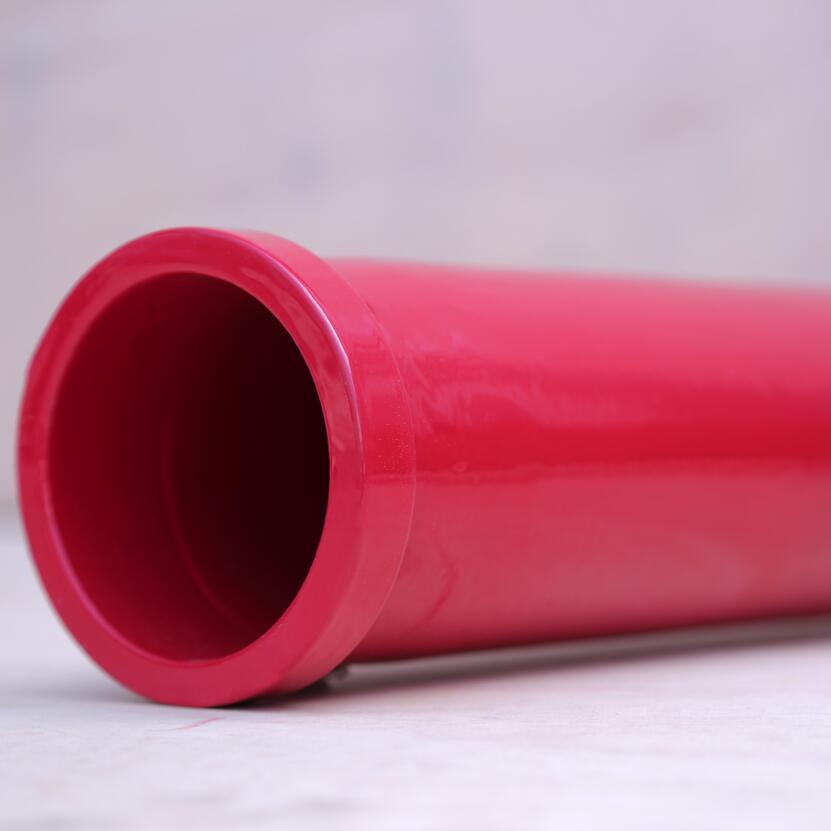

148mm Concrete Pumping Pipe
This 148mm concrete pumping pipe is designed for efficient concrete transfer. Constructed from robust materials, it offers excellent resistance to abrasion and high pressure, contributing to extended service life.
Technical Specifications
Product Overview
Professional Concrete Pumping Performance
This 148mm concrete pumping pipe is engineered for high-performance concrete transfer in demanding construction environments. Constructed from high-quality 45Mn2 seamless steel, it offers exceptional durability, abrasion resistance, and high-pressure handling. These pipes are designed for seamless integration into existing pump systems, ensuring reliable material flow and reduced operational downtime on site.
Technical Specifications
Pipe Dimensions
133 mm
Outer Diameter
125 mm
Inner Diameter
3,000 mm
Length
4.5 mm
Max Wall Thickness
Weight Specifications
| Component | Weight |
|---|---|
| Pipe | 14.2 kg/m |
| Flange | 1.25 kg |
- Material Composition
- 45Mn2 Seamless Steel
Flange & Connectivity
- Flange Diameter
- 148 mm
Features
- Key Features
- Seamless ConstructionHigh Abrasion ResistanceHigh Pressure RatedStandardized Compatibility
