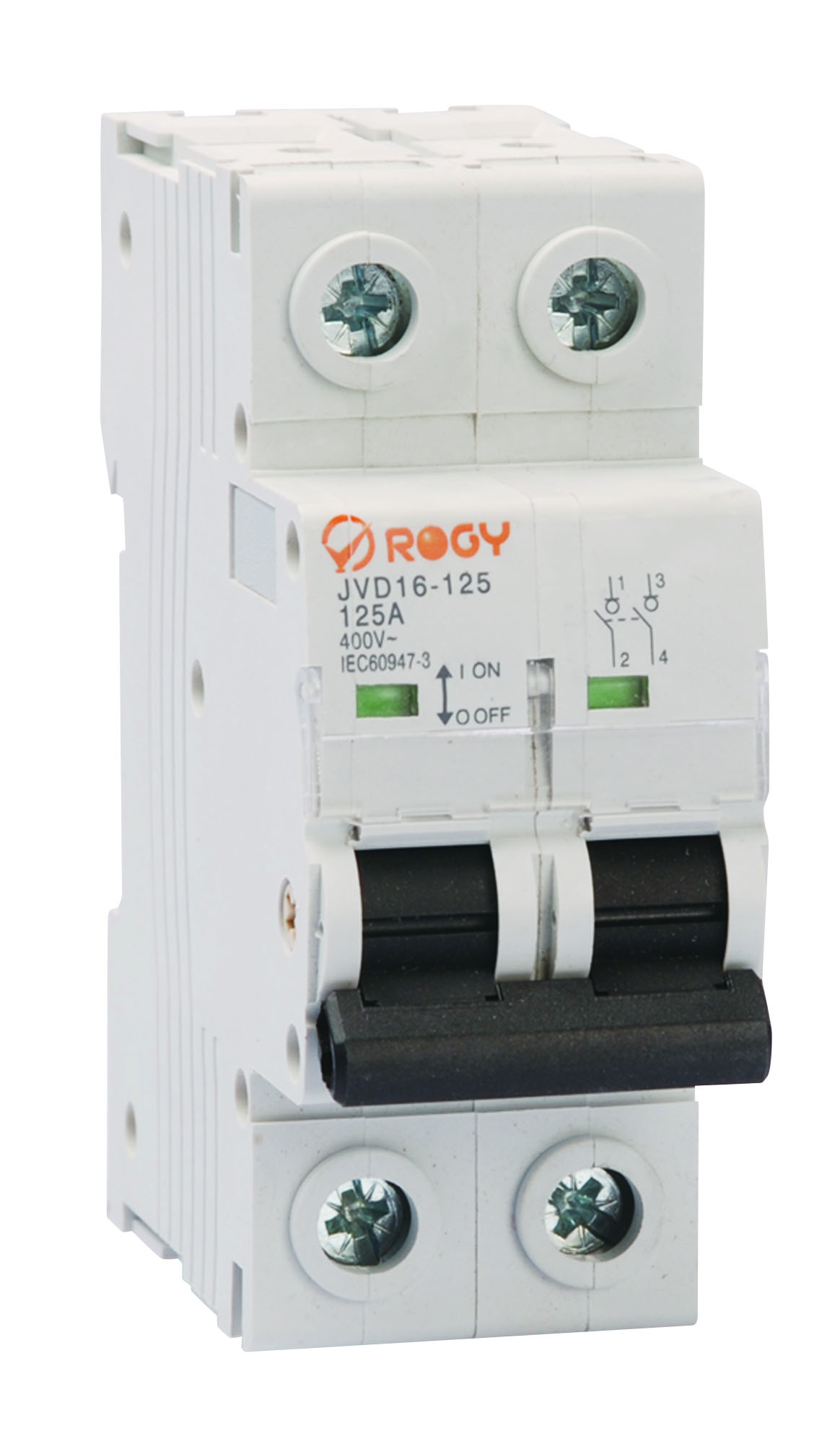

125A Switch Disconnector
This switch disconnector is designed for circuit protection and isolation in electrical systems. It is rated for 125A and suitable for 400V AC systems.
Technical Specifications
Product Overview
Professional Grade Switch Disconnector
This high-capacity switch disconnector is designed for reliable load switching in residential, commercial, and industrial electrical installations. It features rapid stored-energy operation and high short-circuit withstand capabilities, ensuring safe isolation under load. With contact position indication and padlocking compatibility, it offers both operational efficiency and enhanced safety for maintenance professionals.
Technical Specifications
Rated Current
125 A
Rated Current
- Rated Voltage
- 230/400V AC
- Frequency
- 50 Hz
Performance Metrics
- Short-circuit Making Capacity
- 6 kA
- Rated Withstand Current
- 2 kA
- Electro-mechanical Endurance
- 10000 cycles
Physical Characteristics
- Available Pole Configurations
- 1 Pole2 Pole3 Pole4 Pole
Features
Standard Features
- Load break capability
- Padlockable device
- Clear contact position indication
- Quick energy release operation
- DIN rail mounting
