1250mm Corrugated Roofing Sheet Roll Forming Machine

This roll forming machine produces corrugated galvanized steel sheets. It supports remote services.

Request a Quote Download PDFPDF

galvanized steel sheet corrugated roll forming machine 1250mm roofing roll forming machine - Image 1

Technical Specifications

Overview

High-Efficiency Roofing Solution

This 1250mm roll forming machine is engineered for the precise and continuous production of corrugated galvanized steel sheets. Designed for industrial roofing and wall cladding applications, it combines robust construction with an intuitive PLC-based control system. Its user-friendly interface supports both touch screen and manual button operation, ensuring streamlined production and consistent output quality.

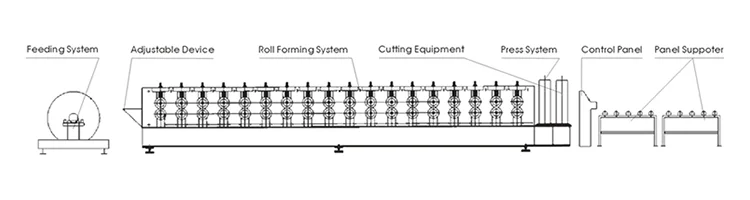

Diagram showing the main components of the roll forming machine including feeding and cutting systems — System component layout for the corrugated roll forming machine.

Technical Specifications

Performance Metrics

15 m/min

Max Forming Speed

4 kW

Main Motor Power

12 MPa

Hydraulic Pressure

Wide shot of the corrugated roofing machine in an industrial setting — Robust frame construction designed for high-volume industrial production.

Material & Compatibility

Material Specifications

Parameter	Detail
Compatible Material	Pre-painted & galvanized steel coil
Thickness Range	0.3 - 0.7 mm
Yield Stress	Q235-345 MPa

Machine setup for producing corrugated roofing sheets — Versatile setup capable of handling various steel gauges.

Mechanical & Electrical

System Components

Roller Material: #45 steel with hard chrome treatment
Drive System: Chain transmission
Control System: PLC
Operation Interface: Touch screen and button
Hydraulic Station Power: 3 kW

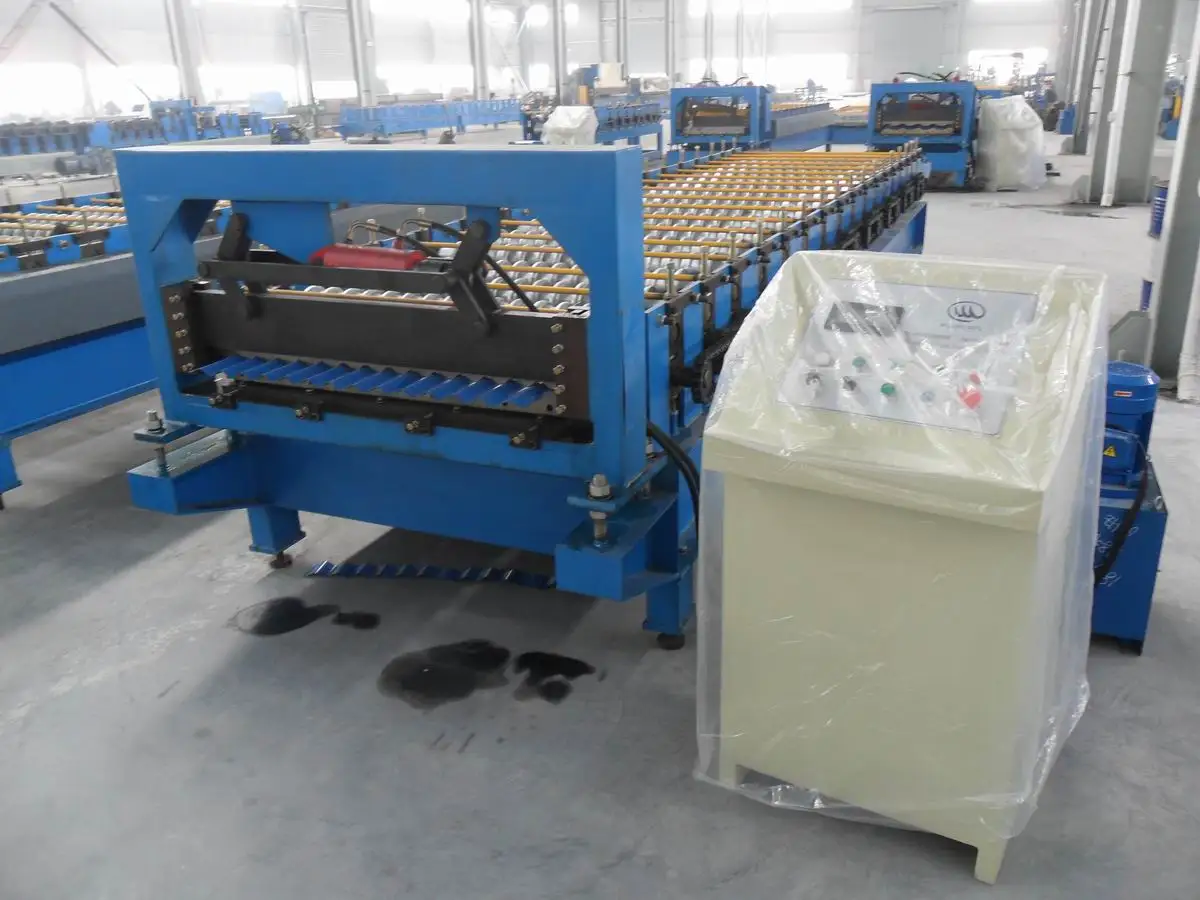

Close up of the control panel and hydraulic system of the industrial roll forming machine — Integrated control panel and hydraulic drive system.

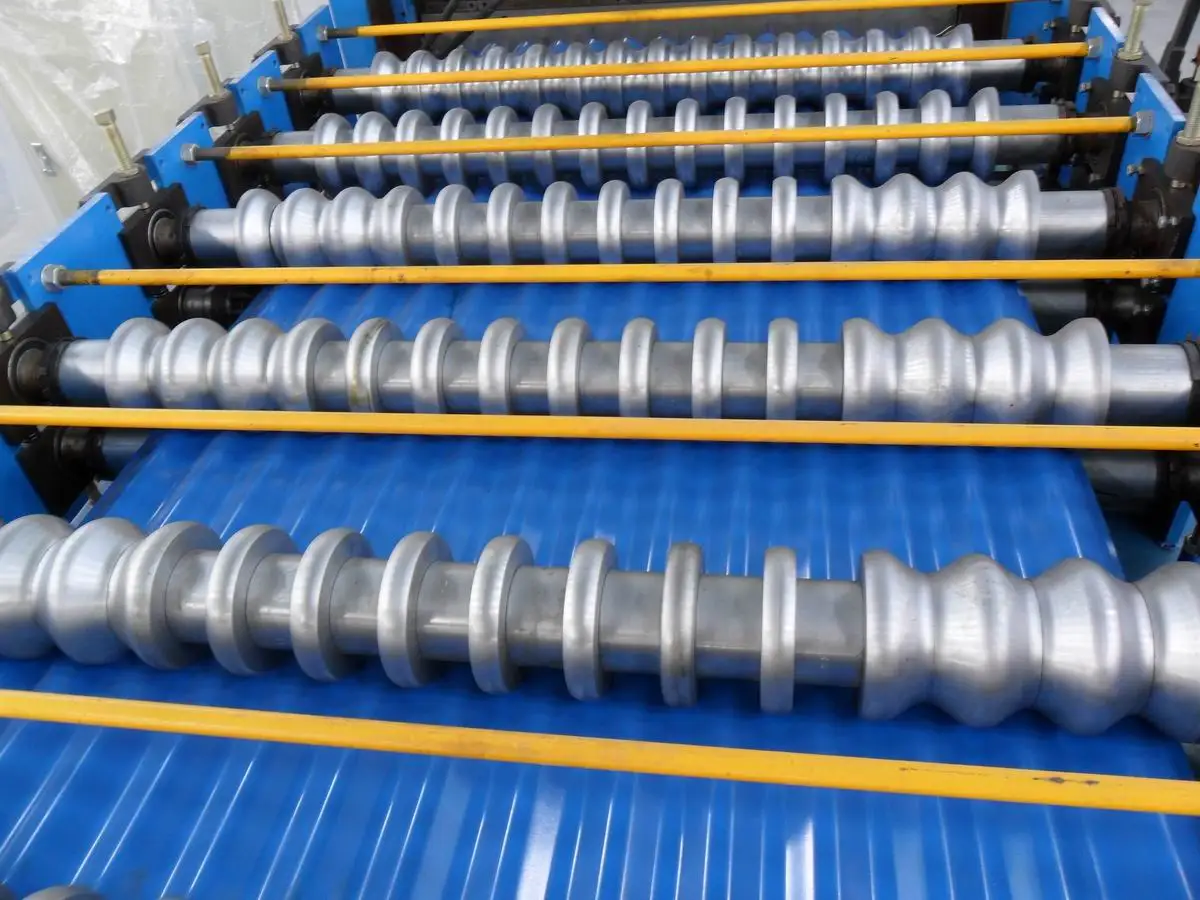

Side view of the roll forming machine showing the roller stations — Precision-engineered roller stations for consistent profile shaping.

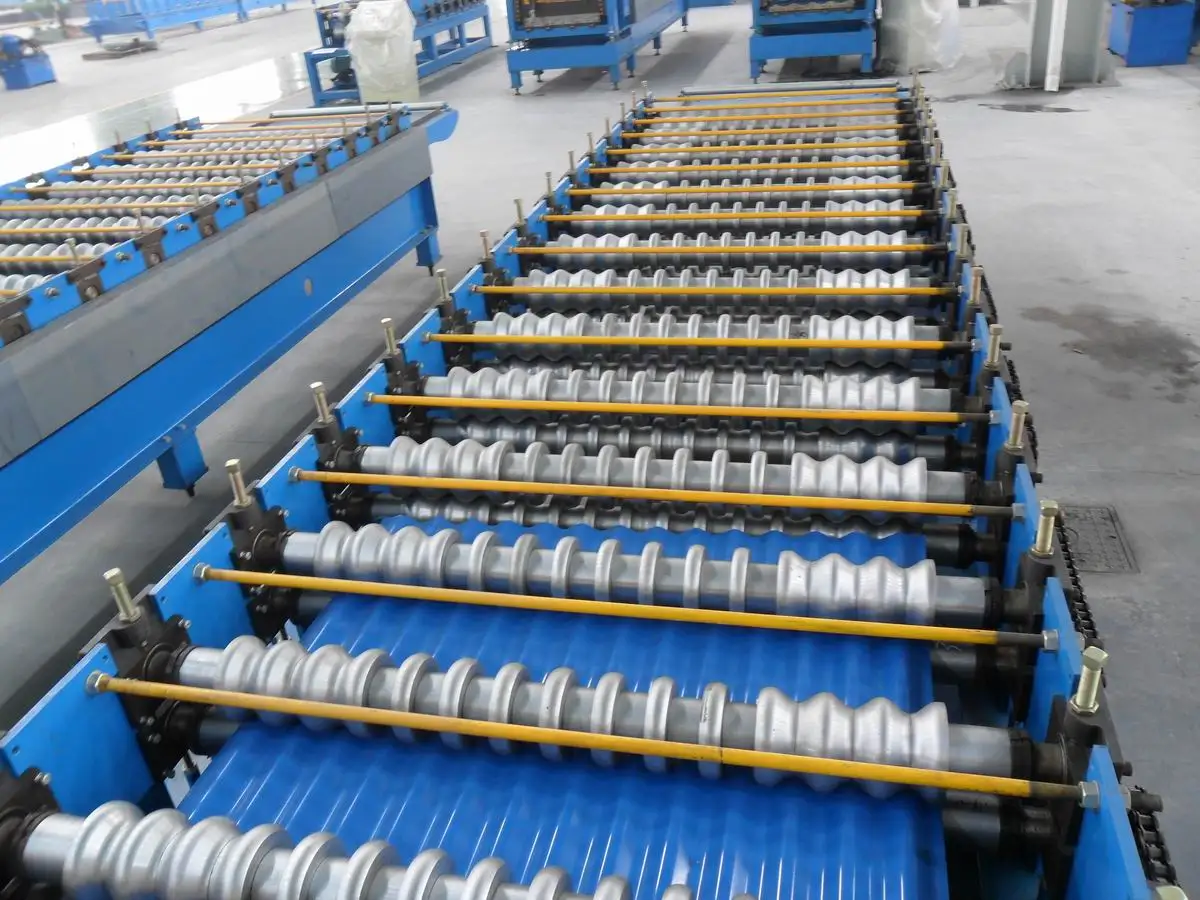

Detailed view of the metal forming rollers — Hard chrome treated rollers ensure durability and precision.

Physical Dimensions

Physical Dimensions: 8500 x 1500 x 1500 mm
Machine Weight: 6000 kg

Certifications & Compliance

Certifications

CE CertifiedSGS Compliant
