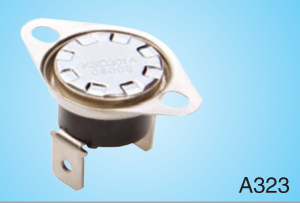

1/2" Snap-Action Bimetallic Thermostat
This 1/2" snap-action thermostat is designed for temperature control applications. It utilizes a bimetallic disc for accurate temperature sensing and rapid switching.
Technical Specifications
Overview
High-Performance 1/2" Snap-Action Thermostat
This bimetallic thermostat is a versatile temperature control solution designed to replace TOD 36T series components. It features a reliable snap-action mechanism for rapid switching and precise regulation across a wide range of thermal management applications. With multiple electrical ratings and robust construction options, it provides maximum design flexibility for both heating and cooling systems.

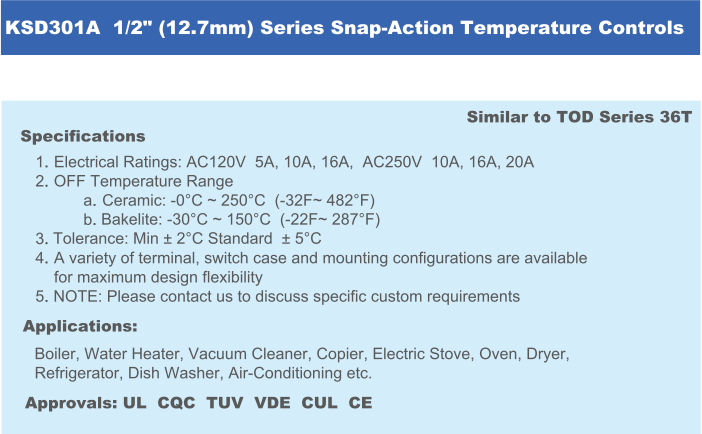

Technical Specifications
Electrical Ratings
| Voltage (AC) | Current Options |
|---|---|
| 120V | 5A, 10A, 16A |
| 250V | 10A, 16A, 20A |
OFF Temperature Range
| Material | Celsius Range | Fahrenheit Range |
|---|---|---|
| Bakelite | -30°C to 150°C | -22°F to 287°F |
| Ceramic | 0°C to 250°C | 32°F to 482°F |
Temperature Tolerance
2 ±°C
Minimum Tolerance
5 ±°C
Standard Tolerance
Design & Installation
Configuration Options
- Various terminal configurations
- Multiple switch case options
- Diverse mounting configurations
- Form Factor
- 1/2" (12.7mm) Diameter
- Compatibility
- Replacement for TOD 36T series
Applications
- Common Applications
- BoilerWater HeaterVacuum CleanerCopierElectric StoveOvenDryerRefrigeratorDish WasherAir-ConditioningHeat Exchangers
Compliance & Safety
Certifications & Approvals
ULCQCTUVVDECULCE
