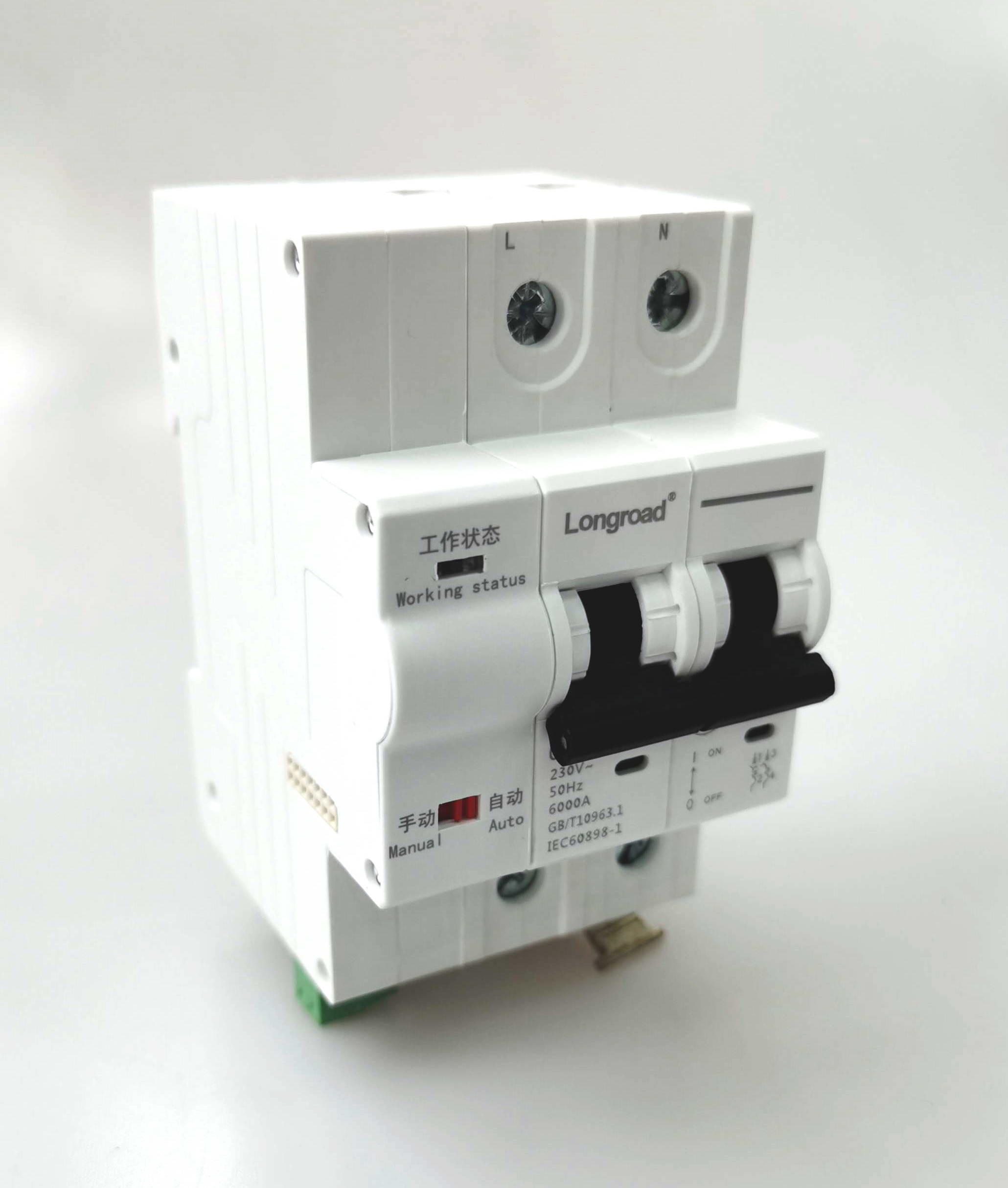

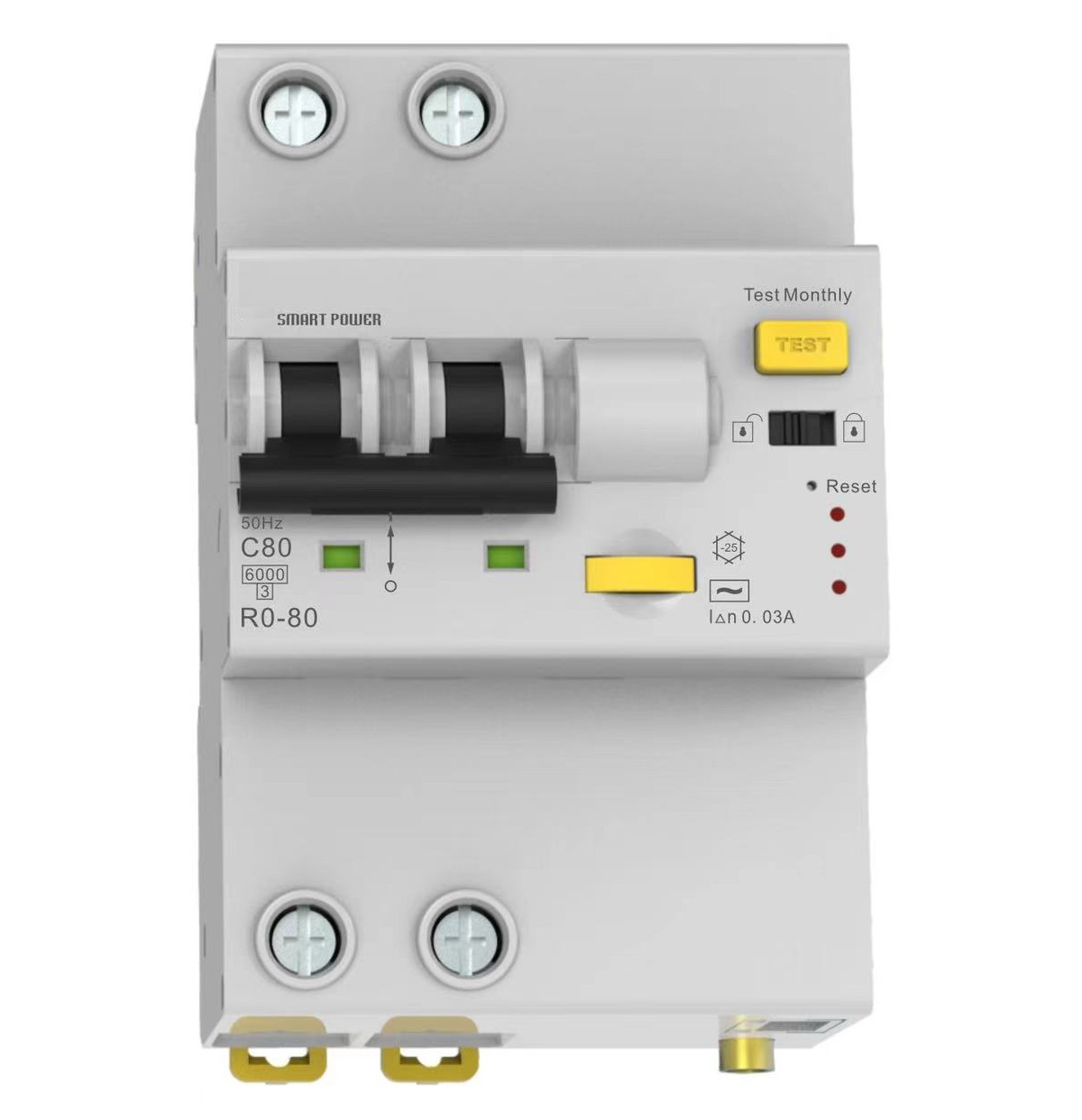

Wi-Fi Enabled Smart Miniature Circuit Breaker
This smart circuit breaker allows for remote control of ON/OFF switching. It provides short-circuit breaking, overload, over-voltage, under-voltage protection, and electricity consumption metering.
Technical Specifications
Product Overview
Smart Electrical Protection and Control
This Wi-Fi enabled smart miniature circuit breaker integrates remote monitoring and automated control into traditional circuit protection. Designed for professional electrical systems, it supports both manual and app-based operation for enhanced safety and convenience. The device provides robust short-circuit protection and reliable performance in a wide range of environmental conditions.
Electrical Ratings
Available Rated Currents
- 10
- 16
- 25
- 32
- 40
- 50
- 63
- 80
- 100
Short-circuit Breaking Capacity
6,000 A
Breaking Capacity
- Rated Voltage
- 220V, 230V, 380V, 400V AC
Technical Specifications
- Tripping Characteristics
- Type C (5-10In instantaneous trip)
- Power Off Time
- 0.04 s
- Standards Compliance
- GB/T10963.1IEC60898-1
Features
Key Functional Features
- Remote opening and closing via App
- Timing task scheduling
- Local manual control
- Automatic short circuit protection
- Wi-Fi networking module built-in
Operating Environment
- Ambient Temperature Range
- -40°C to 70°C
- Relative Humidity
- ≤95%
