Wheel-Type Tunnel Slag Scraper for Mining

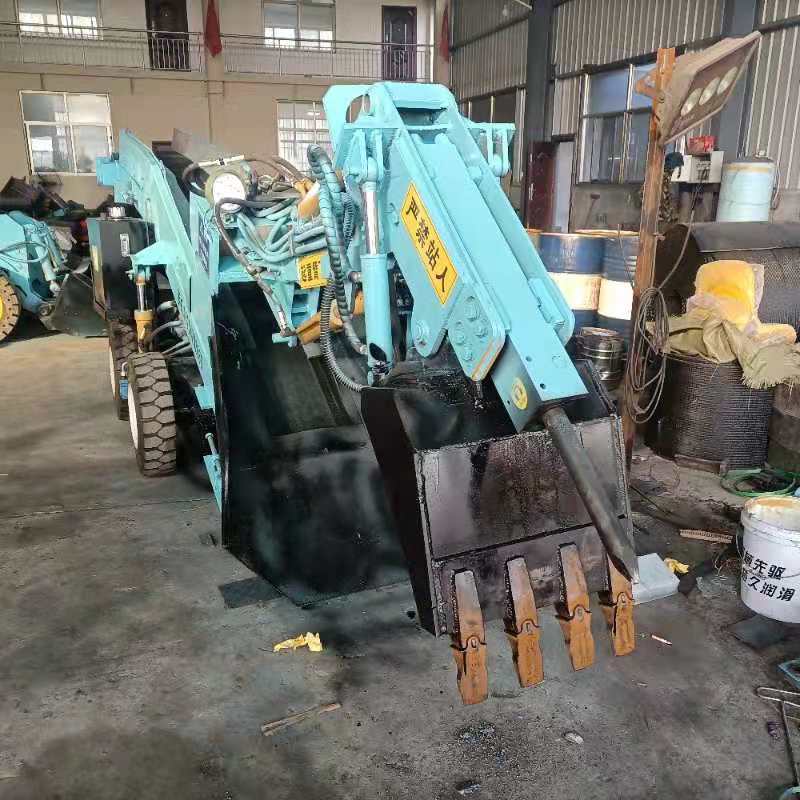

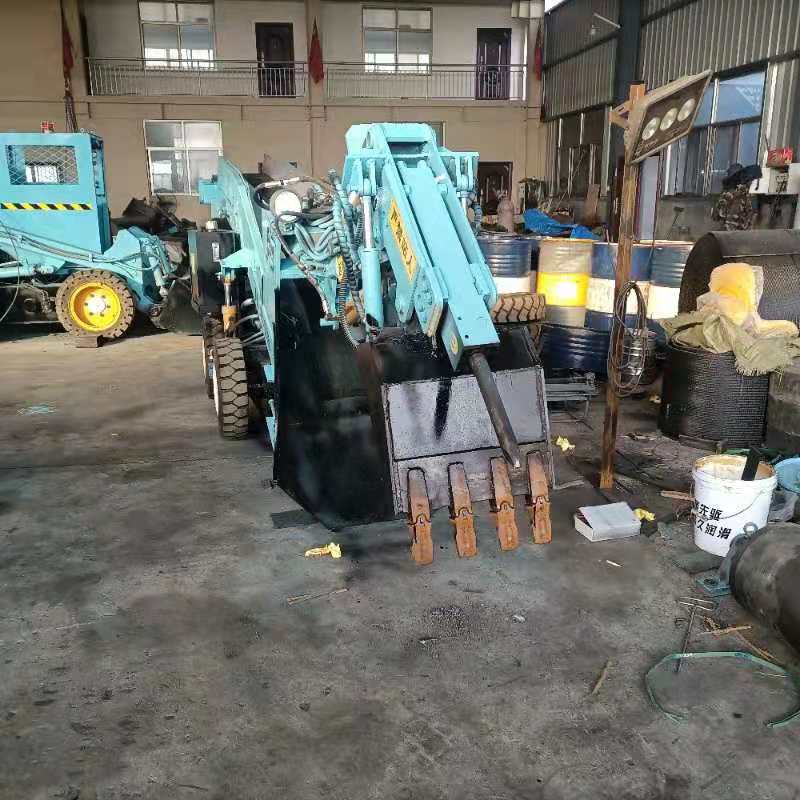

This wheel-type tunnel slag scraper is designed for efficient slag removal in mining environments. Its wheel-based chassis allows for maneuverability in confined spaces.
Technical Specifications
Overview
Efficient Tunnel Slag Removal
This wheel-type tunnel slag scraper is engineered for high-efficiency slag removal in small coal mines and roadway collection work. Its robust construction ensures durability in demanding mining environments, while the wheel-based chassis provides superior maneuverability in confined spaces. Equipped with a powerful hydraulic system, it offers precise control for digging and loading tasks, significantly enhancing productivity and operational safety.
Performance Metrics
Key Performance Indicators
100 T/H
Max Mucking Efficiency
19 KW
Max Power
11.1 kN
Max Digging Force
Technical Specifications
Model Specifications
| Model | Length (mm) | Width (mm) | Power (KW) | Efficiency (T/H) |
|---|---|---|---|---|
| YX-50 | 4,300 | 1,500 | 15 | 60 |
| YX-60 | 4,300 | 1,500 | 15 | 60 |
| YX-70 | 5,600 | 1,700 | 15 | 70 |
| YX-80 | 6,000 | 1,700 | 19 | 80 |
| YX-100 | 6,400 | 1,730 | 19 | 100 |
Operational Capabilities
- Working Space Requirements (m)
- 1.5x1.8 (YX-50/60)1.8x2.2 (YX-70)2.6x2.6 (YX-80)3x3 (YX-100)
- Max Conveyor Belt Slope
- 24 degrees
- Swing Angle of Boom
- 73 degrees
