Technical Specifications
Overview
High-Efficiency Tunnel Raking

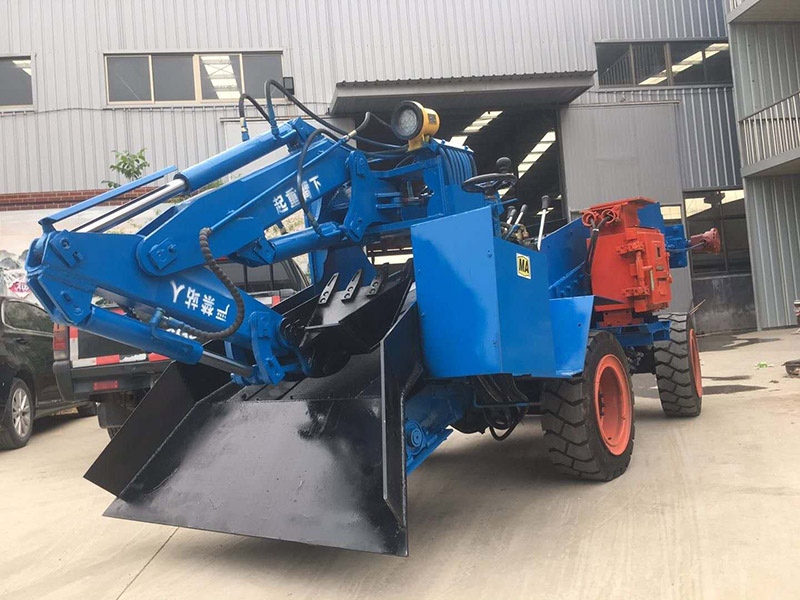

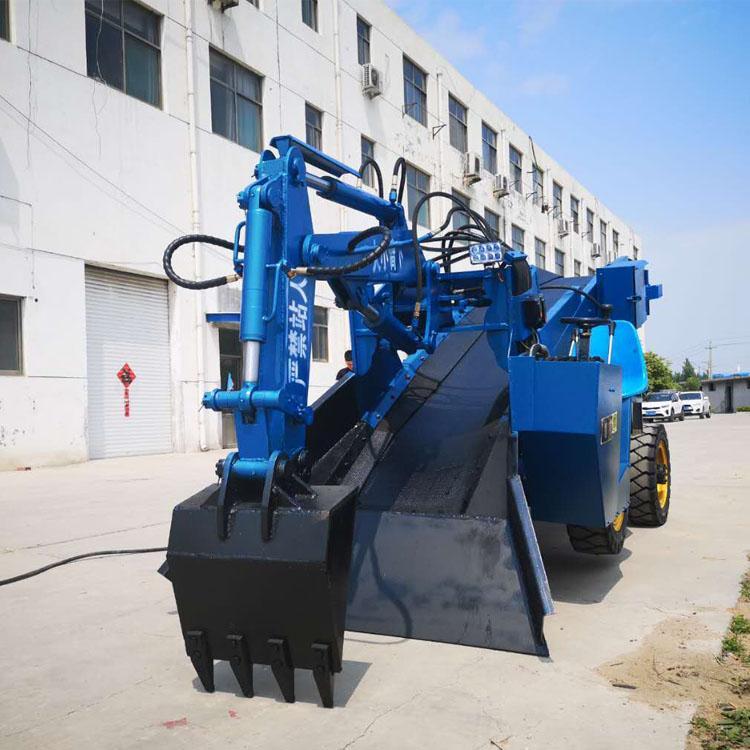

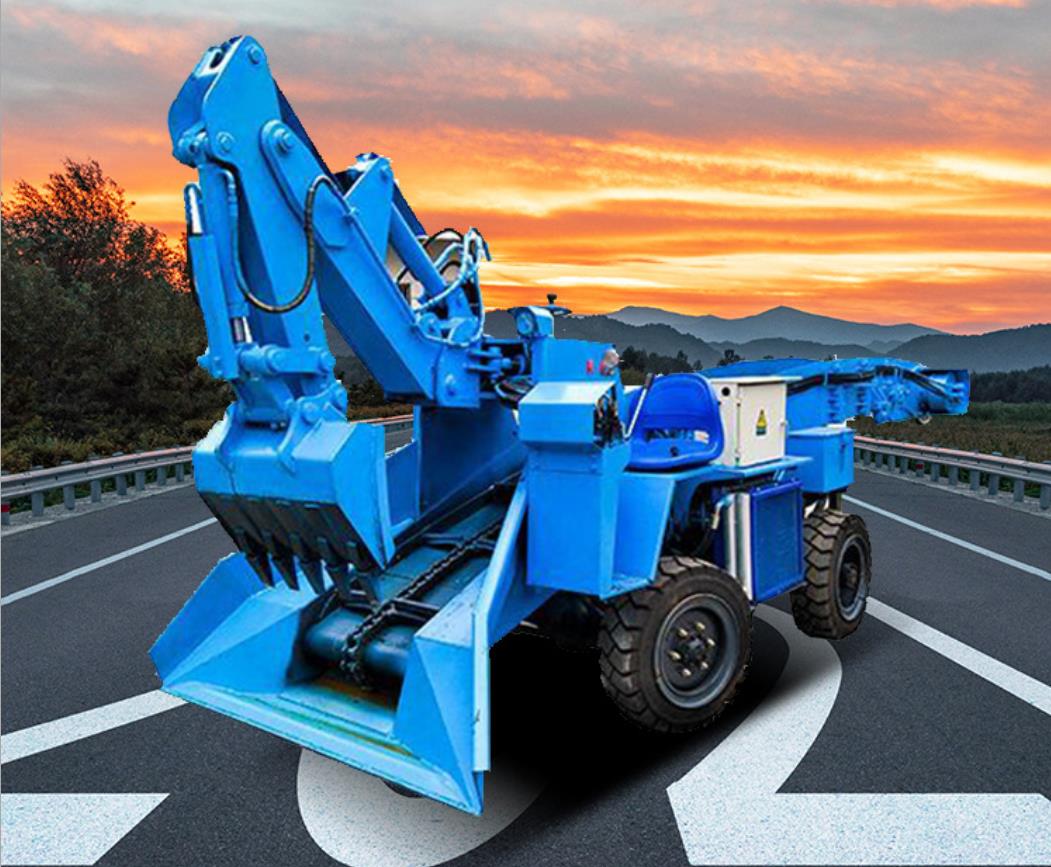

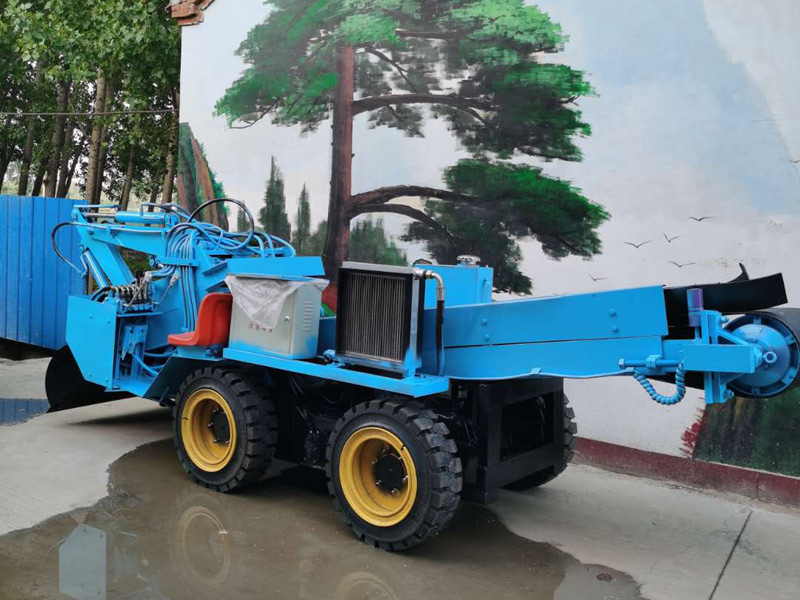

This underground slag raking machine is engineered for high-performance material collection in confined tunneling and mining environments. Its compact, articulated design provides exceptional maneuverability while maintaining robust digging force. Designed for reliability, the machine features a sophisticated hydraulic system and high-strength construction to significantly boost productivity and safety in demanding excavation operations.
Key Metrics
Performance Highlights
100 T/H
Mucking Efficiency
11.1 kN
Max Digging Force
19 kW
Engine Power
Technical Specifications
Detailed Machine Specifications
| Feature | YX-50 | YX-100 |
|---|---|---|
| Length (mm) | 4300 | 6400 |
| Width (mm) | 1500 | 1730 |
| Height (mm) | 1500 | 1650 |
| Max Loading Height (mm) | 1200 | 1500 |
| Working Space (m) | 1.5*1.8 | 3*3 |
Operational Details
- Compatible Applications
- Open-pit MiningRoadway CollectionUnderground TunnelingConstruction Excavation
