20-Metric Ton Underground Wheel Loader
This underground wheel loader has a 20-metric ton payload capacity for efficient material handling. Its diesel engine and articulated steering provide optimal performance in confined underground mining environments.
Technical Specifications
Product Overview
High-Capacity Underground Loading

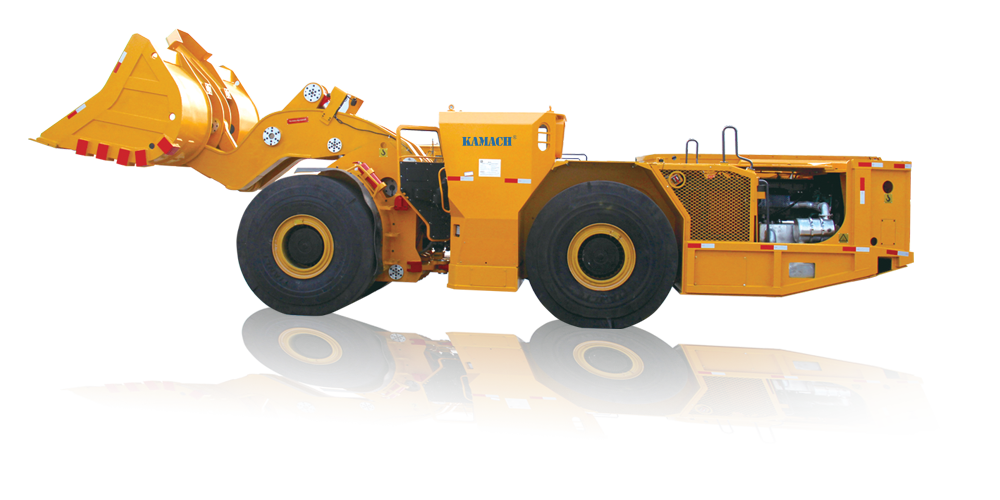

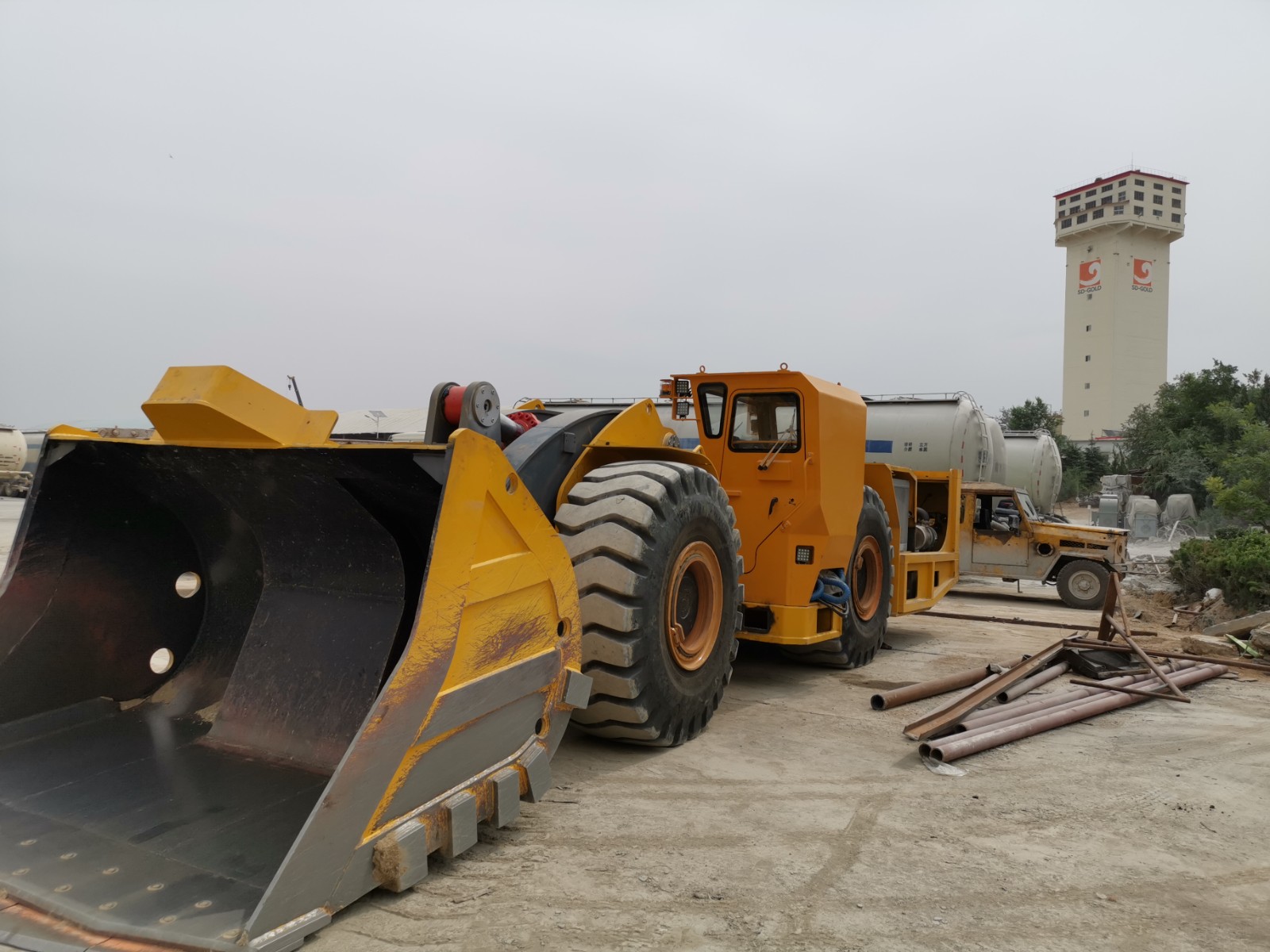

The WJ-8 is a high-performance diesel-powered underground wheel loader engineered for efficient material handling in tunnel environments of 4m x 4m or larger. With a 20-metric ton payload capacity and an 8m3 bucket, it provides the robust power required for demanding mining operations. The unit features world-class power transmission and hydraulic components, ensuring high reliability, precise control, and long-term durability in harsh, confined underground conditions.
Key Performance Metrics
Performance Metrics
20 ton
Loading Capacity
8 m3
Bucket Volume
2,900 mm
Max Dumping Height
20 km/h
Max Travel Speed
Technical Specifications
Engine & Drive
| Component | Specification |
|---|---|
| Engine Model | VOLVO PENTA TAD1353VE |
| Rated Power | 345 kW / 1900 rpm |
| Transmission | DANA 8000 |
| Converter | DANA 9000 |
| Drive Axle | KESSLER D111 |
Machine Dimensions
- Length: 12,500 mm
- Width: 3,260 mm (±250mm)
- Height: 2,950 mm (±250mm)
- Inner Turning Radius: 3,800 mm
- Outer Turning Radius: 7,900 mm
Available Upgrades
Sealed Cabin (AC/Heater)Auto LubricationFire SuppressionRemote ControlTravel Aid System
Certifications & Compliance
- Standards & Certifications
- CEQS9001CA
