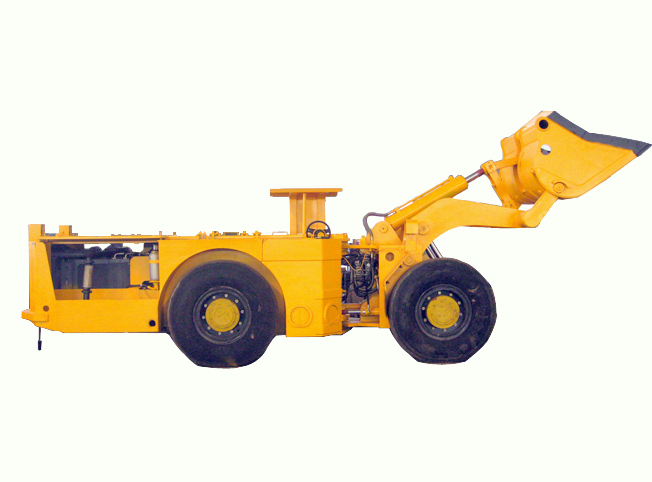

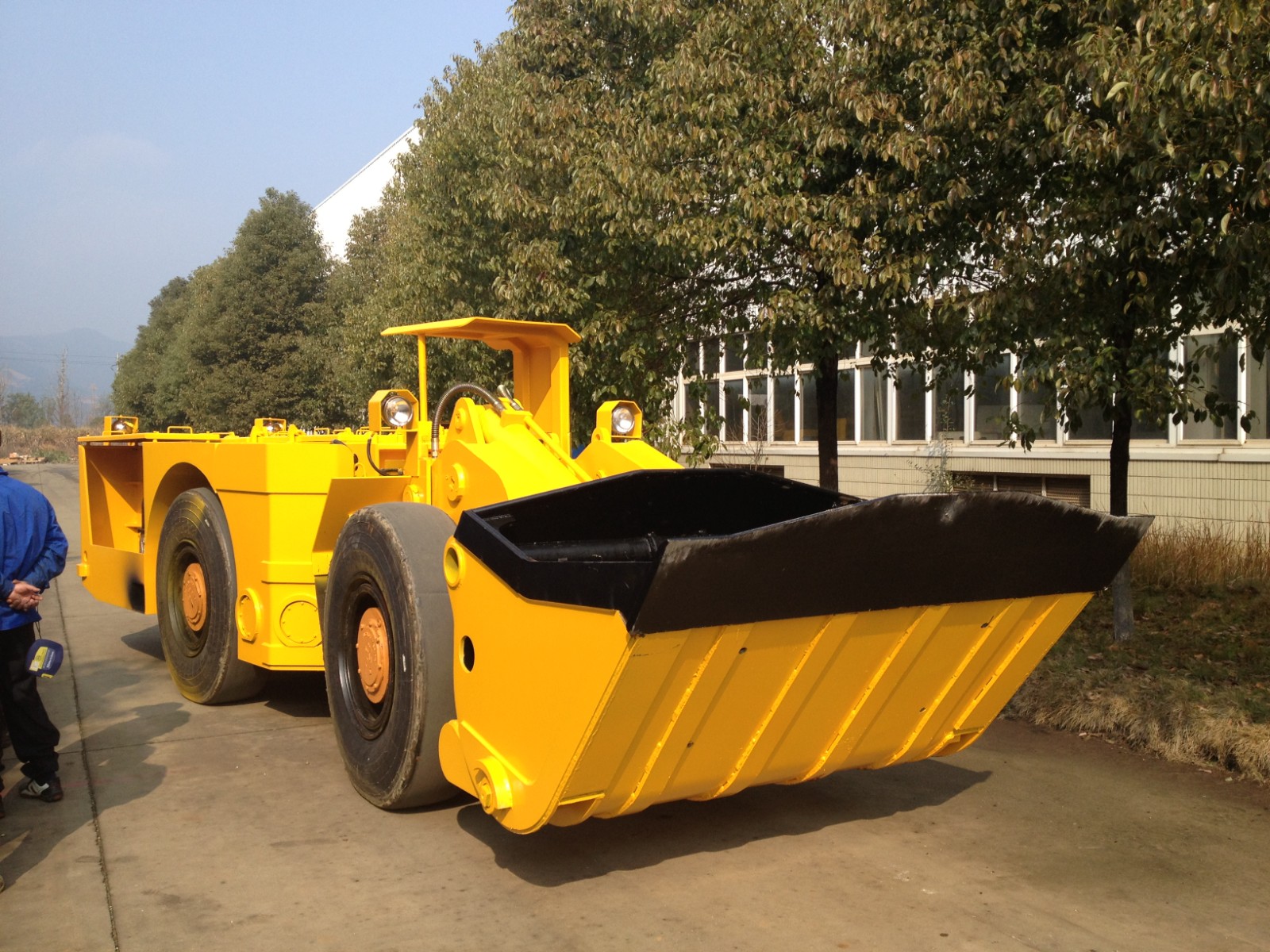

5-Ton Underground Wheel Loader
This underground wheel loader has a 5-ton loading capacity for high productivity in confined spaces. It features a heavy-duty frame and powerful hydraulic system for optimal performance and safety.
Technical Specifications
Overview
Built for Demanding Underground Environments
The 5-Ton Underground Wheel Loader is a high-performance, diesel-driven machine engineered for efficiency in tunnel sections of 3m by 3m or larger. Featuring imported components and a 2.5 cubic meter bucket capacity, it offers exceptional reliability for heavy-duty material handling. With a robust design and advanced safety options, this loader is optimized to maximize productivity and operational safety in mining and tunneling projects.
Performance Metrics
Key Performance Indicators
5,000 kg
Loading Capacity
2.5 m3
Bucket Volume
110 kN
Max Shovel Force
1,800 mm
Dumping Height
Technical Specifications
Physical Dimensions
| Dimension | Value | Unit |
|---|---|---|
| Length | 7,645 | mm |
| Width | 1,850 | mm |
| Height | 2,250 | mm |
| Inner Turning Radius | 3,355 | mm |
| Outer Turning Radius | 5,800 | mm |
Engine & Drive
- Diesel Engine: Deutz BF6L914/BF4M1013EC
- Rated Power: 112-118 kW at 2300 rpm
- Exhaust Purification: Catalytic Oxidation + Silencer
- Transmission: DANA R32000
- Converter: DANA C270
Compliance & Quality
- Standards & Compliance
- CEQS9001CA
Optional Equipment
Available Upgrades
- Sealed cabin with air-conditioner
- Central lubrication
- Automatic/manual fire suppression system
- Travel aid system
- Operation recording system
- CAN bus system
- Wireless remote control system with display
