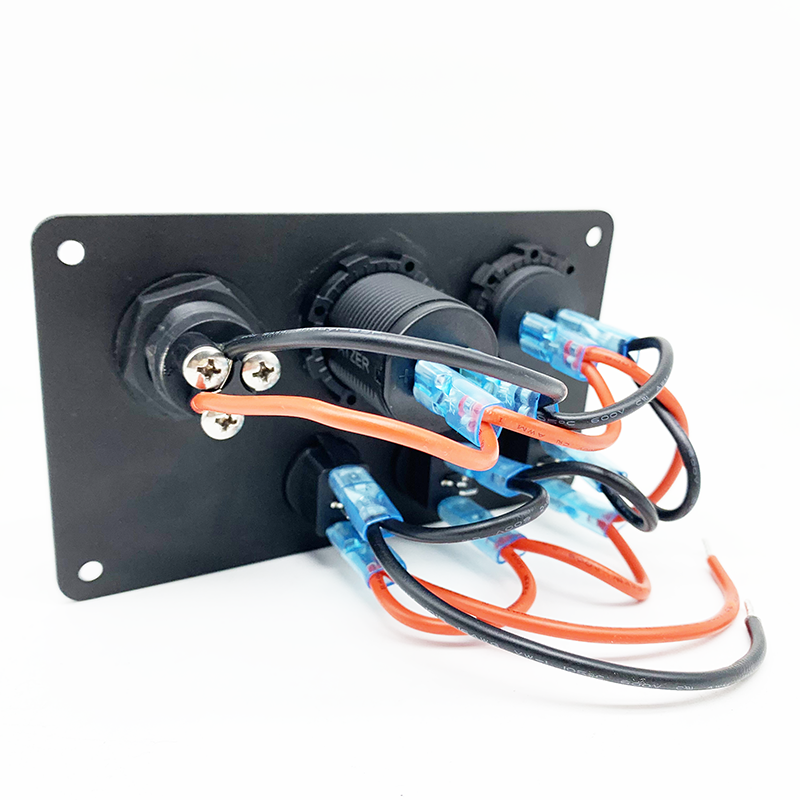

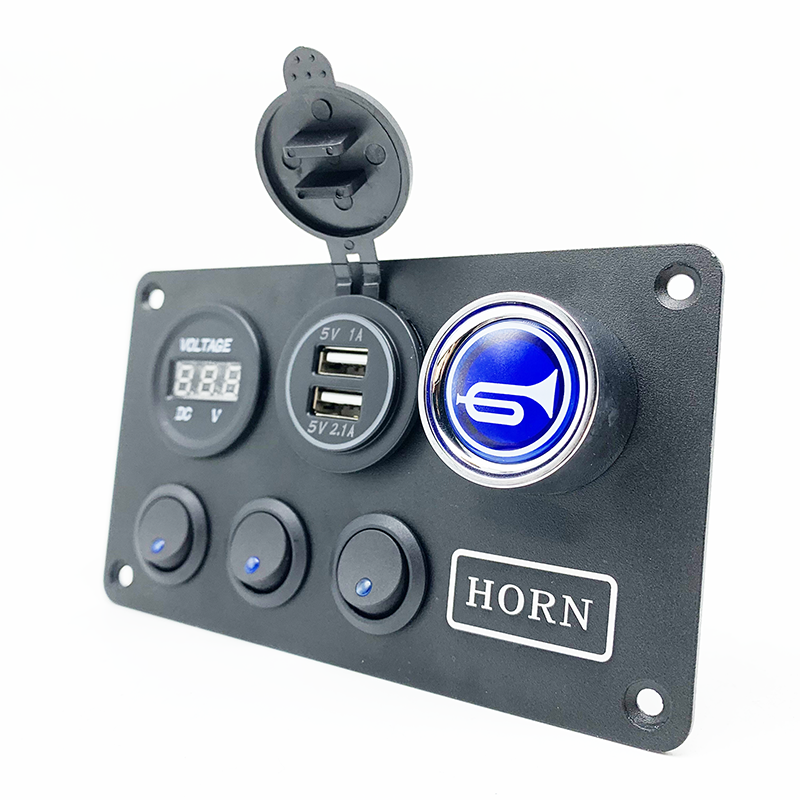

Waterproof Marine 3-Way Switch Panel with Horn
This combination panel is designed for DC 12V/24V car, boat, yacht, truck, and RV applications. The 3-way switch controls three different electrical equipment and includes a horn button.
Technical Specifications
Product Overview

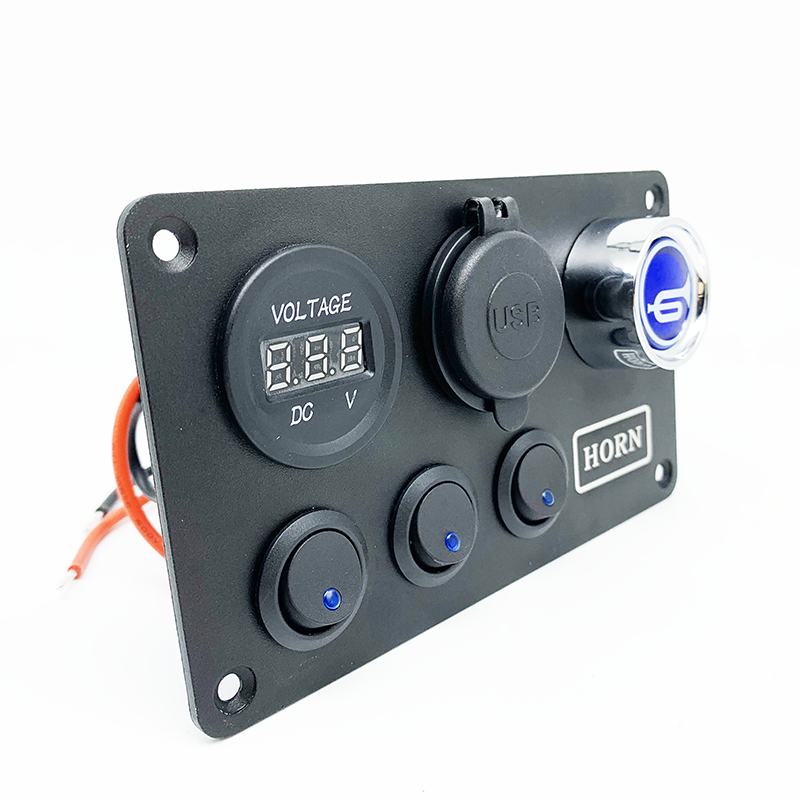

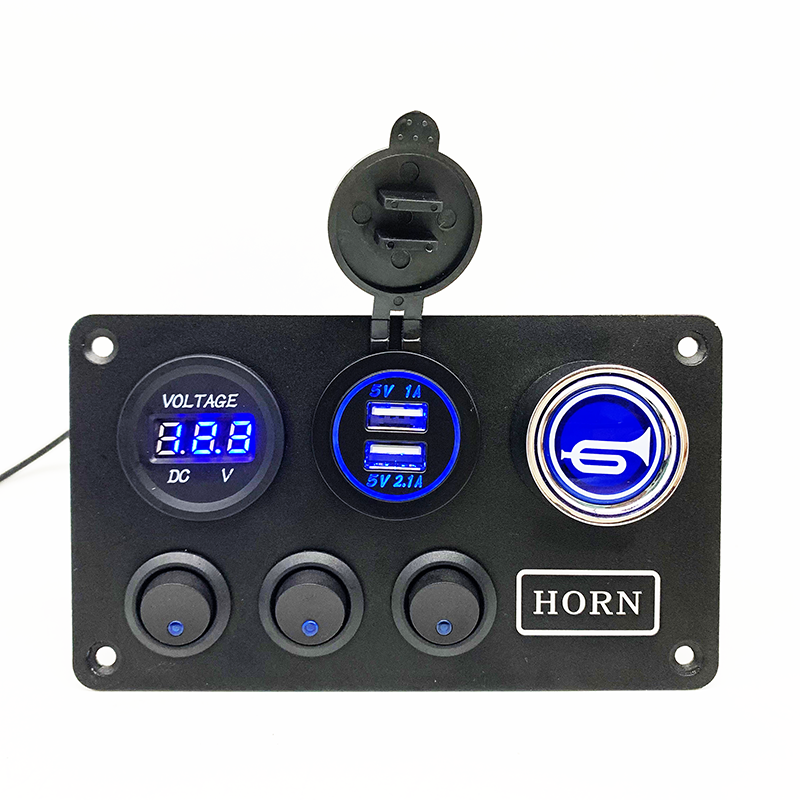

High-Performance 3-Gang Marine Switch Panel
This versatile 3-way rocker switch panel is engineered for reliability in demanding marine, automotive, and RV environments. Featuring a rugged aluminum alloy construction, it provides robust control for three independent electrical circuits, complete with a dedicated horn button. The integrated digital voltmeter and dual USB charging ports ensure you can monitor your battery levels and charge mobile devices simultaneously, making it an essential upgrade for any power-management setup.
Technical Specifications
Rated Current
20 A
Rating at 12V
10 A
Rating at 24V
- Voltage Compatibility
- 12V DC24V DC
- USB Output Capacity
- 5V 3.1A (2.1A + 1A)
- Voltmeter Monitoring Range
- 5V - 30V
- Operating Temperature Range
- -25°C to +80°C
Construction & Design
Material Composition
- Aluminum Alloy
- ABS Plastic
- Metal
LED Illumination
Blue LED
- Switch Function
- ON-OFF
Application & Support
- Compatible Applications
- MarineCarTruckRVYacht
- Warranty
- 1 Year
