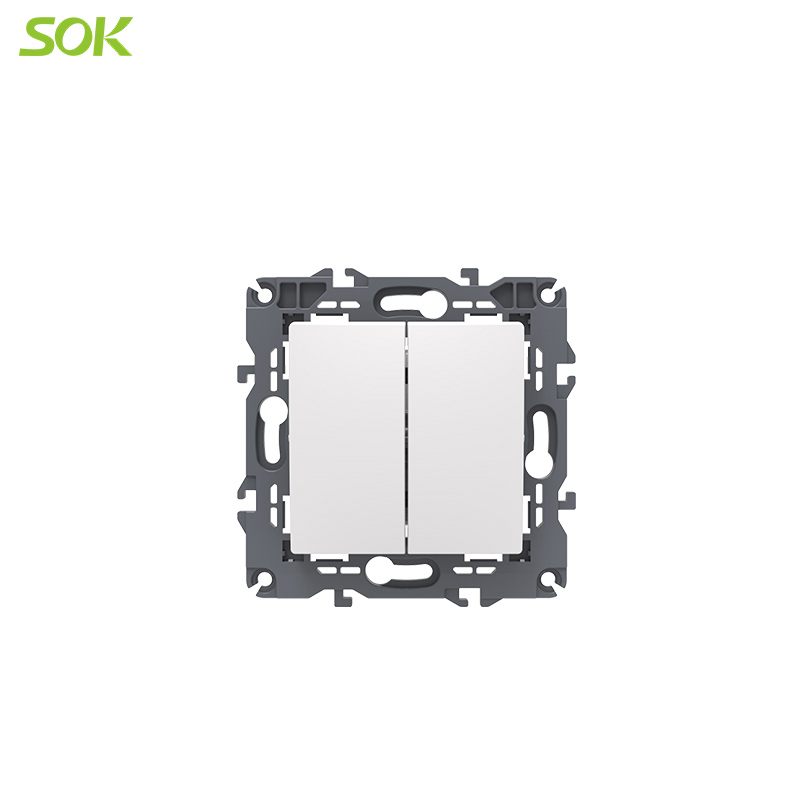

Two-Gang Two-Way Light Switch
This two-gang, two-way light switch controls two separate lights from two locations. It features a fire-resistant PC housing and offers options for screw or screw-less terminal connections.
Technical Specifications
Overview
Premium Modular Lighting Control
This S81 Series two-gang, two-way light switch offers a sophisticated and flexible solution for modern electrical installations. Featuring a unique 4-degree button swing angle for an elegant aesthetic, it utilizes a pendulum structure for rapid circuit switching. The modular design allows for extensive customization with various cover materials and easy inventory management for professional contractors.
Technical Performance
Electrical Specifications
250 V
Rated Voltage
10 AX
Rated Current
Safety & Durability
- Fire resistant PC back-housing
- Withstands 850°C glow wire test
- 3000V high voltage insulation test
- Integrated child-proof shutters
- 10-year mechanical warranty
Design & Materials
Design Features
- 4-degree elegant swing angle
- Flat and cambered design options
- Up to 27 color options

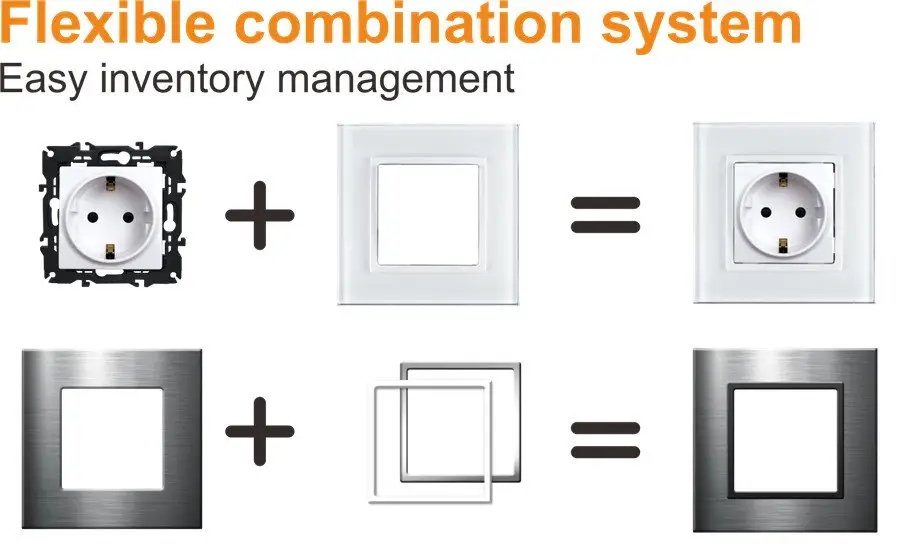

- Modular fitting for free combination
- Available Cover Materials
- PlasticWoodGlassAluminumFire-resistant PC
Installation
Installation Features
- Screw and screw-less terminal options
- Hanger installation (removable hanger option)
- Notched pins for perfect finish on uneven walls
- Universal frame for horizontal/vertical mounting
Dimensions
Mounting Standards
| Type | Hole Spacing | Total Width |
|---|---|---|
| Square Mounting | 53mm | 60mm |
| Rectangular Mounting | 71mm | 124mm |
- Unit Dimensions
- 74.7 x 74.7 x 35.2 mm
Logistics
Packaging Details
- 1 pc per bag
- 10 pcs per box
- 100 pcs per carton
Ordering Terms
- Minimum Order Quantity: 3000 PCS
- Payment Term: FOB SHUNDE
Compliance
Certifications
CETUV
