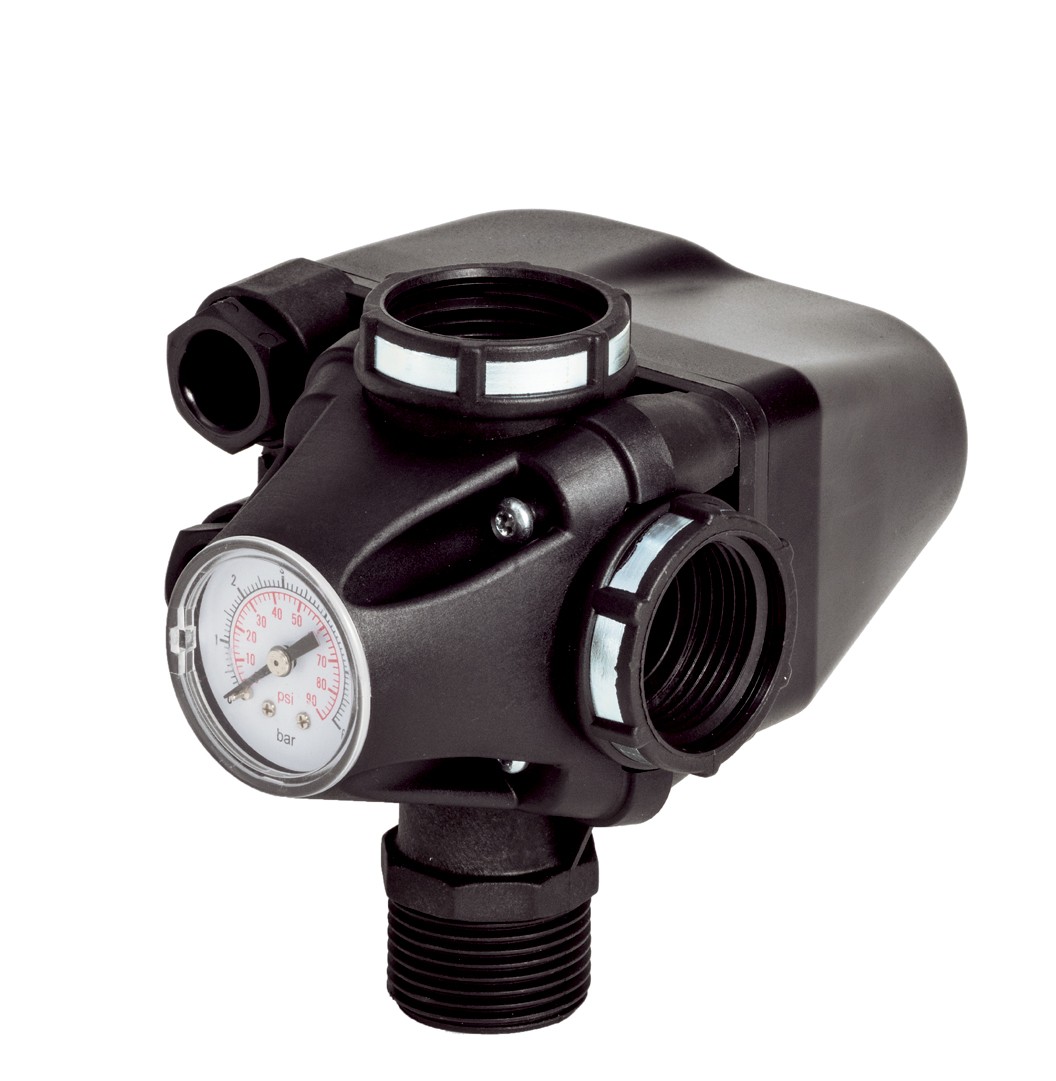

Water Pump Pressure Switch with Gauge and Three-Way Fitting
This pressure switch is designed for water pumps and includes an integrated pressure gauge. It features a three-way fitting for easy connection to the pump and pressure tank.
Technical Specifications
Product Overview
Integrated Pump Control Solution
This pressure switch assembly is engineered for booster sets, combining an automatic control switch with an integrated pressure gauge and a robust three-way fitting. The design facilitates fast and easy connection to both pumps and pressure tanks, streamlining the setup process. Featuring a durable reinforced construction, it serves as an efficient and reliable replacement for traditional brass fittings in domestic and industrial water systems.
Physical Dimensions
Device Dimensions
154 mm
Height
117 mm
Length
Technical Specifications
Connection Ports
- Female 1 inch
- Female 1 inch
- Male 1 inch
- Material Composition
- Robust PlasticReinforced Steel Ring
- Model Identifier
- PM5-3W
Application Data
- Ideal Applications
- Booster SetsDomestic Water SystemsIrrigationIndustrial Pumping
