Water Pump Pressure Switch
This pressure switch automatically controls a water pump based on the pressure within the system. It is equipped with adjustable pressure settings, ensuring optimal performance and protection against over-pressure or low-pressure conditions.
Technical Specifications
Product Overview

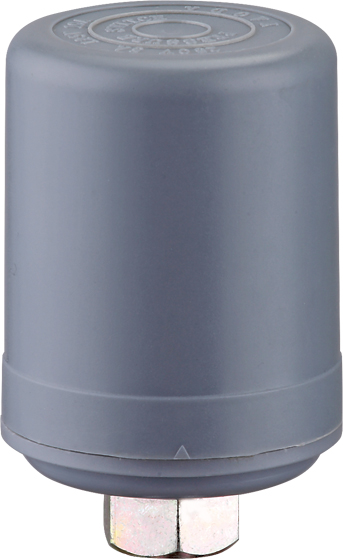

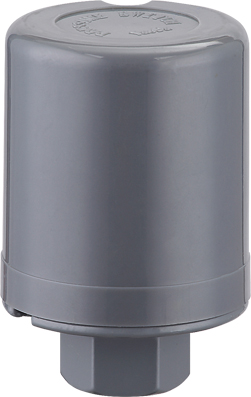

Professional Water Pump Pressure Switch
This adjustable pressure switch is engineered for reliable, automatic control of water pump systems across residential, commercial, and industrial applications. It features a precision-adjustable mechanism that monitors pipe pressure, automatically toggling the power supply to ensure consistent water flow and prevent pump damage. Available in various configurations including transparent, sealed, and high-power variants, this durable device is built for long-term operational performance.
Technical Specifications
Electrical Performance
250 V
Max Voltage
15 A
Max Current
0.75 HP
Max Power (220V)
Protection Rating
IP44 (Seal type)
- Available Models
- SK-3ASK-3BSK-3DSK-3AC
- Standard Preset
- 20-40 PSI
Design Features
Key Features
- Transparent cover for visual contact inspection
- Independent adjusting screw for pressure control
- Long-life silver alloy contact terminals
- Special cable connector for severe environments
- Robust hexagonal base for secure mounting
