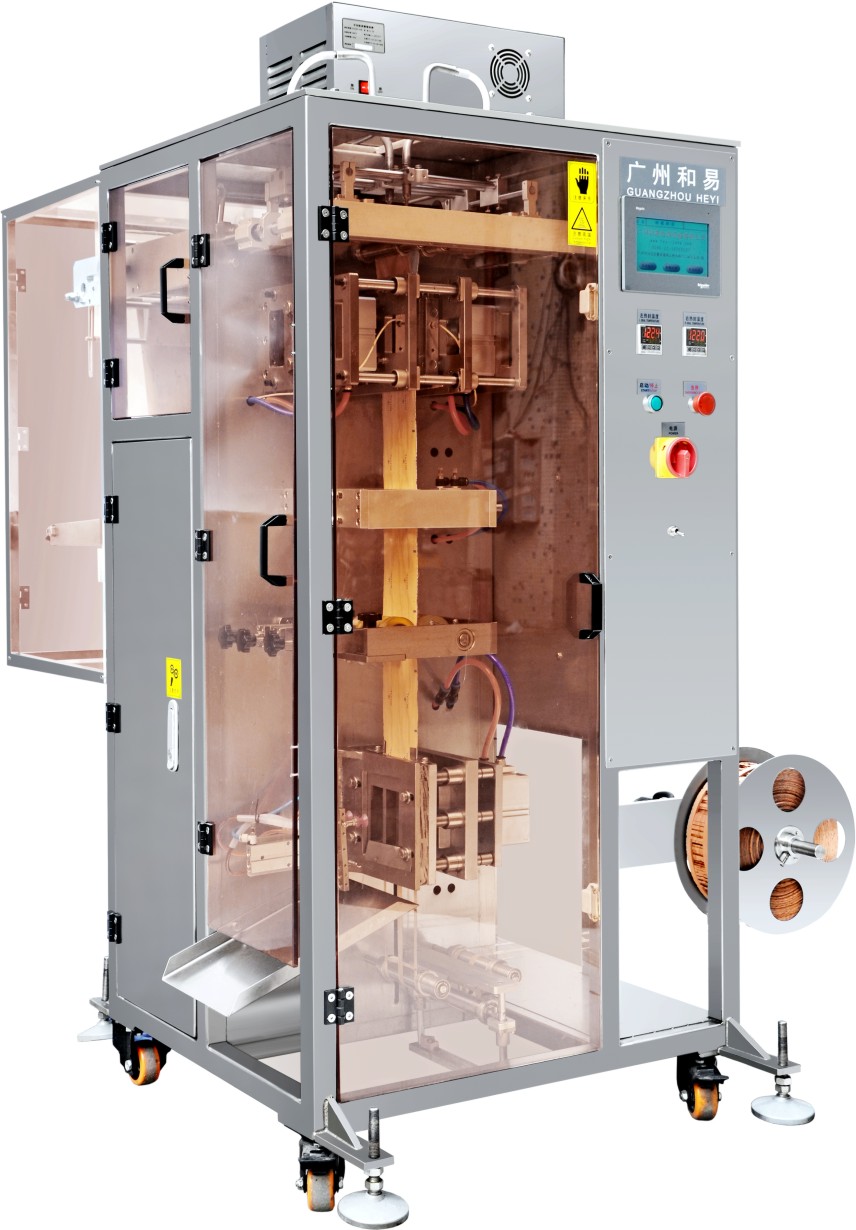

Vertical Sachet Form Fill Seal Machine for Irregular Shapes
This vertical packaging machine is designed for forming, filling, and sealing irregular-shaped sachets. It utilizes a film roll feeding system, precise sealing mechanisms, and an adjustable filling system to ensure accurate and efficient packaging of powders, granules, and liquids.
Technical Specifications
Overview
High-Efficiency Irregular Sachet Packaging
This vertical form fill seal machine is engineered for precision packaging of liquid and paste products into unique, irregular shapes. Built with SUS304 stainless steel and high-end components like Siemens PLC controllers, it ensures GMP-compliant production for industries including cosmetics and food. The machine features fully pneumatic control for easy operation and minimal maintenance, making it an ideal choice for high-speed, reliable sachet production.
Technical Specifications
Packaging Speed
40 ppm
Max Capacity
- Model Number
- HY-IY320
- Filling Range
- 1-20ml / 10-50ml
- Machine Dimensions
- 920 x 1291 x 2173 mm
- Weight
- 450 kg
Performance & Construction
Sachet Specifications
| Parameter | Range |
|---|---|
| Width | 30-130mm |
| Length | 30-170mm |
| Max Film Width | 320mm |
Key Machine Features
- Siemens PLC Controller
- Full pneumatic control
- Easy mobility via casters
- GMP compliant contact parts
- Single or double outlet customization
- Construction Materials
- SUS304 Stainless SteelHKS-9 Die Material
Electrical & Utilities
- Power Consumption
- 4.5 KW
- Air Pressure
- 0.6-0.8 Mpa
Film Compatibility
- Supported Film Materials
- PE LaminatedPET/AL/PEPET/PENylon/PE
