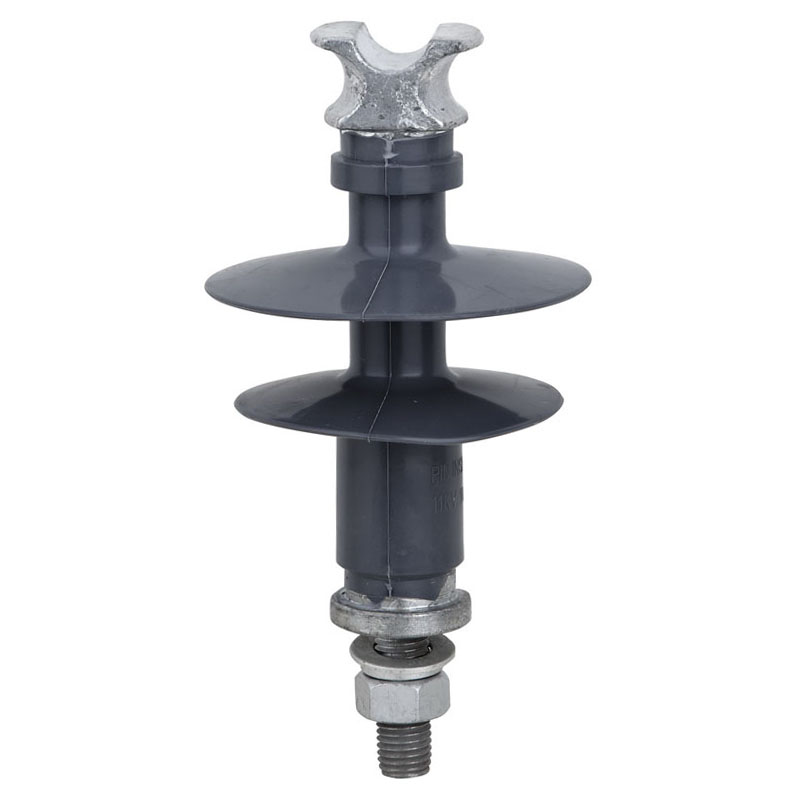

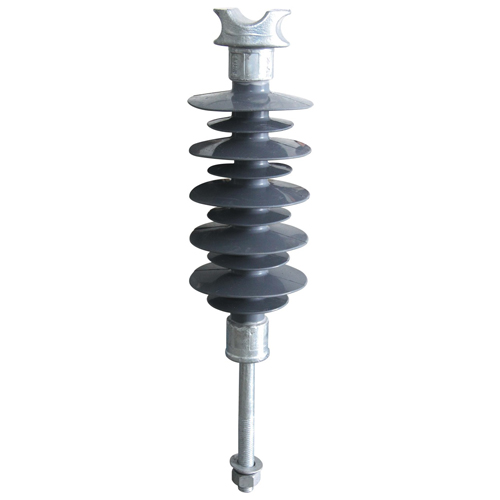

Vertical Post Insulator
This vertical post insulator is designed for electric power transmission and distribution systems. It provides insulation and mechanical support for high-voltage conductors.
Technical Specifications
Product Overview
High-Performance Composite Insulators
These pin-type composite insulators are engineered for high-voltage power line service, offering superior performance in demanding environments. They feature excellent hydrophobicity, anti-aging properties, and high resistance to tracking, erosion, and electrical wear. Designed for both durability and ease of installation, these insulators provide high tensile and bending strength while maintaining a lightweight profile. Their installation dimensions are compatible with standard porcelain insulators, ensuring seamless interchangeability in existing infrastructure.
Key Features
- Key Features
- HydrophobicAnti-agingErosion ResistantHigh Tensile StrengthLightweightInterchangeable Design
Technical Specifications
Model Specifications
| Model | Voltage (kV) | Mech. Load (kN) | Height (mm) | Insul. Dist. (mm) | Creepage (mm) |
|---|---|---|---|---|---|
| FPQ-10/4T20 | 10 | 4 | 215 | 125 | 280 |
| FPQ-10/5T20 | 10 | 5 | 250 | 165 | 420 |
| FPQ-11/10 | 11 | 10 | 215 | 142 | 320 |
| FPQ-15/8 | 15 | 8 | 247 | 160 | 465 |
| FPQ-15/11 | 15 | 11 | 226 | 150 | 320 |
| FPQ-24/4 | 24 | 4 | 305 | 255 | 715 |
| FPQ-24/8 | 24 | 8 | 312 | 215 | 770 |
| FPQ-36/8 | 36 | 8 | 440 | 320 | 1,000 |
| FPQ-35/10 | 35 | 10 | 405 | 305 | 900 |
| FPQ-36/12.5 | 36 | 12.5 | 550 | 428 | 1,089 |
| FPQ-52/12 | 52 | 12 | 480 | 415 | 1,255 |
