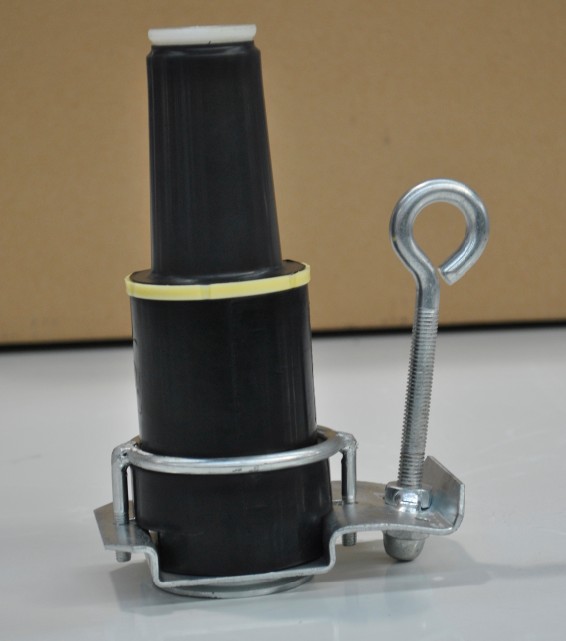

200A 25kV Insulated Standoff Bushing
This 200A 25kV insulated standoff bushing provides a secure and insulated connection point for electrical conductors. It is suitable for use in various electrical systems and equipment, ensuring reliable performance and safety.
Technical Specifications
Product Overview
Insulated Standoff Bushing Overview
The 200A 25kV Insulated Standoff Bushing provides a reliable single loadbreak interface designed to isolate and sectionalize energized cables in pad-mounted transformers and switchgear. This component simplifies the temporary or permanent parking of energized 200A loadbreak elbow connectors, effectively protecting them from environmental factors like dust, water, and dampness. Constructed from high-quality insulating EPDM rubber, it ensures a fully shielded, submersible, and separable connection for safe, energized operation.
Technical Ratings
Rated Current
Voltage Rating
Construction & Materials
Included Hardware
- Galvanized steel mounting bracket
- Hook bolt
- Grounding lug
- Body Material
- High quality insulating EPDM rubber
- Grounding
- Yes
Application & Safety
Key Features
- Compatible Equipment
- Pad-mounted transformersSwitchgear200A Loadbreak Elbows
