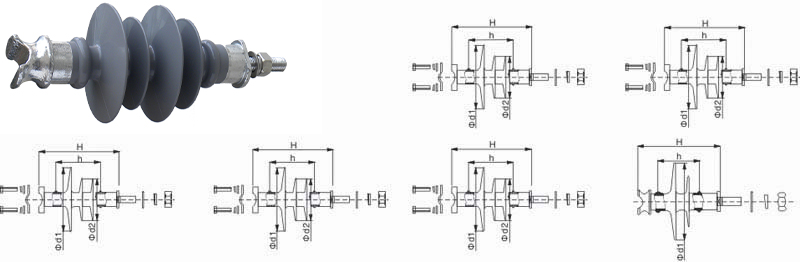

10kV Pin Type Composite Insulator
This 10kV pin type composite insulator is lightweight and small in volume, making it easy to transport and install. It offers high mechanical strength and good anti-pollution performance.
Technical Specifications
Overview
High-Performance 10kV Composite Insulation
This 10kV Pin Type Composite Insulator is designed for reliable electric power transmission and distribution in overhead lines and substations. Featuring a lightweight and compact design, it offers high mechanical strength and exceptional anti-pollution performance. The silicone housing and complete injection technology ensure a seamless interface between the core rod and sheath, preventing internal insulation breakdown and eliminating the need for regular maintenance.
Technical Characteristics
Key Features
- Lightweight and small volume for easy transport and installation
- High mechanical strength for reliable conductor support
- Superior anti-pollution performance
- Maintenance-free operation
- Complete injection technology to avoid interface breakdown
Construction Materials
- Material Composition
- Silicone HousingCore RodEnd FittingPolymeric Sheds
Mechanical & Physical Specs
Mechanical Performance
3 kN
Bending Withstand Load
146 mm
Big Shed Diameter
Technical Parameters
Detailed Technical Data
| Type | Rated Voltage (kV) | Section Length (mm) | Min. Creepage (mm) | Lightning Impulse (kV) | Wet Power Freq (kV) |
|---|---|---|---|---|---|
| FP-1/3 | 1 | 155±10 | 180 | 45 | 18 |
| FP-10/3 (Standard) | 10 | 183±10 | 300 | 95 | 42 |
| FP-10/3 (Extended) | 10 | 210±10 | 350 | 95 | 42 |
| FP-10/3 (High-Spec) | 10 | 250±10 | 450 | 110 | 50 |
Hardware & Fittings
- Fitting Specifications
- Steel foot specifications available in M16, M18, and M20.
Customization
Customization Capabilities
Custom DimensionsVariable Shed ColorsConnecting Type OptionsSpecific Characteristics
