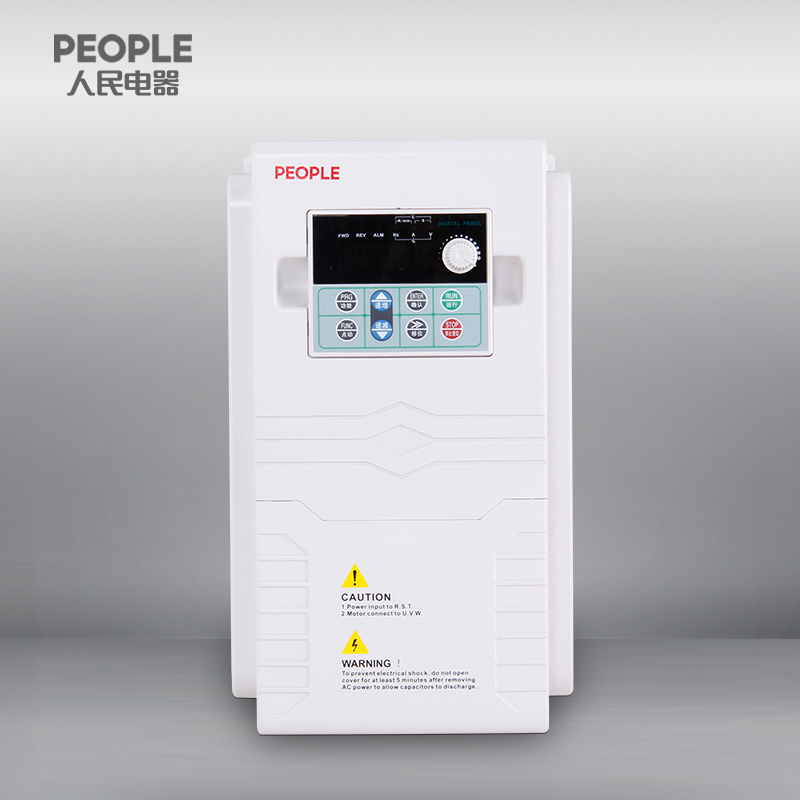

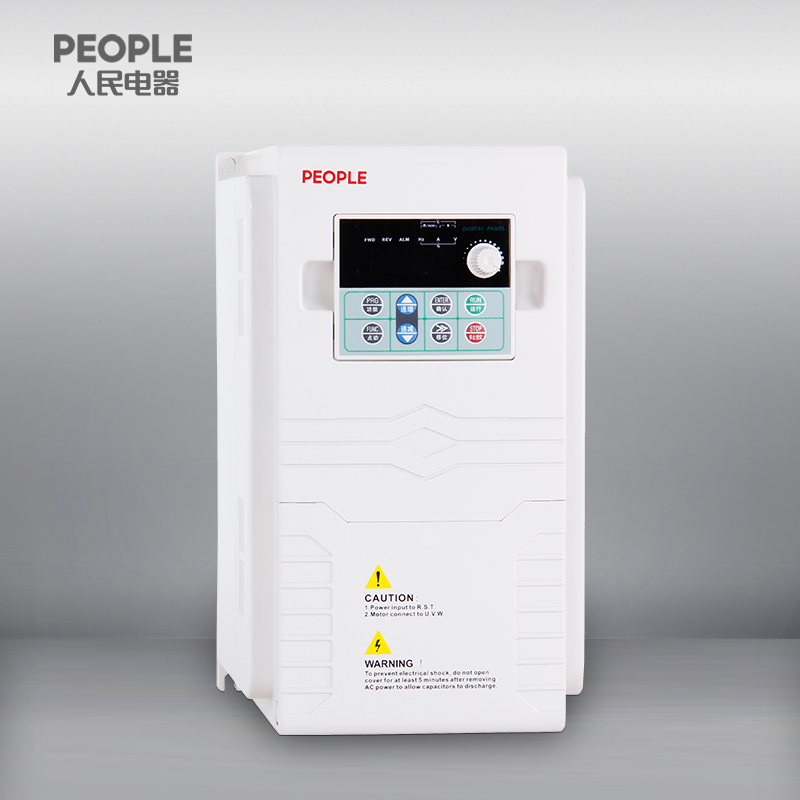

Variable Frequency Drive for AC Motors
This variable frequency drive is designed for controlling the speed of AC motors. It features a digital panel for monitoring and comprehensive protection functions for safe operation.
Technical Specifications
Overview
High-Performance Vector Control
The RDI67 series variable frequency drive utilizes a high-precision DSP dual-core controller to deliver advanced flux vector torque control. It is engineered to provide exceptional speed and position control, ensuring rapid torque response even at low frequencies. With enhanced environmental resilience against dust, temperature, and grid fluctuations, this drive offers superior reliability for demanding industrial applications.
Technical Specifications
Frequency Range
Electrical Input/Output
| Parameter | Specification |
|---|---|
| Input Voltage | 3-Phase AC |
| Input Tolerance | ±15% |
| Output Configuration | 3-Phase AC |
| Standards Compliance | GB/T 12668.2 |
- Supported Control Modes
- PG Vector Control (VC)PG-Free Vector Control (SVC)V/F Control
Operational Safety
Critical Operating Safety
To ensure operator safety, strictly avoid opening the device cover while the unit is energized. After removing AC power, allow at least 5 minutes for internal capacitors to fully discharge before performing maintenance or inspection on power terminals.
