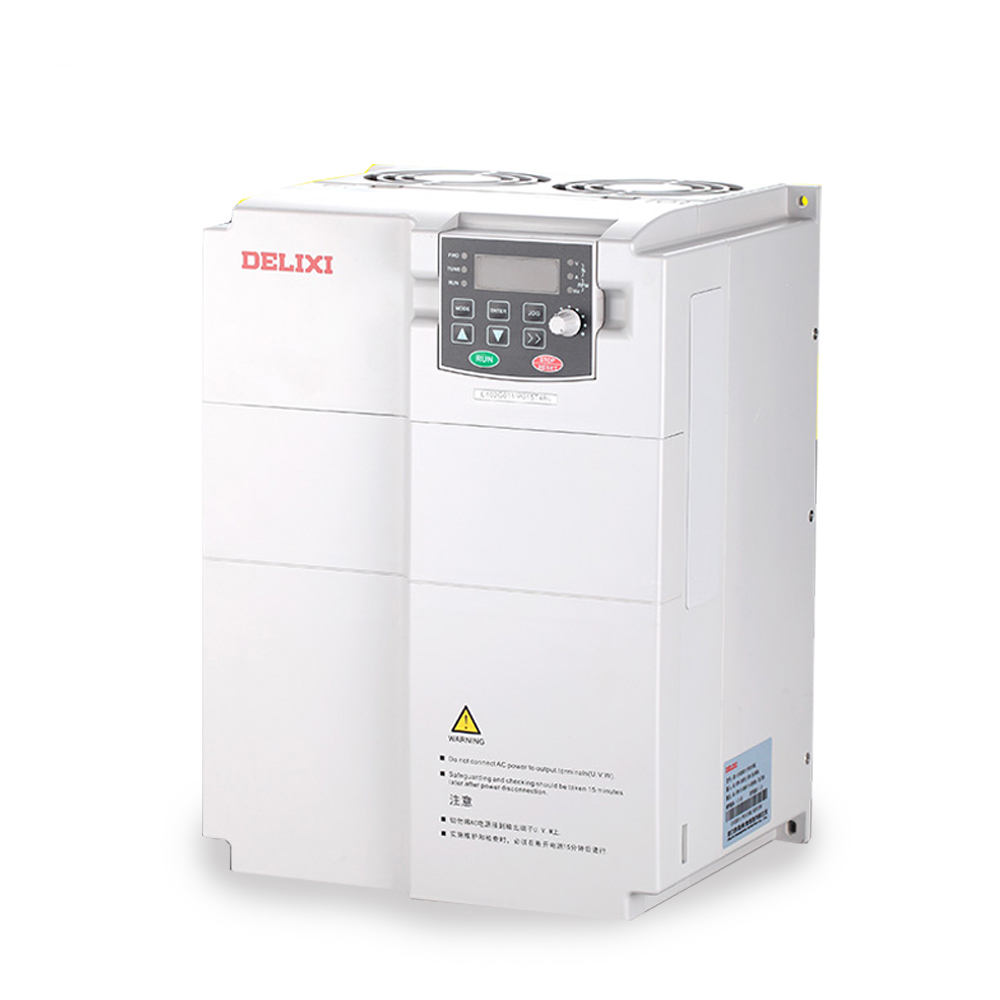

Variable Frequency Drive Inverter
This variable frequency drive inverter is designed for electric power transmission and distribution. It provides precise control over motor speed and torque, ensuring smooth and consistent operation in various industrial applications.
Technical Specifications
Product Overview

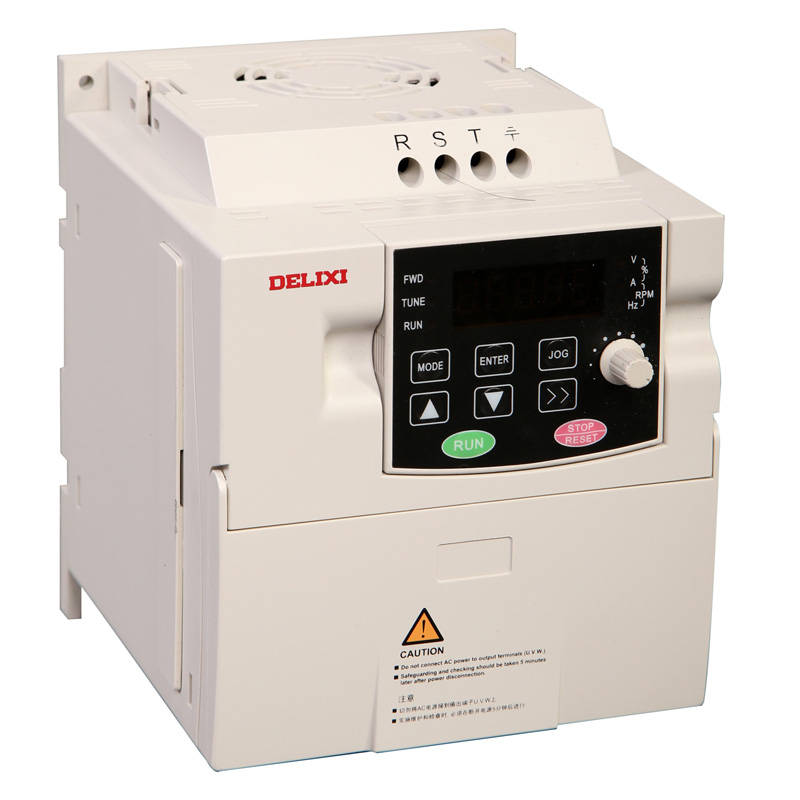

CDI-100 Series Overview
The CDI-100 Series is a general-purpose, low-power variable frequency drive inverter designed for stable performance and high cost-effectiveness. It features an optimized, compact structure with an elegant appearance, suitable for various industrial environments. The unit supports versatile control modes, including Sensorless Vector Control (SVC) and V/F control, ensuring precise motor management.
Technical Specifications
Installation Options
- Slide mount
- Hole mount
- Control Modes
- SVCV/F Control
- Communication Interface
- RS-485 (MODUS-RTU)
Industrial Applications
Typical Applications
- Carving machines
- Textile machines
- Glass-making machines
- Dyeing machines
Safety & Operation
Important Safety Instructions
Do not connect AC power to the output terminals (U, V, W) under any circumstances. Always ensure the device is fully powered down and wait for the specified discharge time (5-15 minutes depending on model variant) after disconnection before performing any inspection or maintenance to prevent electrical hazard.
