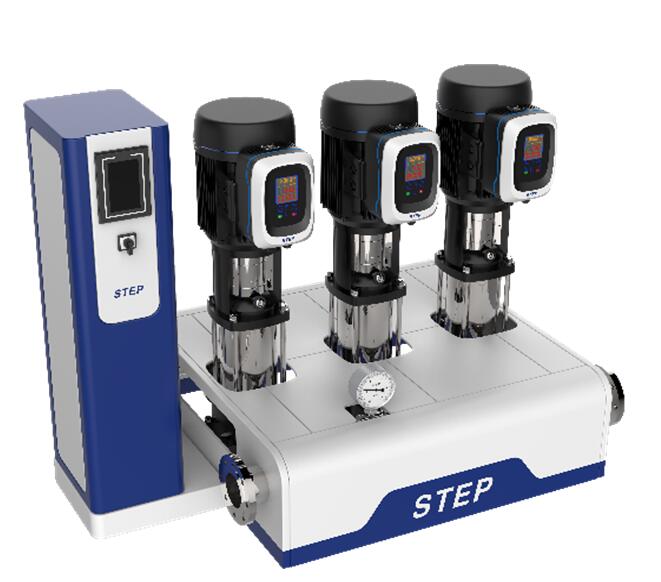

AC Drive Water Pump Inverter

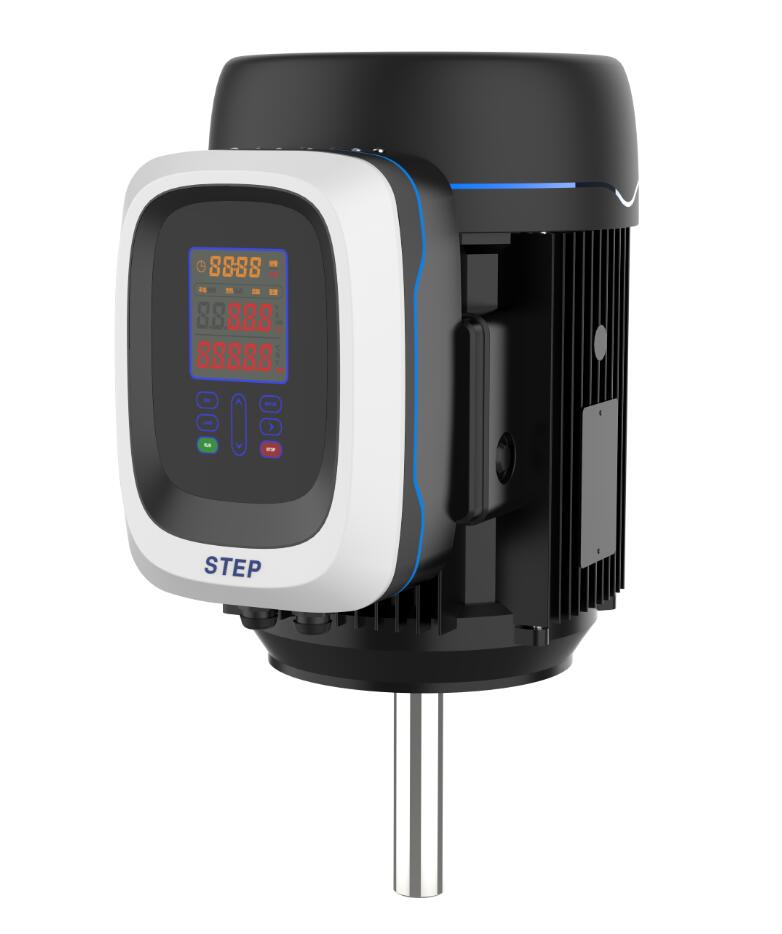

This AC drive water pump inverter is a motor-driven machine with a high protection grade. It features local and remote control modes for convenient, reliable, and safe installation.
Technical Specifications
Product Overview

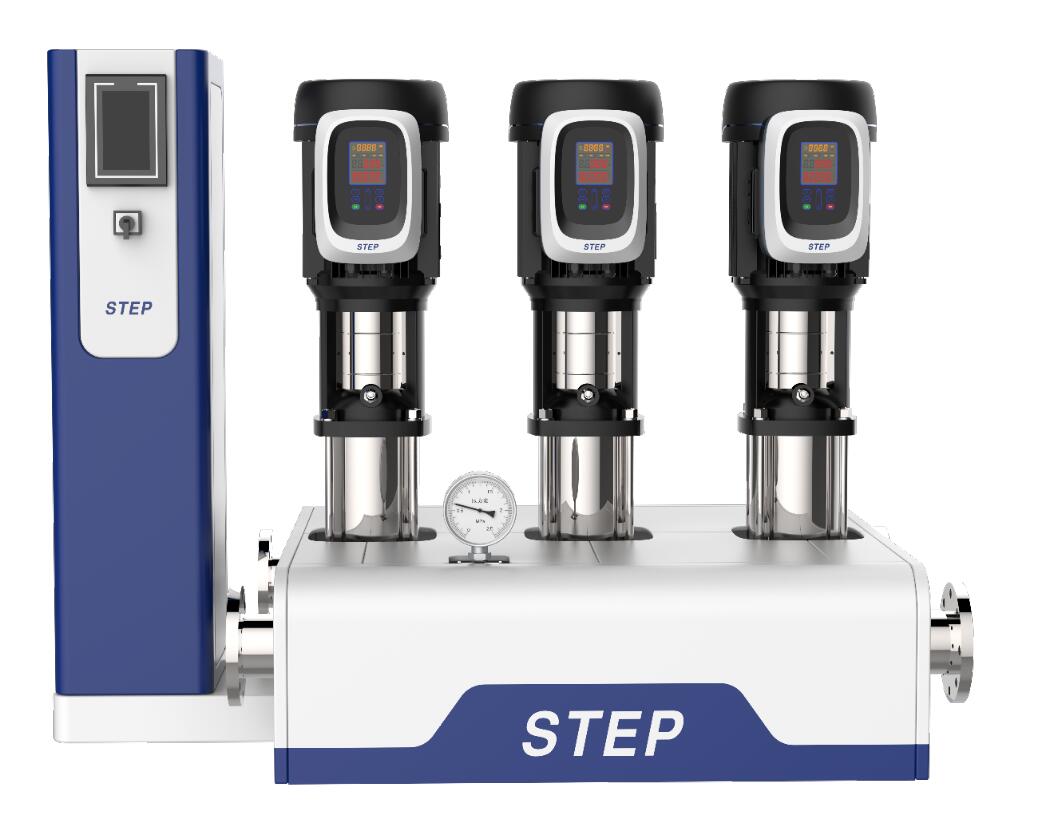

AS170 Series Water Pump VFD
The AS170 series is an integrated motor-driven water pump inverter featuring high protection standards and flexible control modes. It is designed for reliability, efficiency, and silent operation, offering constant pressure water supply without the need for additional PLC or control cabinets. With advanced vector VF control and automatic voltage regulation, this solution effectively reduces energy consumption and supports long-term durability in varied industrial and residential environments.
Key Features
- Features
- Backpack TypeCompact SizeHigh EfficiencySilent OperationConstant Pressure ControlPeriodic Break Control
Technical Specifications
Product Specifications
| Model | Input (A) | Output (A) | Motor (kW) | Dimensions (mm) |
|---|---|---|---|---|
| 4T01P5 | 3.8 | 3.5 | 1.5 | 272*260*196 |
| 4T02P2 | 5.3 | 5 | 2.2 | 272*260*196 |
| 4T03P0 | 6.5 | 6 | 3 | 272*260*196 |
| 4T04P0 | 8.5 | 8 | 4 | 272*260*196 |
| 4T05P5 | 11.5 | 11 | 5.5 | 330*294*203 |
| 4T07P5 | 16 | 15 | 7.5 | 330*294*203 |
| 4T0011 | 21 | 20 | 11 | 373*369*222 |
Environmental and Safety
- Protection Grade
- IP55
- Shock Protection Grade
- 2g
Applications
Suitable Applications
- Pump house
- Intelligent building
- Residential water supply
- Fire water supply
- HVAC water supply
