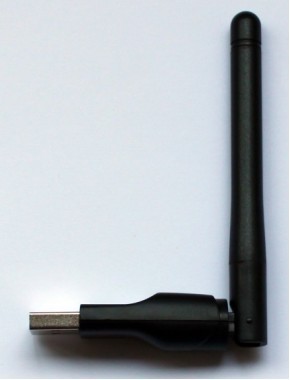

USB WiFi Adapter Dongle
This USB WiFi adapter supports IEEE 802.11b/g/n standards. It is designed for use with PCs, IPTV, GPS, HDMI, STB, and media players.
Technical Specifications
Overview
Compact Wireless Connectivity
This high-performance WLAN adapter utilizes the Ralink RT5370 chipset to provide reliable 802.11n wireless connectivity with speeds up to 150Mbps. Designed for versatility, it features a rotatable antenna and a mini-profile form factor, making it an ideal upgrade for PCs, IPTVs, GPS units, and media players. With support for AP mode and a wide range of operating systems, it delivers a seamless, high-speed networking experience in a compact package.
Hardware
LED Indicators
LinkActivity
- Main Chipset
- Ralink RT5370
- Host Interface
- USB 2.0/1.1 Type A
- Dimensions
- 16.4 x 14.7 x 58 mm
RF Performance
Peak Throughput
150 Mbps
PHY Rate
90 Mbps
Peak Throughput
- Wireless Standards
- IEEE 802.11bIEEE 802.11gIEEE 802.11n
- Antenna
- 2dBi undetachable antenna
- Operation Frequency
- 2412~2483.5 MHz
Software Support
Supported Operating Systems
- Windows CE
- Windows 2000/XP/Vista/7
- Linux 2.6.X
- Mac OS X
- Android
- Security Standards
- WEP 64/128bitWPAWPA2802.1x802.11iCisco CCS
Operation Conditions
Temperature Range
| Environment | Range |
|---|---|
| Operation | -10°C - 60°C |
| Storage | -20°C - 70°C |
- Power Requirements
- DC 5.0V ± 5% / <160mA
- Max Humidity
- 95 %
