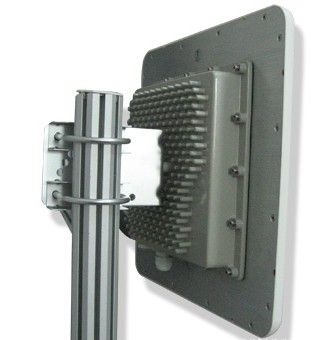

2.4GHz 18dBi Outdoor CPE Panel Antenna
This 2.4GHz 18dBi CPE enclosure panel antenna is designed for outdoor wireless applications. It features a high-gain panel antenna integrated within a weatherproof enclosure, providing enhanced signal strength and coverage.
Technical Specifications
Overview
High-Performance Outdoor CPE Antenna
The HXD24P-18 is a robust 2.4GHz outdoor CPE panel antenna designed for reliable point-to-point and point-to-multipoint wireless deployments. Featuring a high 18dBi gain and an integrated weatherproof enclosure, this unit protects sensitive internal electronics from harsh environmental conditions. Its durable aluminum die-cast and ABS construction ensures longevity, making it an ideal solution for extending wireless range and improving signal quality in demanding outdoor environments.
Electrical Specifications
Gain
18 dBi
Gain
Beam Width
| Plane | Width (º) |
|---|---|
| Horizontal | 25 |
| Vertical | 23 |
Performance Metrics
- Polarization: Vertical
- F/B Ratio: >28 dB
- Impedance: 50 Ω
- VSWR: ≤1.5
- Max Input Power: 100 W
- Lightning Protection: DC Ground
- Frequency Range
- 2400-2500 MHz
Mechanical Specifications
Environmental Durability
- Connector: N-Female
- Rated Wind Velocity: 60 m/s
- Mounting Hardware: φ35–φ50 mm
- Antenna Dimensions
- 305 x 305 x 20 mm
- Inner Enclosure Space
- 190 x 190 x 35 mm
- Weight
- 2.6 kg
- Construction Materials
- ABS RadomeAluminum Die Cast Enclosure
