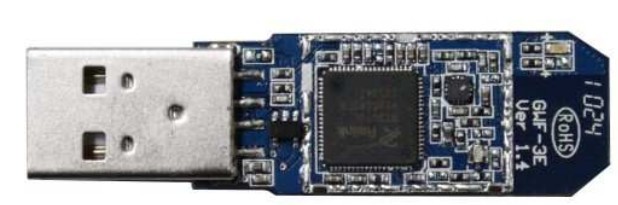

USB Interface Wi-Fi Module
This Wi-Fi module features a USB interface for easy connectivity. It supports 150Mbps and 300Mbps speeds and is compatible with Linux and Android.
Technical Specifications
Overview
Professional Wireless Connectivity

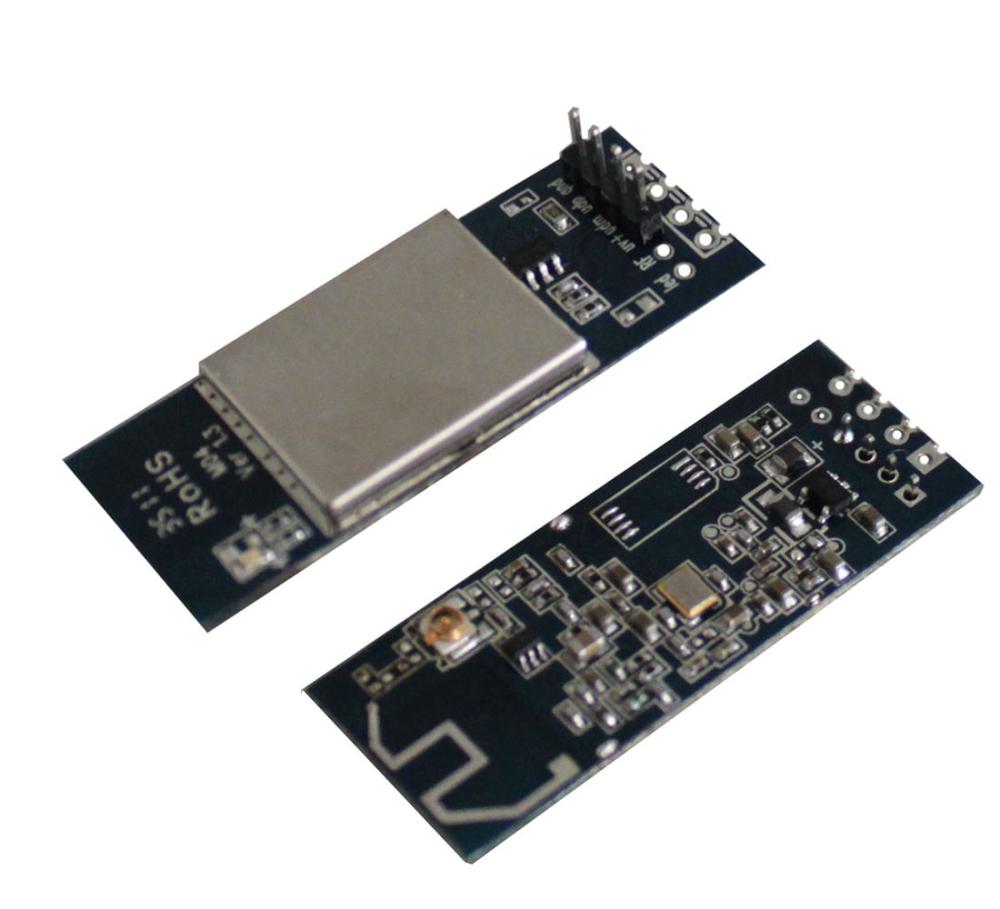

This USB Interface Wi-Fi module is designed for seamless integration into embedded systems and IoT devices. It utilizes a high-performance Ralink chipset to deliver reliable 802.11 b/g wireless networking. With a compact form factor and an external IPEX antenna interface, it provides flexible deployment options for diverse network applications.
Technical Specifications
- Chipset
- Ralink RT3070
- Interface
- USB 2.0 (4-pin 2.0mm male pitch jumper)
- Frequency Range
- 2412-2483.5 MHz (ISM band)
- Peak Throughput
- 27 Mbps
Performance Metrics
Supported Data Rates
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 6, 9, 12, 24, 36, 48, 54 Mbps
Certification & Compliance
- Certifications
- Wi-FiWPAWPA2WMMWMM-PSWHQLCisco CCXUSB-IF
Hardware Features
Hardware Attributes
RoHS CompliantExternal IPEX AntennaLink/Activity LEDs
