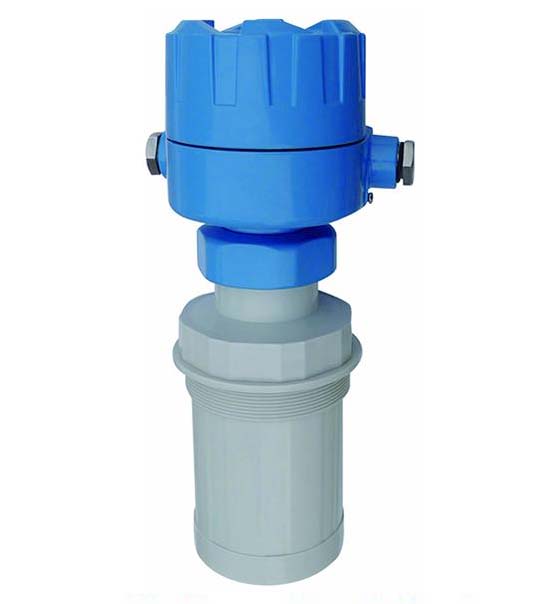

Ultrasonic Liquid Level Sensor
This ultrasonic level sensor offers non-contact measurement for accurate readings. It automatically compensates for temperature and pressure variations.
Technical Specifications
Overview
High-Precision Ultrasonic Level Monitoring
This ultrasonic liquid level sensor provides non-contact, high-precision measurement for various industrial applications including tanks, silos, and open channels. Equipped with integrated automatic temperature compensation, it ensures reliable accuracy even in challenging environments. The device features a user-friendly interface with an LCD display and simple three-button configuration, offering seamless integration with existing control systems.
Measurement Performance
Testing Period
1 s
Min Testing Interval
3 s
Max Testing Interval
- Output Resolution
- 0.03 %
Electrical Specifications
- Input Power
- DC24V ± 20%
- Output Current
- 4-20mA
- Output Load
- ≤ 500Ω
Environmental and Physical
Ingress Protection
IP65
- Operating Temperature Range
- -40 to 80°C
- Sensor Material
- PVC
Installation Requirements
Flange Standards Table
| Standard | Min Inner Diameter |
|---|---|
| UL4, UL6, UL8 | 65mm (DN65) |
| UL8A, UL810 | 80mm (DN80) |
