UHF RFID Reader with Integrated Antenna

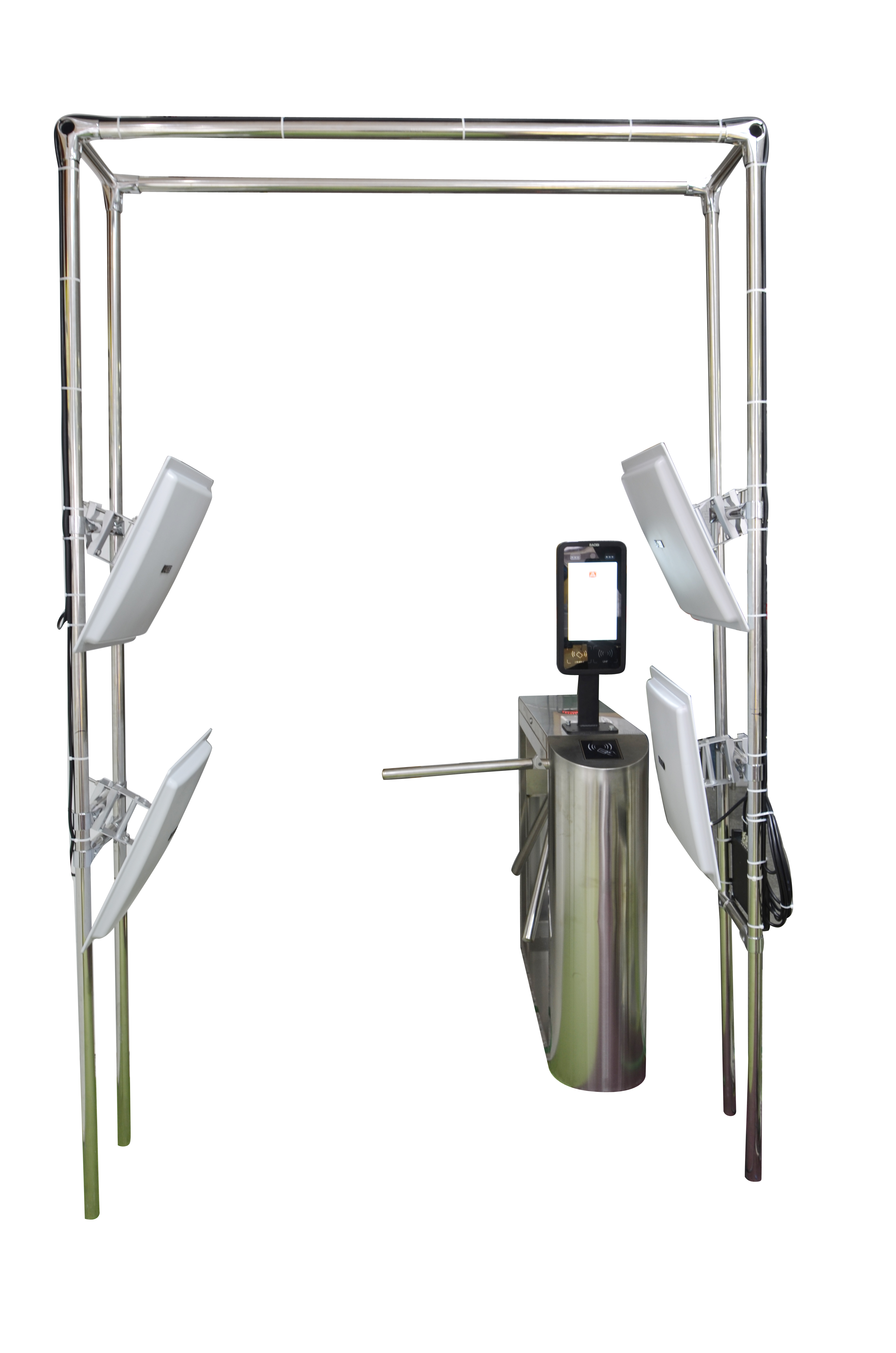

This high-performance UHF RFID reader is designed for access control and other applications. It supports multiple RFID protocols and offers reliable data capture in demanding environments.
Technical Specifications
Overview

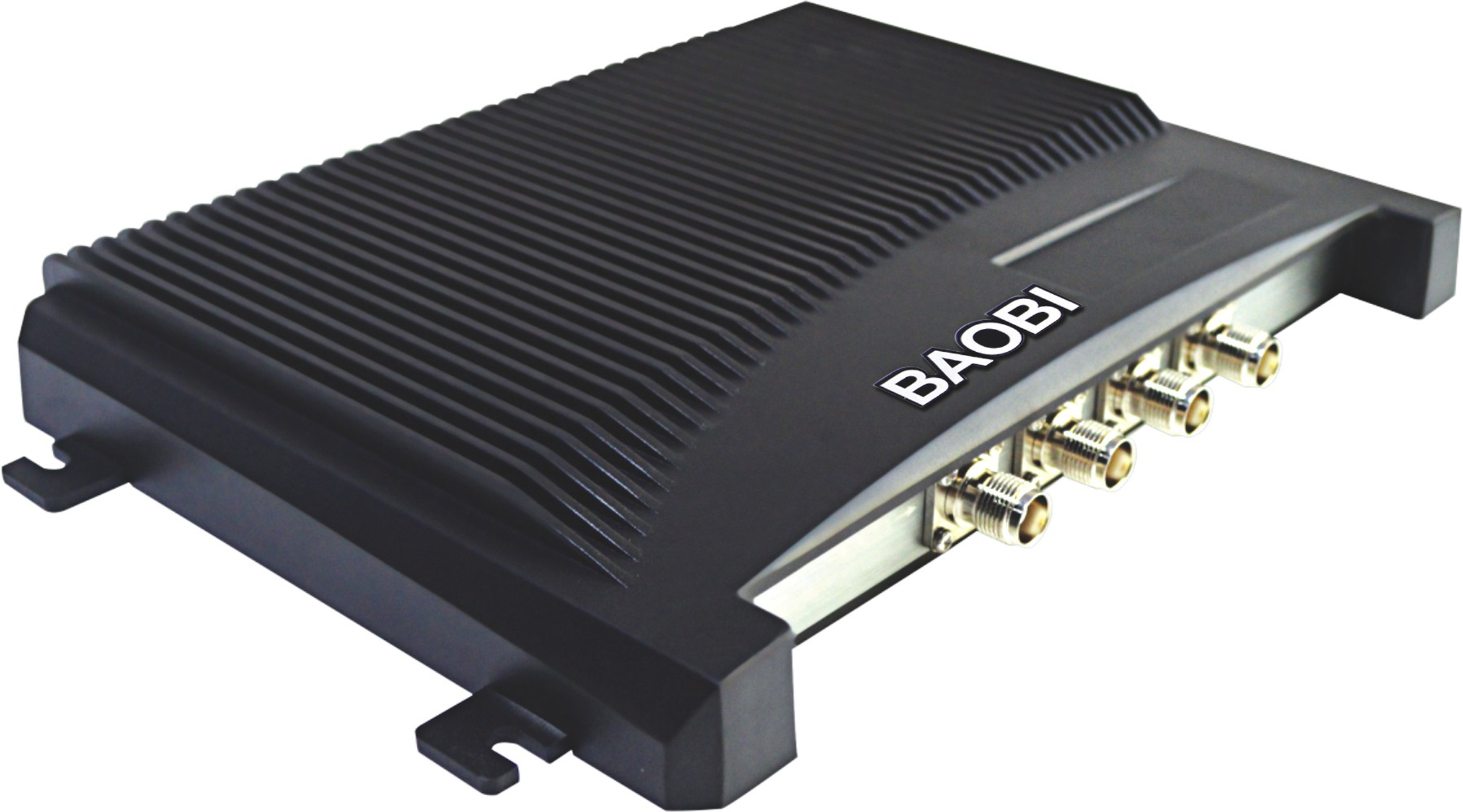

High-Performance UHF RFID Reader
This industrial-grade UHF RFID reader is engineered for high-demand environments requiring reliable, 24/7 operation. Built with a robust die-cast aluminum alloy housing, it features advanced multi-tag recognition algorithms and a dual CPU architecture for parallel data processing. Designed for seamless integration, it supports multiple global frequency standards and offers flexible communication interfaces, making it an ideal solution for asset tracking, inventory management, and access control.
Key Performance Metrics
Key Performance Metrics
700 pcs/sec
Inventory Tag Peak Speed
33 dBm
Max Output Power
1,000 tags
Tag Cache Capacity
Technical Specifications
- Dimensions
- 230mm (L) x 160mm (W) x 28mm (H)
- Net Weight
- 1.8 kg
- Body Material
- Die-cast aluminum alloy
- Operating Temperature
- -20°C to +55°C
RFID Capabilities
- Supported Protocols
- EPC global UHF Class 1 Gen 2ISO 18000-6CISO 18000-6B
- Operating Frequency
- 860MHz – 960MHz
Connectivity & Power
Communication Interfaces
- RS-232
- TCP/IP
- Input Voltage
- DC 12V ~ 18V
- GPIO Configuration
- 2 input optical couplings, 2 output optical couplings
Operational Features
Inventory Modes
Cache ModeReal-time Mode
System Monitoring Features
- Hardware CPU crash monitoring
- RFID power amplifier monitoring
- Antenna connection status monitoring
- Multi-point on-board temperature monitoring
