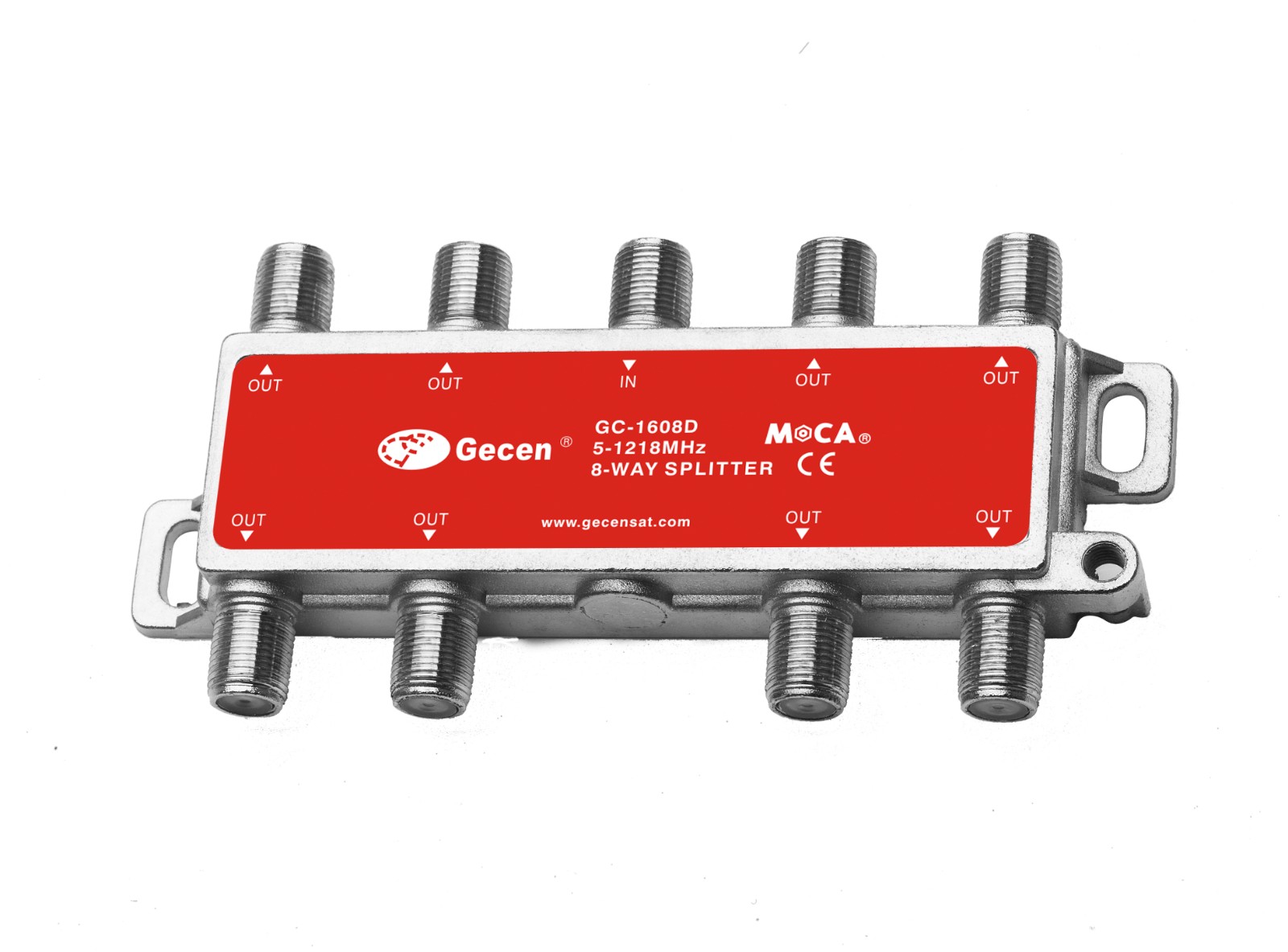

RF Couplers

Sourcing RF couplers at scale requires navigating a strict matrix of electrical performance and mechanical precision. Whether you are procuring standard directional couplers for DAS (Distributed Antenna Systems) or custom hybrid couplers for specialized microwave applications, the primary challenge is maintaining consistent directivity and low passive intermodulation (PIM) across high-volume production runs.

When buying in bulk, the difference between a reliable supplier and a costly liability lies in their machining tolerances, plating processes, and in-house testing capabilities.

Critical Specifications to Define with Suppliers

To prevent costly misunderstandings, your RFQ (Request for Quote) must go beyond basic coupling values and frequency ranges. Manufacturers need exact parameters to determine whether a stripline (PCB-based) or air-dielectric (cavity) design is required.

Manufacturing Variables and Quality Control

The manufacturing floor is where RF performance is either secured or lost. For cavity couplers, the CNC machining of the aluminum housing must be flawless. Any burrs or uneven surfaces inside the cavity will introduce impedance mismatches and degrade VSWR.

Plating is another critical failure point. High-performance telecom couplers typically require silver or tri-metal (albaloy) plating on the inner conductors to minimize skin effect losses and prevent PIM. Nickel plating should be strictly avoided in the RF path due to its ferromagnetic properties, which severely degrade PIM performance.

Relying on a factory's self-reported data is risky. Implementing independent Quality Control & Inspection ensures that 100% of the batch undergoes sweep testing using calibrated Vector Network Analyzers (VNAs) and dedicated PIM testers before the shipment leaves the facility.

Evaluating RF Component Manufacturers

China is home to hundreds of passive RF component assemblers, primarily clustered in Guangdong (Shenzhen, Dongguan) and Jiangsu provinces. However, true manufacturers—those with in-house CNC machining, specialized RF engineering teams, and high-end testing equipment—are much rarer.

When assessing a factory, look at their test bench. A legitimate manufacturer producing telecom-grade couplers will have racks of Agilent/Keysight, Anritsu, or Rohde & Schwarz network analyzers, alongside specialized PIM testing chambers. If they are outsourcing their PIM testing, they cannot reliably control quality at volume. Conducting thorough Factory Audits is the only way to verify these capabilities before committing to a large PO.

Typical Pricing, MOQs, and Lead Times

Pricing for RF couplers varies wildly based on power handling, PIM requirements, and connector types (e.g., SMA vs. N-Type vs. 4.3-10).

If you require custom frequency bands, unique form factors, or specific power ratings, engaging a factory for OEM/ODM Services will involve Non-Recurring Engineering (NRE) costs for cavity redesign and new PCB layouts. Ensure that tooling ownership is clearly defined in your manufacturing agreement.

Frequently Asked Questions

Sourcing RF couplers successfully means treating the procurement process as an engineering exercise. By strictly defining mechanical tolerances, demanding transparent testing protocols, and verifying factory capabilities firsthand, you can secure reliable components that perform exactly as specified in the field.
