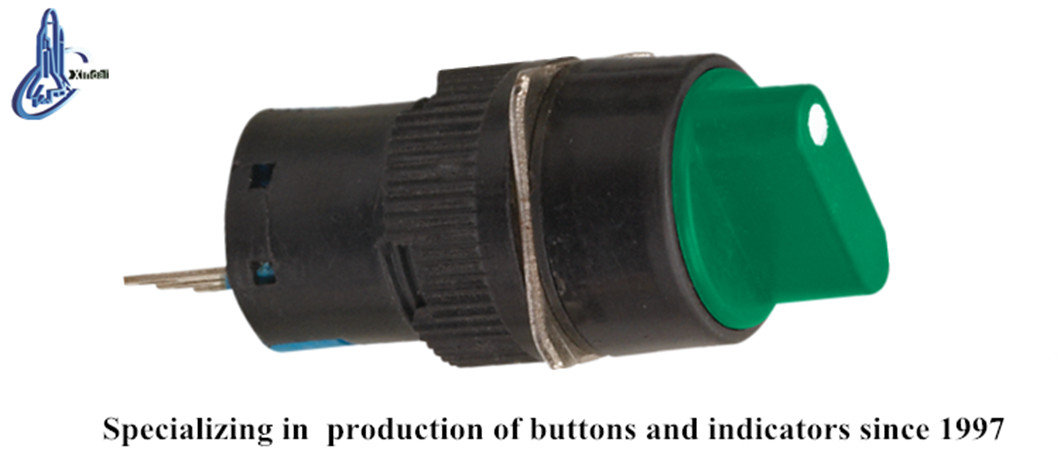

Two-Position Selector Switch
This two-position selector switch is designed for electrical power applications. It allows for selecting between two distinct operating modes or circuits.
Technical Specifications
Product Overview
Industrial Selector Switch
The XDL16-11XAD is a robust two-position selector switch engineered for reliable performance in industrial control systems. Designed to facilitate switching between two distinct states, it features a durable zinc alloy and anti-flame plastic body, ensuring longevity in demanding environments. This switch is suitable for a wide range of electrical installations, including distribution cabinets, power stations, and communication networks, offering versatile operation with integrated signal lighting options.
Technical Specifications
Electrical Performance Metrics
660 V
Rated Insulation Voltage AC
10 A
Heating Current
2.5 KV
Withstand Voltage

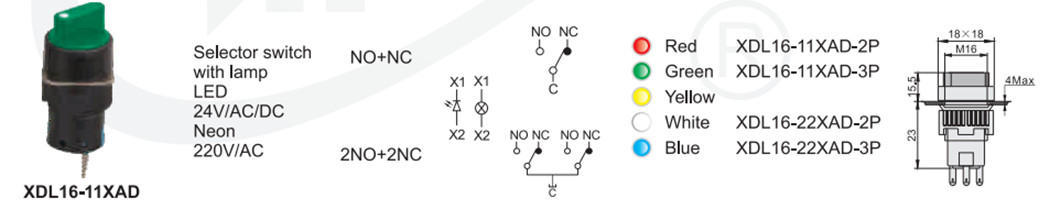

Mounting Details
| Dimension | Value |
|---|---|
| Mounting Thread | M16 |
| Front Panel Protrusion | 4mm (Max) |
| Overall Height | 23mm |
| Contact Block Depth | 15.5mm |
Operating Environment
Operating Conditions
- Ambient Temperature: -25°C to +50°C
- Relative Humidity: <85%
- Altitude: up to 2,000m
- Pollution Grade: 3
- Protection Grade: IP40/IP55
Compliance and Quality
- Certifications
- CEISO 9001ROHSUL
