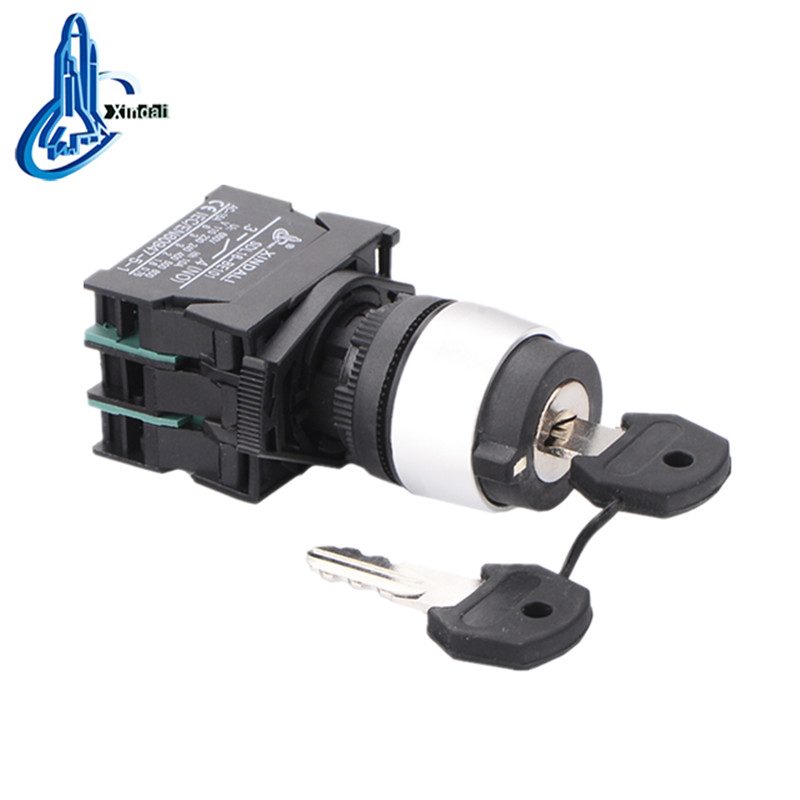

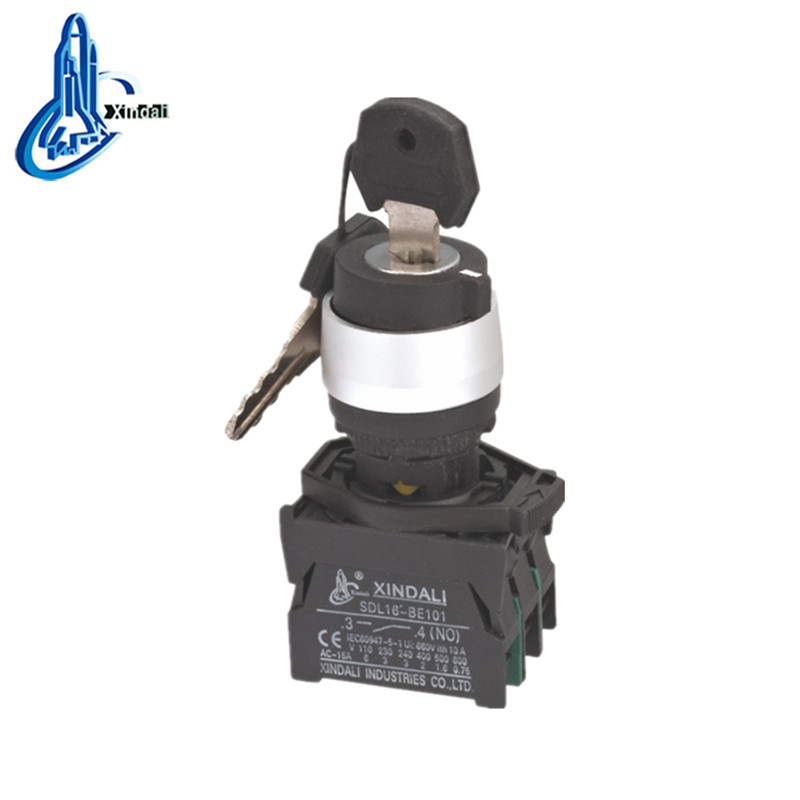

Two-Position Key Operated Selector Switch
This two-position key operated selector switch enables secure on/off control. It is designed for use in industrial control panels and machinery.
Technical Specifications
Product Overview

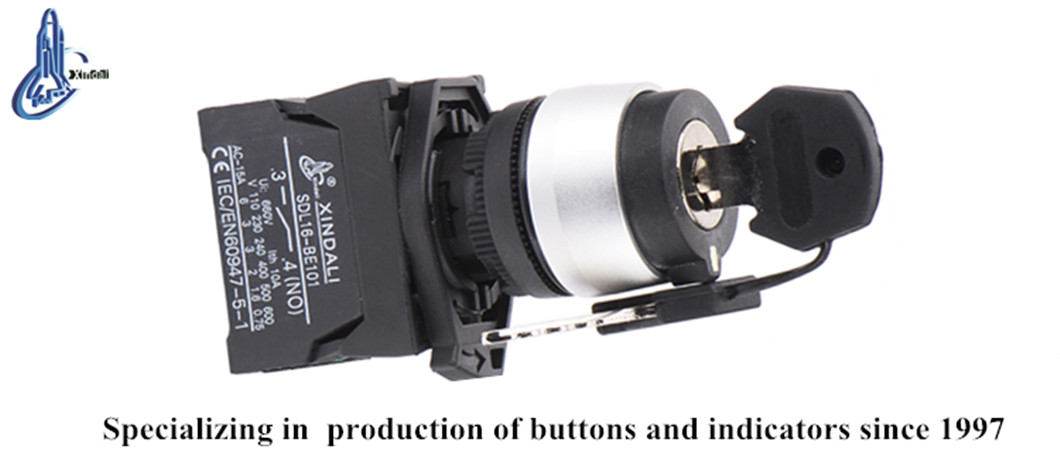

Professional 2-Position Key Operated Selector Switch
This industrial-grade key operated selector switch provides secure, reliable on/off control for electrical circuits. Engineered with a durable metal and high-grade anti-flam plastic housing, it is designed for demanding environments like power stations, control cabinets, and distribution centers. The switch features a high-performance silver alloy contact system to prevent electrical erosion, ensuring long-term operational stability and safety.
Technical Parameters
Electrical Ratings
| Parameter | Value |
|---|---|
| Rated Insulation | AC 600V |
| Heating Current | 10A |
| Contact Resistance | ≤25mΩ |
| Insulation Resistance | ≥50MΩ |
Durability Metrics
500,000 cycles
Mechanical Life
250,000 cycles
Electrical Life
Mechanical Specifications

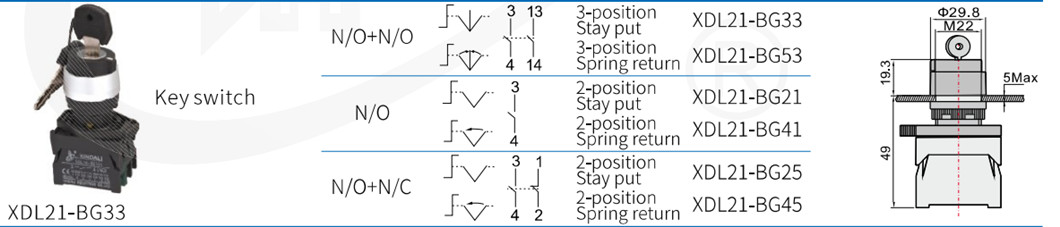

Mounting Dimensions
- Panel Hole Diameter: 22mm
- Maximum Panel Thickness: 5mm
- Outer Diameter: 29.8mm
- Above Panel Height: 19.3mm
Compliance & Quality
- Certifications
- CEISO 9001RoHSUL
- Compliant Standards
- GB/T14048.1, IEC60947-5-1
