Tubular Quartz Halogen Lamp

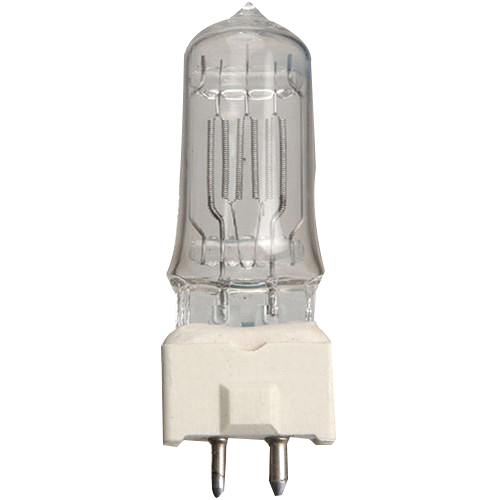

This specialized halogen lamp features a clear tubular quartz envelope. Its internal structure consists of coiled tungsten filaments supported by conductive wires for intense, consistent illumination.
Technical Specifications
Product Overview
High-Performance Tubular Quartz Halogen Lamp
This specialized 650W tubular quartz halogen lamp is engineered for applications requiring high-intensity output and precise light control. It delivers a color temperature of 3200K, making it ideal for professional staging, theatrical lighting, or industrial inspection systems. Its compact GY9.5 base and robust internal filament design ensure reliable performance in demanding environments.
Performance Metrics
Key Performance Indicators
650 W
Power Rating
16,000 LM
Luminous Flux
200 Hours
Average Life
Technical Specifications
Electrical Data
| Parameter | Value |
|---|---|
| Voltage | 120V |
| Base Type | GY9.5 |
| Filament Type | C-13D |
| Color Temperature | 3200K |
Dimensions
- Dimension A: 23±0.5mm
- Dimension B: 86±1mm
- Dimension C: 46.5±1mm
