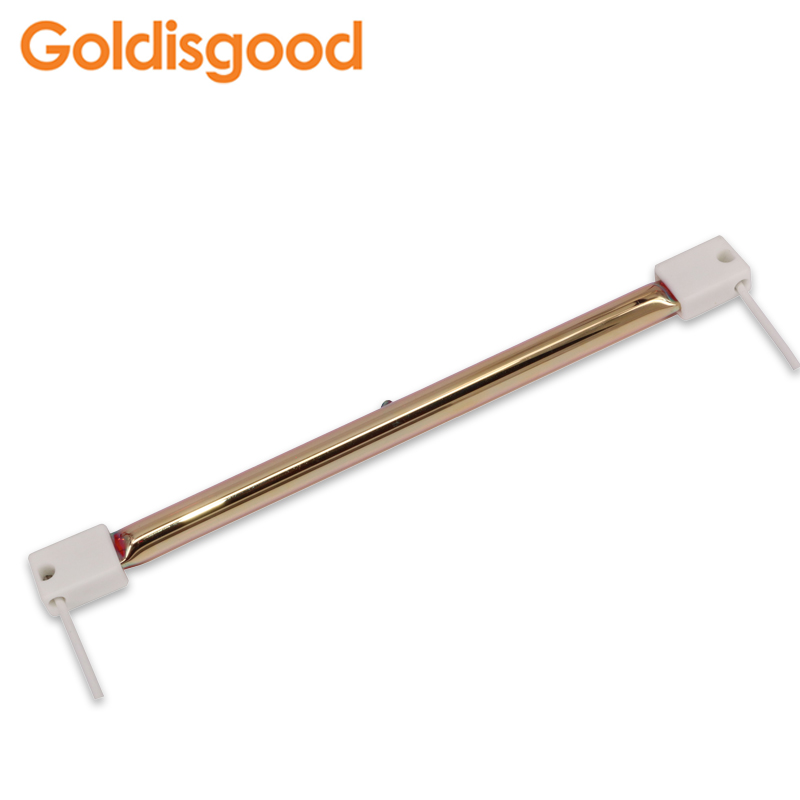

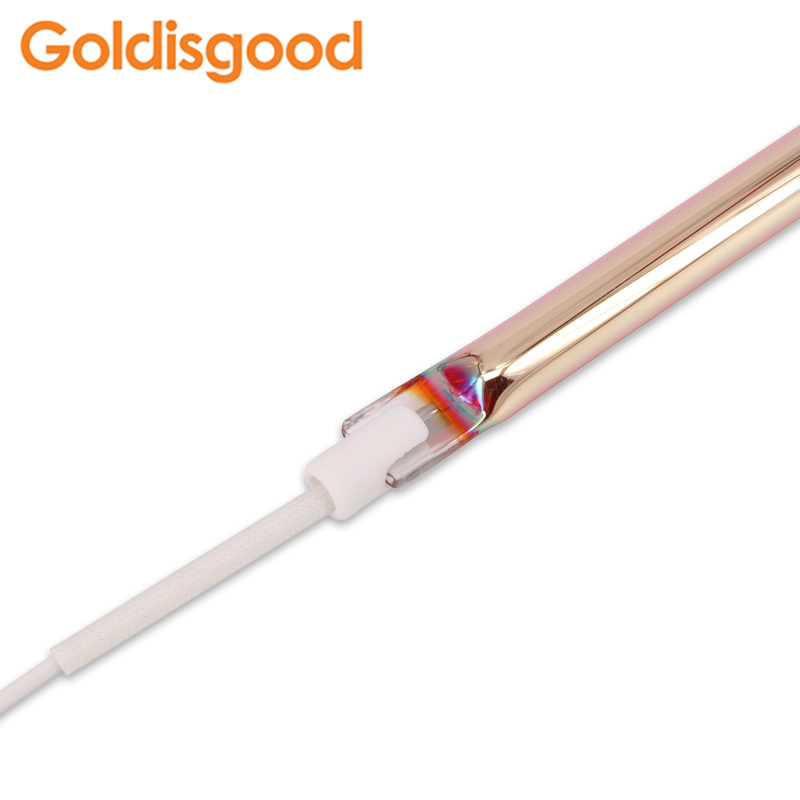

Infrared Halogen Heating Lamp
Infrared halogen heating lamps provide efficient heat transfer for industrial and commercial applications. These lamps feature rapid heating and cooling cycles with robust, heat-resistant construction.
Technical Specifications
Product Overview
High-Efficiency Infrared Heating Solutions
These infrared halogen heating lamps are engineered for rapid, efficient heat transfer in industrial and commercial environments. Designed with high-quality quartz glass and halogen technology, they provide consistent performance for heating, drying, and warming applications. The range includes specialized ruby and gold-coated options to reduce visible brightness while maximizing heat output.
Technical Specifications
- Power Output Range
- 500W - 4000W
- Voltage Range
- 110V - 440V
- Operational Lifespan
- 5000 hours
- Wave Type
- Short wave
Material & Construction
Available Colors
ClearCeramic WhiteRed
- Materials
- GlassQuartz glassHalogen
Performance Data
Performance Metrics
| Lamp Type | Color Temperature | Wavelength |
|---|---|---|
| Clear Halogen | 2450K | 1.3µm |
| Ruby / Gold Plate Halogen | 1800K | 1.6µm |
| Clear Carbon | 1200K | 2.5µm |
Compliance & Application
Primary Applications
- Industrial Heating
- Drying
- Warming
- Plastic Welding
- Paint Drying
- Certifications
- CEREACHROHSSGS
