Tricone Roller Drill Bits for Water Wells
These tricone roller drill bits are specifically engineered for water well drilling. They offer reliable performance in various geological conditions, ensuring efficient drilling operations.
Technical Specifications
Overview
High-Performance Tricone Roller Drill Bits
These professional-grade tricone roller drill bits are engineered for high-efficiency water well drilling applications. Available in both O-shaped and composite rubber sealing series, these bits are designed to maximize service life and reliability in diverse geological conditions. With advanced bearing technology and robust cutting structures, they effectively handle formations ranging from soft shale to abrasive flint.
Technical Specifications
Model Specifications Comparison
| Model | Diameter | IADC Code | Weight |
|---|---|---|---|

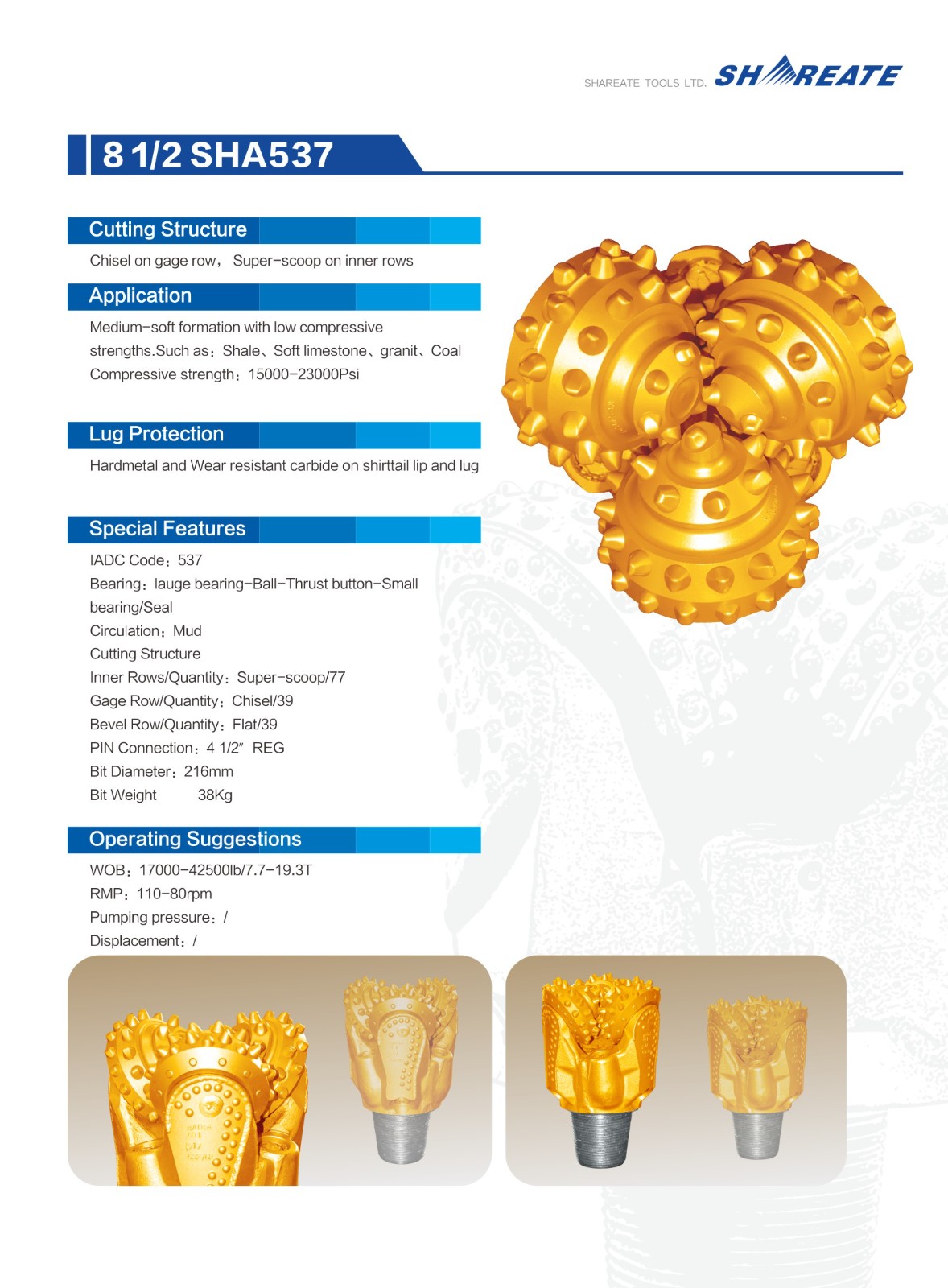

| SHA537 | 216mm | 537 | 38kg |
| SHA637 | 311mm | 637 | 98kg |
| SHV117T | 250mm | 117 | 65kg |
- Circulation Types
- Mud CirculationWater Circulation
Operational Metrics
Operating Parameters
73,500 lb
Max WOB
180 rpm
Max RPM
Suitable Formations
- Shale
- Soft/Medium Limestone
- Sandstone
- Granite
- Coal
- Dolomite
- Flint
