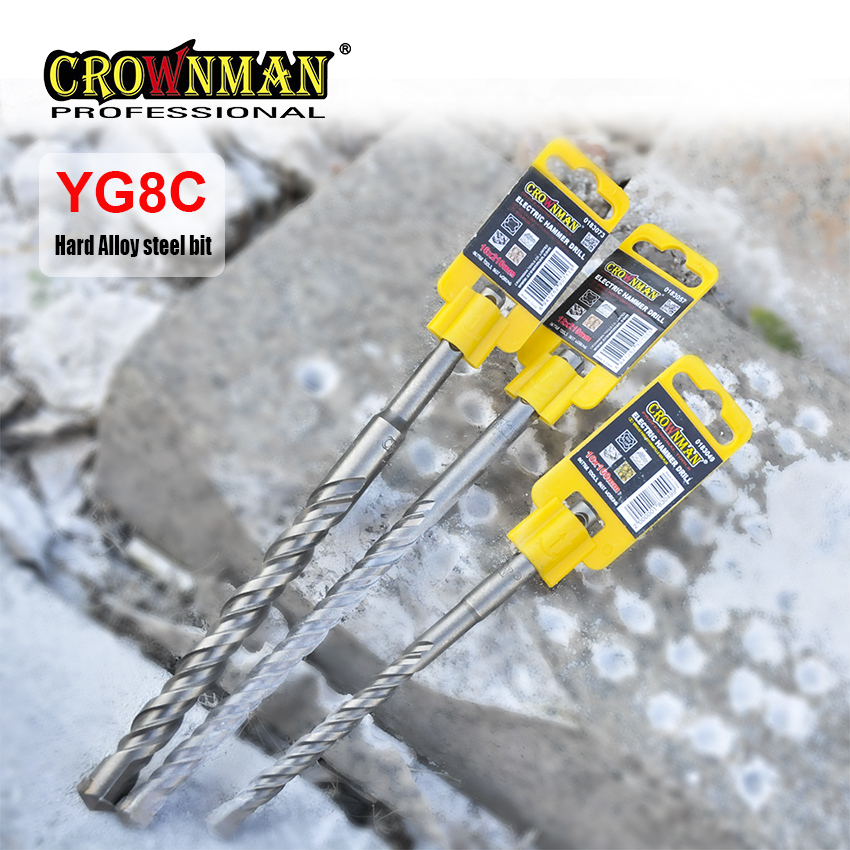

Alloy Steel Plus Shank Hammer Drill Bit for Concrete
This hammer drill bit is made from alloy steel and designed for drilling concrete and masonry. It features a plus shank for a secure connection to electric hammers.
Technical Specifications
Product Overview
Professional Grade Hammer Drill Bits
These high-performance hammer drill bits are engineered for demanding drilling tasks in concrete, masonry, brick, and stone. Utilizing a premium YG-8C alloy tip and a robust 40Cr shank, these bits offer superior durability and impact resistance. The advanced automated welding process ensures the tip remains securely attached even under heavy loads, while the double spiral flute design facilitates rapid chip removal for increased efficiency.
Technical Specifications
Design Features
- Double spiral slot for efficient chip removal
- Automatically welded tip for enhanced durability
- High-load resistance
Compatible Materials
ConcreteMasonryWallBrickStone
- Material Composition
- YG-8C Alloy Tip40Cr Steel Shank
Available Sizes
Standard Sizes and Dimensions
| Order No. | Diameter x Total Length (mm) | Working Length (mm) |
|---|---|---|
| 0183041 | 5x110 | 50 |
| 0183043 | 5x160 | 100 |
| 0183042 | 6x110 | 50 |
| 0183044 | 6x160 | 100 |
| 0183046-1 | 8x110 | 50 |
| 0183046 | 8x160 | 100 |
| 0183047 | 8x210 | 150 |
| 0183049-1 | 10x110 | 50 |
| 0183049 | 10x160 | 100 |
| 0183050 | 10x210 | 150 |
| 0183052 | 10x310 | 250 |
| 0183056 | 12x160 | 100 |
| 0183057 | 12x210 | 150 |
| 0183059 | 12x310 | 250 |
| 0183064 | 14x160 | 100 |
| 0183065 | 14x210 | 150 |
| 0183067 | 14x310 | 250 |
| 0183072 | 16x160 | 100 |
| 0183073 | 16x210 | 150 |
| 0183075 | 16x310 | 250 |
| 0183078 | 16x460 | 410 |
| 0183080 | 18x210 | 150 |
| 0183082 | 18x310 | 250 |
| 0183085 | 18x460 | 410 |
| 0183089 | 20x310 | 250 |
| 0183092 | 20x460 | 410 |
| 0183098 | 22x460 | 410 |
| 0183099 | 22x600 | 550 |
| 0183104 | 25x460 | 410 |
| 0183105 | 25x600 | 550 |
