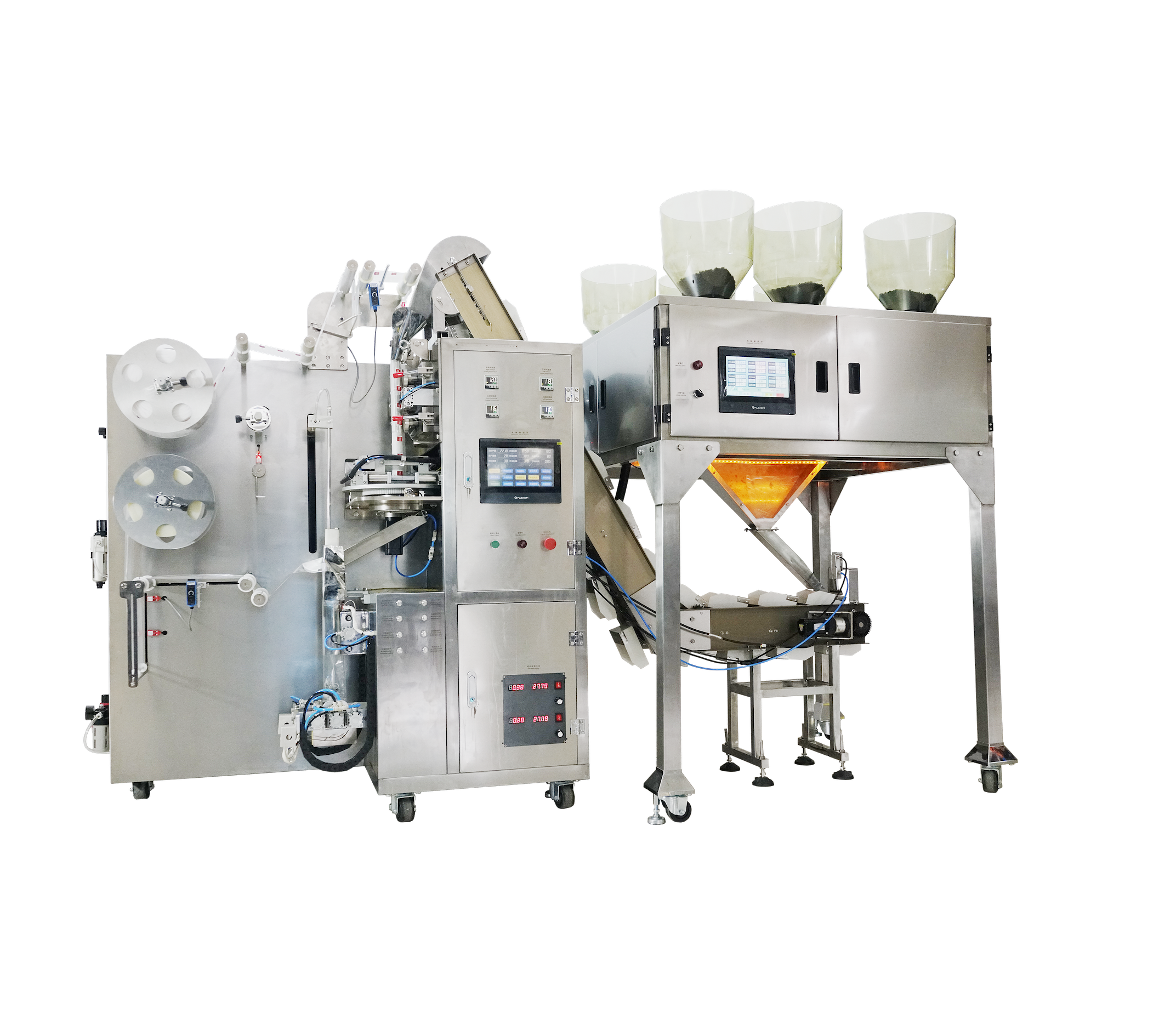

Triangle Tea Bag Packaging Machine
This machine automates the creation of both the inner tea bag and the outer envelope. It integrates filling, sealing, and packaging functions into a single unit for optimized workflow.
Technical Specifications
Product Overview
Automated Triangle Tea Bag Packaging Solution
This advanced packaging unit automates the entire process of inner and outer bag formation, filling, sealing, and cutting. Designed for high precision, it utilizes ultrasonic sealing and electronic scale metering to ensure accurate weight control for various tea types. Its robust, food-grade compatible construction makes it an ideal solution for efficient, large-scale production of high-quality tea and herbal infusions.
Performance Metrics
Key Performance Metrics
40 bags/min
Packing Speed
450 kg
Total Weight
7 g
Max Measuring Scope
Technical Specifications
- Machine Dimensions
- 1500 x 1100 x 2300 mm
- Power Supply
- AC220V / 50Hz / 3.8kW
- Gas Source
- 0.6 m³/min
Packaging Capabilities
Bag Size Dimensions
| Bag Type | Length Range (mm) | Width Range (mm) |
|---|---|---|
| Inner Bag | 80-140 | 80-130 |
| Outer Bag | 40-80 | 60-80 |
- Supported Packaging Materials
- NylonPolyester netNon-woven fibersCorn fiber
Applications
Suitable for
- Green tea
- Black tea
- Scented tea
- Coffee
- Chinese tea
- Health tea
- Herbal tea
- Granules
