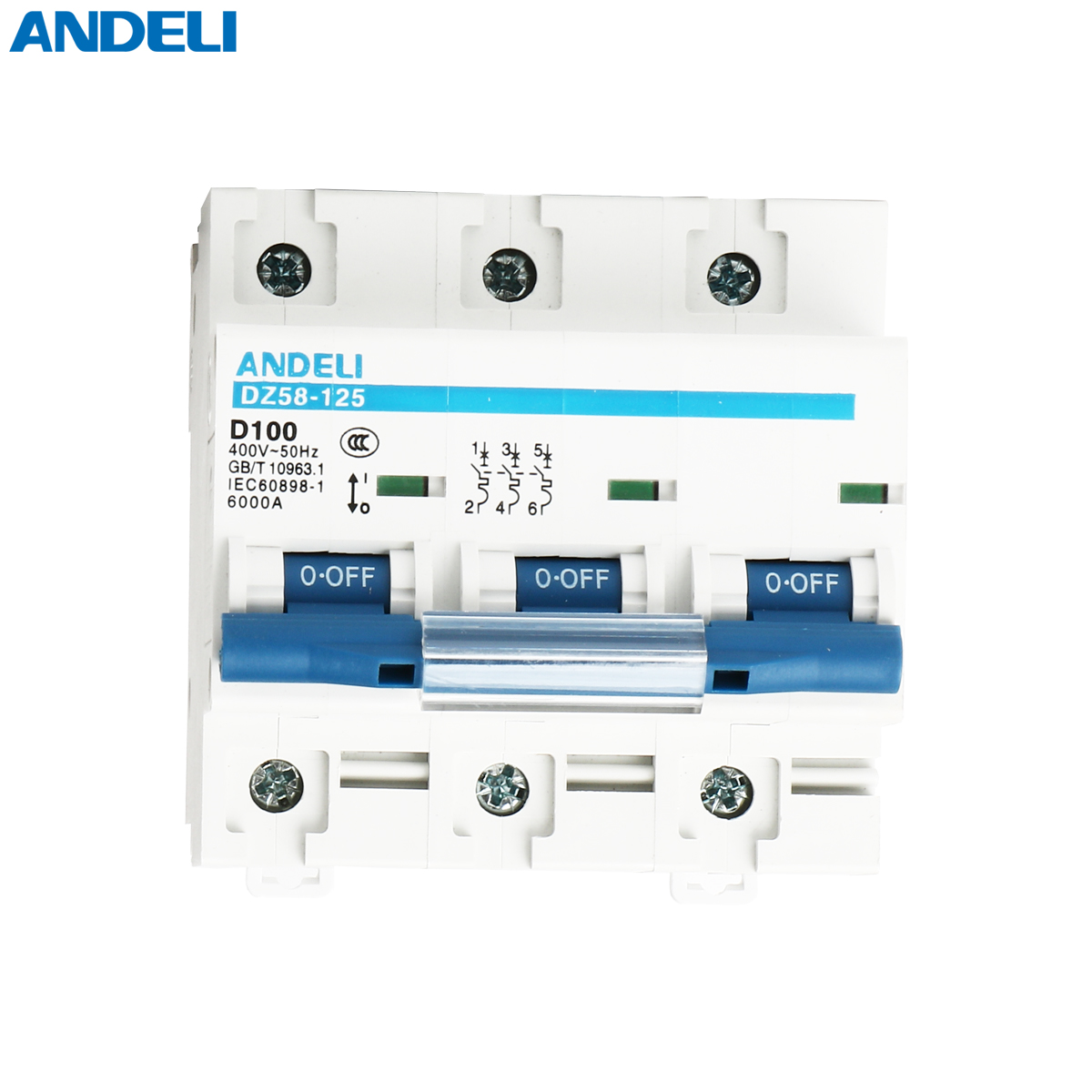

Three-Pole Miniature Circuit Breaker
This miniature circuit breaker is designed for electrical protection in residential, commercial, and industrial applications. It provides reliable overcurrent and short-circuit protection with a 6000A breaking capacity.

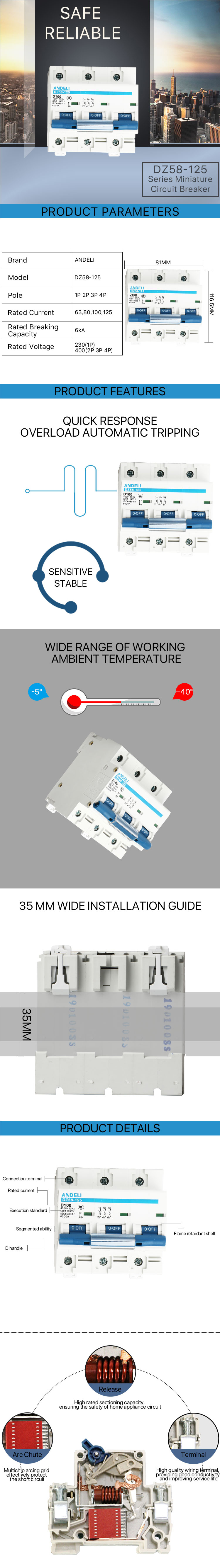

Technical Specifications
Product Overview
Reliable Circuit Protection
This three-pole miniature circuit breaker is engineered for robust electrical protection in residential, commercial, and industrial environments. It features a thermal-magnetic trip mechanism that ensures quick-response overload and short-circuit protection. Designed for durability and safety, it includes a flame-retardant shell and high-quality terminals for improved conductivity and service life.
Technical Specifications
Rated Breaking Capacity
6 kA
Breaking Capacity
- Rated Voltage
- 400V
- Rated Current Options
- 63A80A100A125A
- Pole Configuration
- 3P
- Compliance Standards
- GB/T 10963.1IEC60898-1
Installation & Environment

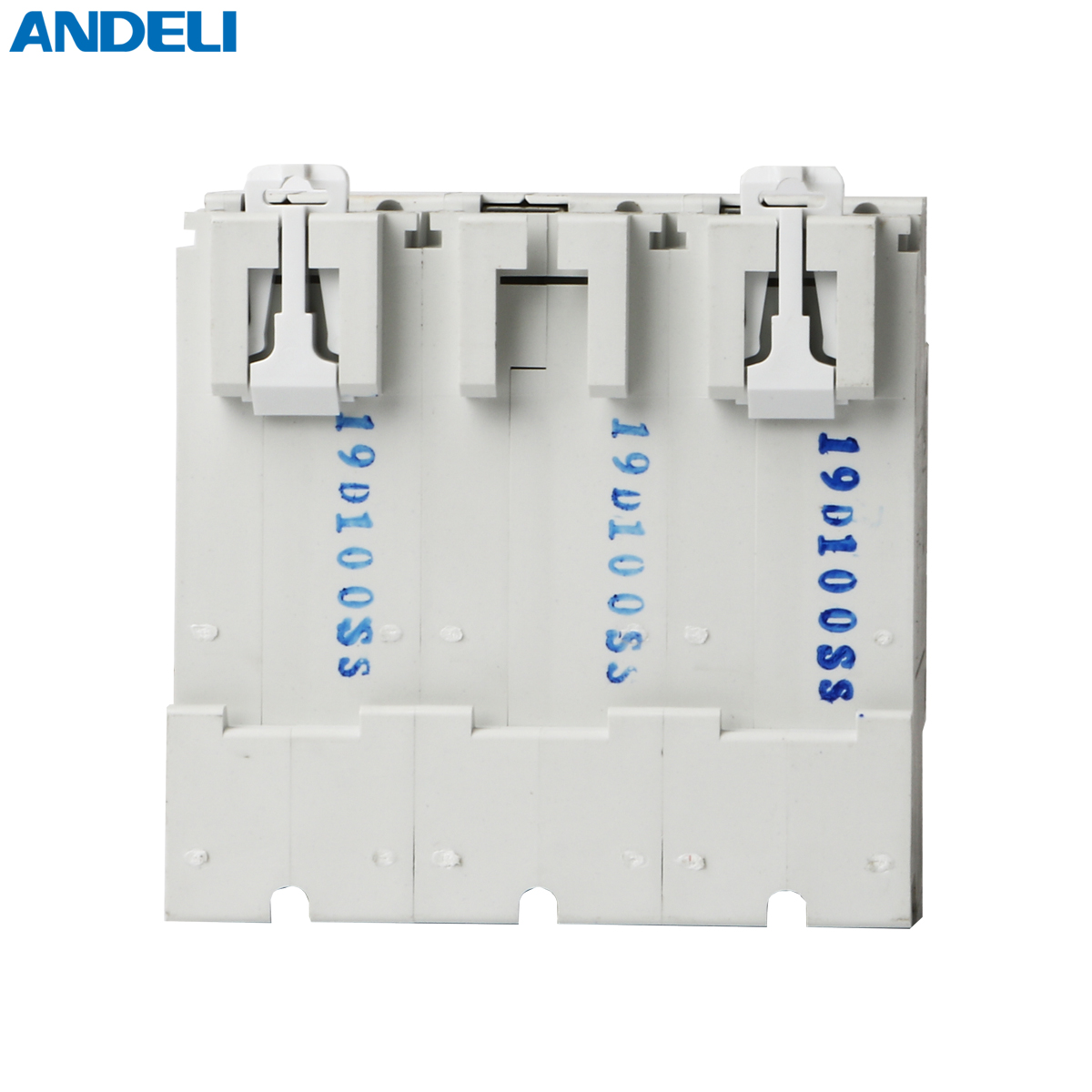

- Mounting
- 35mm DIN Rail
- Ambient Temperature Range
- -5°C to +40°C
Design Features
Key Safety Features
- Flame retardant shell
- Arc chute with multichip arcing grid
- Thermal-magnetic trip mechanism
- Clear on/off indication
