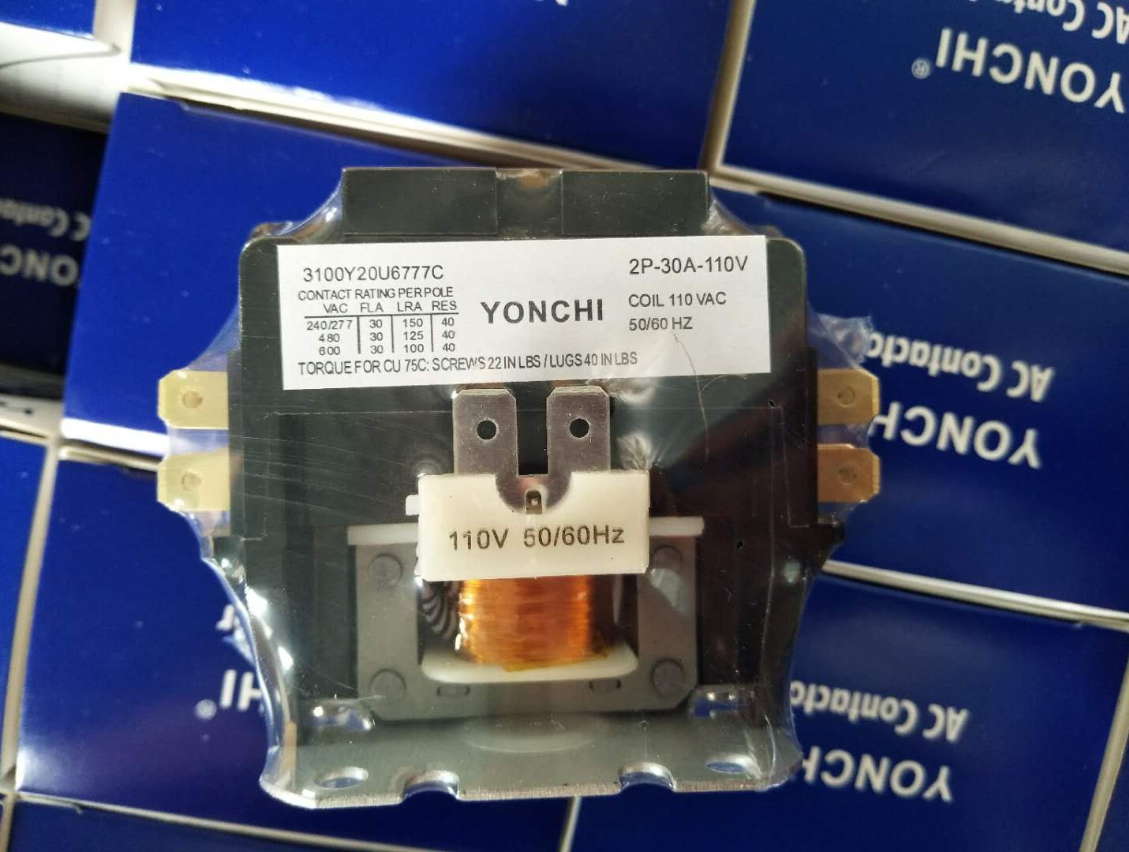

Three-Pole Electrical Contactor
This three-pole contactor features a coil voltage of 110 VAC at 50/60 Hz. It has a contact rating per pole of 30 FLA, 150 LRA, and 40 RES at 240/277 VAC; 30 FLA, 125 LRA, and 40 RES at 480 VAC; and 30 FLA, 100 LRA, and 40 RES at 600 VAC.
Technical Specifications
Overview
Reliable Three-Pole Contactor
This three-pole electrical contactor is engineered for robust switching performance in industrial and commercial electrical systems. Designed to handle varying voltage and load requirements, it ensures consistent operation and safety. With specific torque requirements for secure installation, this component provides a reliable solution for managing electrical circuits effectively.
Electrical Ratings
Contact Ratings per Pole
| Voltage (VAC) | FLA (A) | LRA (A) | RES (A) |
|---|---|---|---|
| 240/277 | 30 | 150 | 40 |
| 480 | 30 | 125 | 40 |
| 600 | 30 | 100 | 40 |
- Coil Voltage
- 110 VAC
- Operating Frequency
- 50/60 Hz
Installation
Torque Requirements (CU 75C)
22 in lbs
Screws
40 in lbs
Lugs
General Features
- Number of Poles
- 3
- Certifications & Compliance
- CU 75C Rated
