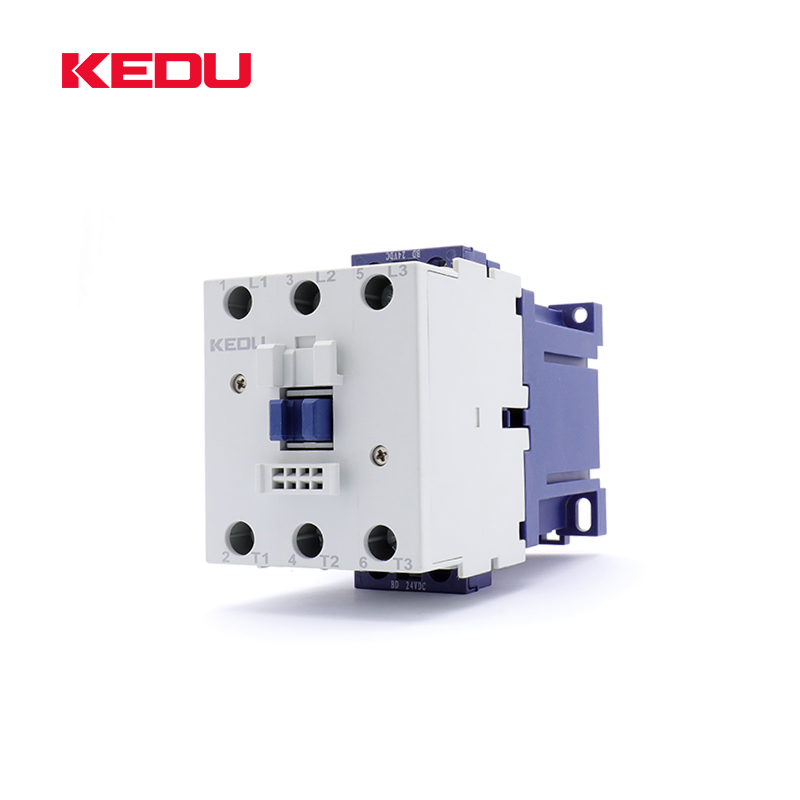

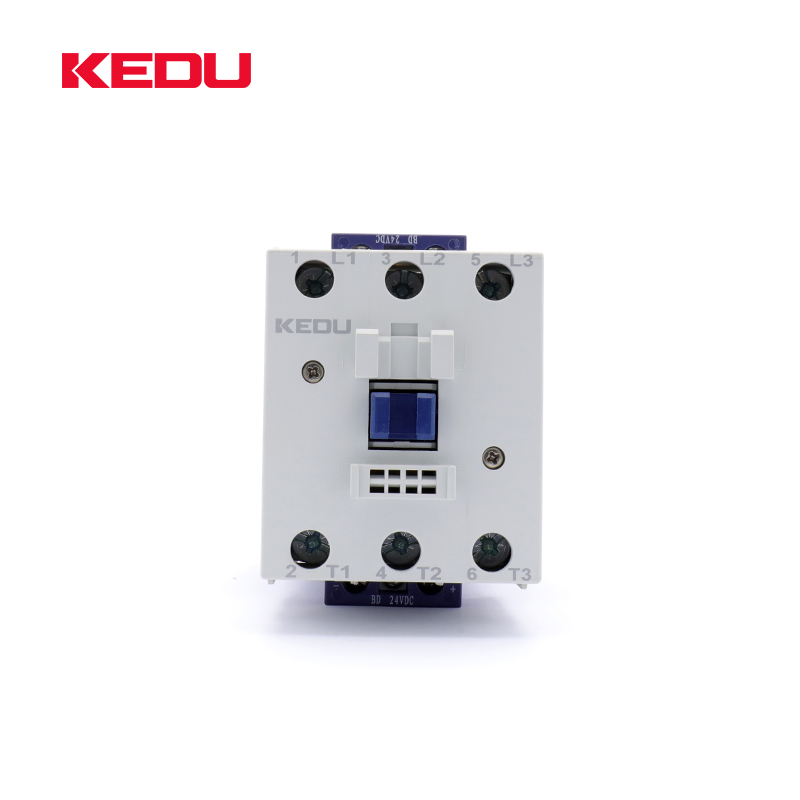

Three-Pole Contactor with 24VDC Control
This three-pole contactor is designed for switching electrical circuits in industrial applications. It features screw terminals for secure connections and robust construction for extended mechanical life.
Technical Specifications
Overview
Industrial Three-Pole Contactor
This three-pole contactor is engineered for reliable switching in demanding industrial electrical circuits. Featuring a robust design with a mechanical life of up to 14 million operations, it supports versatile installation options, including 35 mm DIN-rail mounting. The unit is compatible with both AC and DC coil control, offering flexible integration for various power management applications.
Performance Metrics
Mechanical Endurance
14 million
Operations
Power Ratings
50 kW
Max Power
60 Hp
Max Horsepower
Technical Specifications
Available Accessories
- Front-installed auxiliary contacts
- Side-installed auxiliary contacts
- Coil installed control modules
- Control Voltage
- 24VDC
- Mounting
- 35 mm DIN-Rail
- Coil Control Type
- ACDC
Operational Data
Operational Ratings (AC-2/AC-3/AC-4)
| Voltage (V) | Current (A) |
|---|---|
| 230/240 | 44 |
| 400/415 | 43 |
| 500 | 38 |
| 690 | 25 |
