Technical Specifications
Product Overview

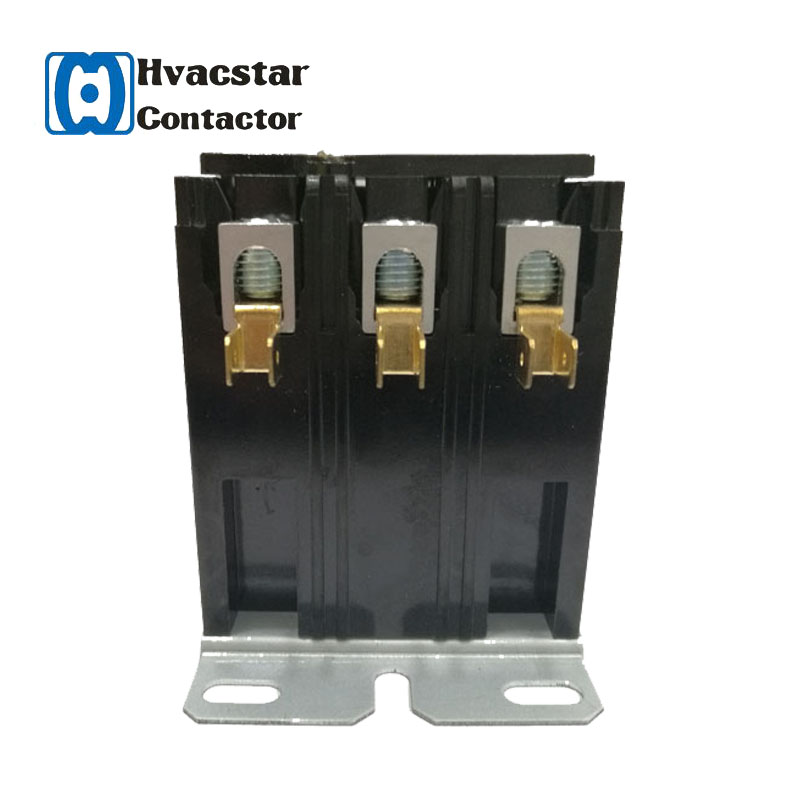

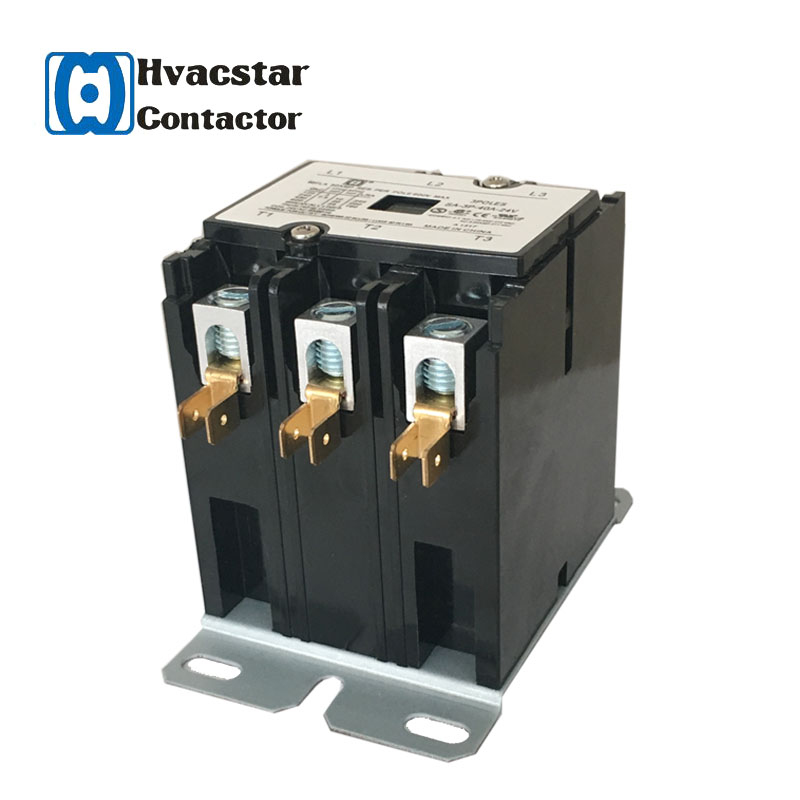

Professional HVAC Contactor
This three-pole definite purpose contactor is engineered for reliable performance in HVAC and refrigeration systems. Designed for switching motors, compressors, and resistive heating loads, it offers a compact, robust construction suitable for demanding industrial environments. It supports both single-phase and three-phase power configurations, making it a versatile choice for air conditioning units and heat pumps.
Electrical Ratings
Core Electrical Specs
30 A
Rated Current
600 VAC
Max Voltage
24 VAC
Coil Voltage
Performance Data
| Voltage | HP (1PH) | HP (3PH) | LRA |
|---|---|---|---|
| 120 | 3 | — | — |
| 240 | 7.5 | 10 | 240 |
| 480 | — | 20 | 200 |
| 600 | — | 25 | 160 |
Technical Specifications
Installation Torque
- Screws: 22 in-lbs
- Lugs: 40 in-lbs
Standards
CEIEC60947-4-1
- Configuration
- 3 Poles1PH Compatible3PH CompatibleHermetic Refrigeration Compressor Compatible
