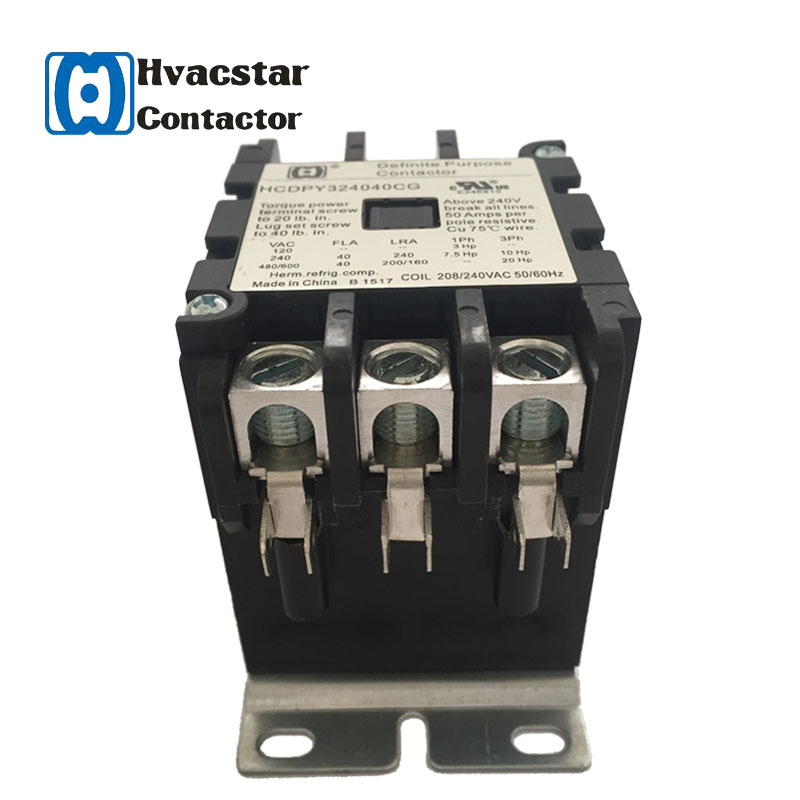

Three-Pole AC Definite Purpose Contactor

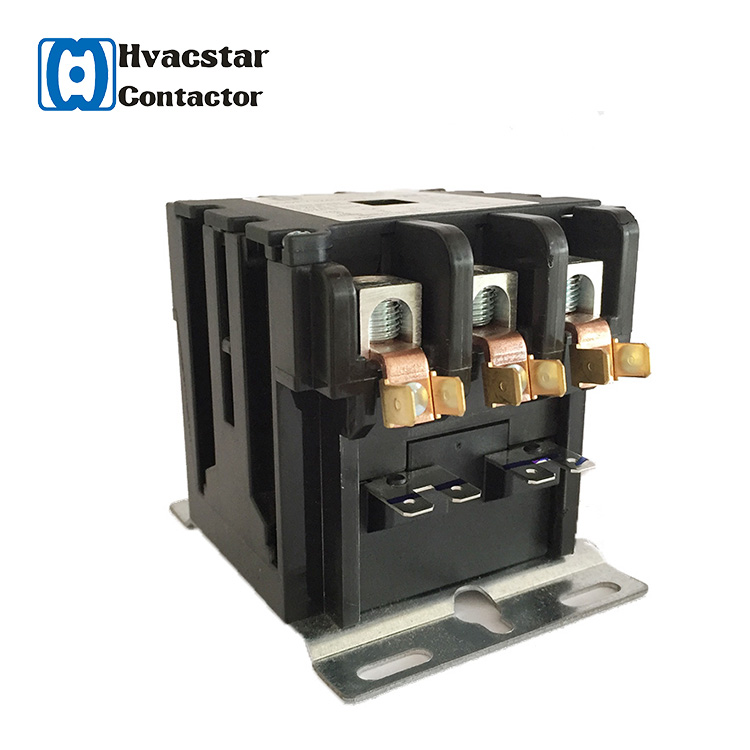

This three-pole AC contactor is designed for HVAC applications. It is suitable for controlling motors, compressors, and other inductive loads in air conditioning, refrigeration, and heating equipment.
Technical Specifications
Product Overview
High-Performance Definite Purpose Contactor
This three-pole AC definite purpose contactor is engineered to meet or exceed rigorous electrical and mechanical standards for HVAC and refrigeration applications. Designed for flexibility and reliability, it is ideal for controlling motors, compressors, and resistive heating loads in demanding industrial and commercial environments. The robust construction ensures long-lasting durability while maintaining compliance with USA and Canada safety requirements.
- Common Applications
- Air ConditioningHVAC SystemsHermetic Refrigeration CompressorsHeating EquipmentMotor Control
Electrical Ratings
Full Load Amps (FLA)
40 A
Rated Current
Voltage Ratings
- 120 VAC
- 240 VAC
- 480 VAC
- 600 VAC
- Resistive Amps per Pole
- 50 A
- Coil Voltage
- 208/240VAC 50/60Hz
Performance Data
Horsepower (HP) Ratings
| Voltage | Phase | Horsepower |
|---|---|---|
| 120V | 1 Phase | 3 Hp |
| 240V | 3 Phase | 10 Hp |
| 480/600V | 3 Phase | 20 Hp |
Locked Rotor Amps (LRA)
| Voltage | LRA Rating |
|---|---|
| 240V | 240 |
| 480V | 200 |
| 600V | 160 |
Technical Specifications
Wiring Specifications
- Use Cu 75°C wire only
- Terminal screw torque: 20 lb-in
- Lug set screw torque: 40 lb-in
- Above 240V: Break all lines
Standards & Compliance
Definite Purpose StandardUSA/Canada CompliantCE
- Number of Poles
- 3
