Three-Pole AC Contactor with Auxiliary Contacts

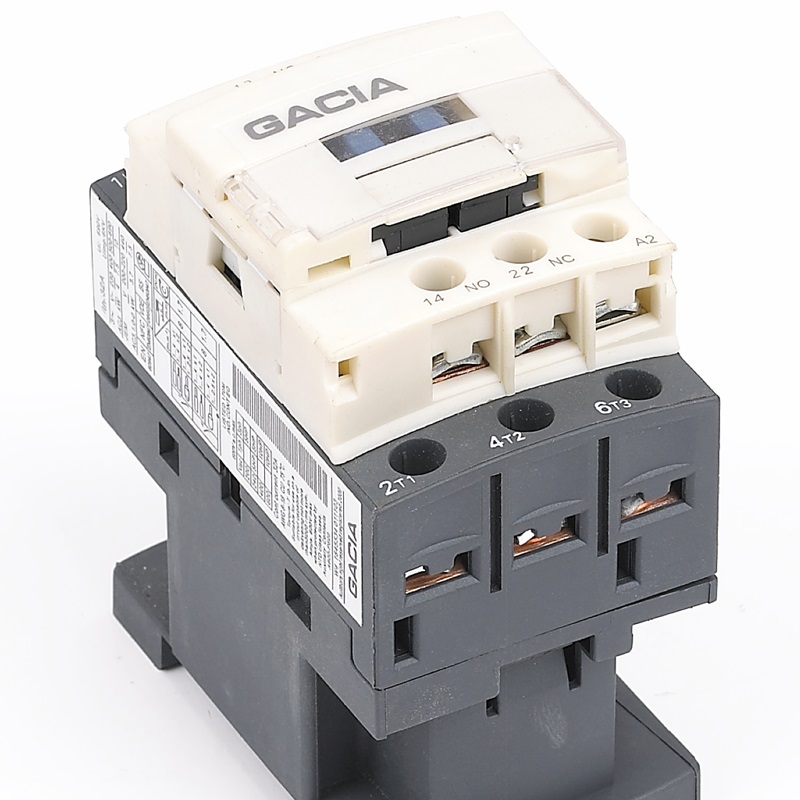

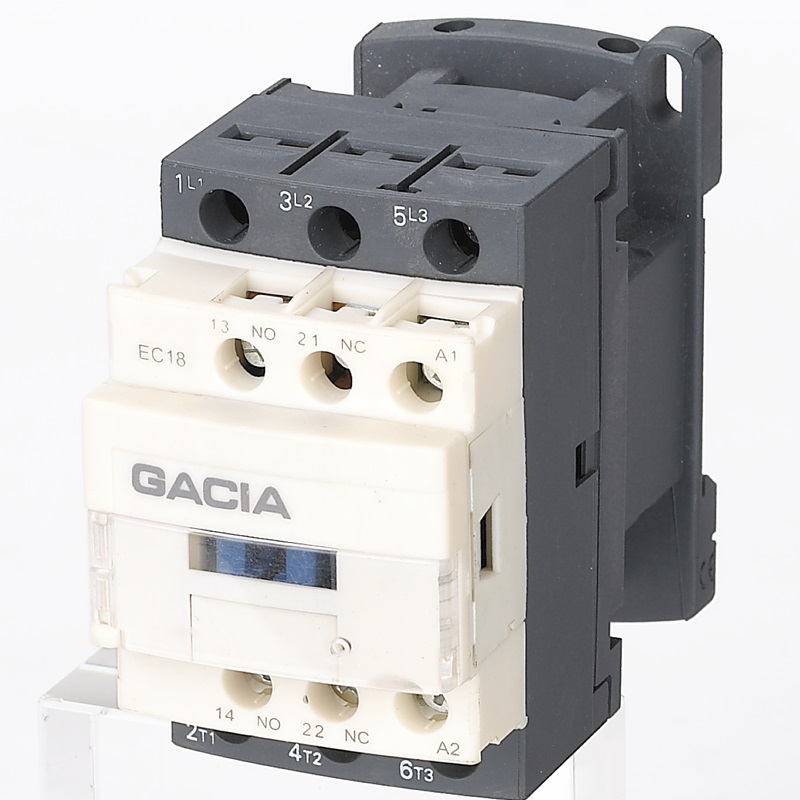

This AC contactor is a three-pole device designed for switching electrical circuits. It features auxiliary contacts for control and indication, along with screw terminals for secure connections.
Technical Specifications
Overview
Industrial AC Contactor
This three-pole AC contactor is engineered for reliable switching in demanding electrical environments. Designed for compatibility with 50/60Hz systems, it supports rated insulation voltages up to 1000V and operational currents ranging from 9A to 330A under AC-3 duty. Its robust construction makes it an ideal solution for remote circuit control, frequent motor starting and stopping, and integration into magnetic motor starters when paired with a thermal relay.
Technical Specifications
- Rated Insulation Voltage
- 1000 V
- Rated Operational Current (AC-3)
- 9-330A
- Frequency
- 50Hz60Hz
Compliance & Standards
International Standards
IEC60947-4-1GB14048.4
Connectivity
Terminal Layout
| Connection Type | Terminals |
|---|---|
| Power Input | 1L1, 3L2, 5L3 |
| Power Output | 2T1, 4T2, 6T3 |
| Auxiliary Control | 13 NO, 21 NC, 14 NO, 22 NC, A1, A2 |
