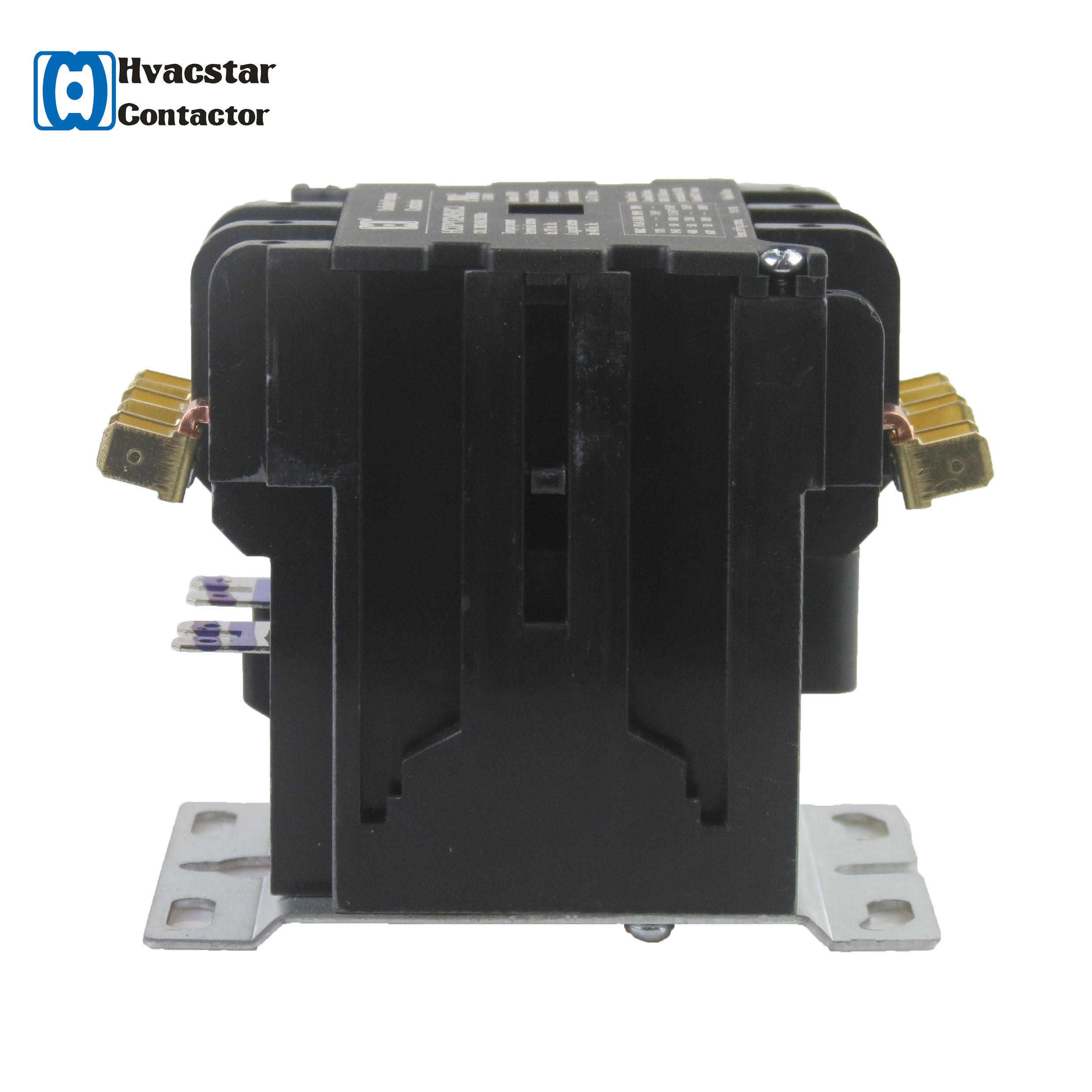

Three-Pole AC Contactor for HVAC Systems

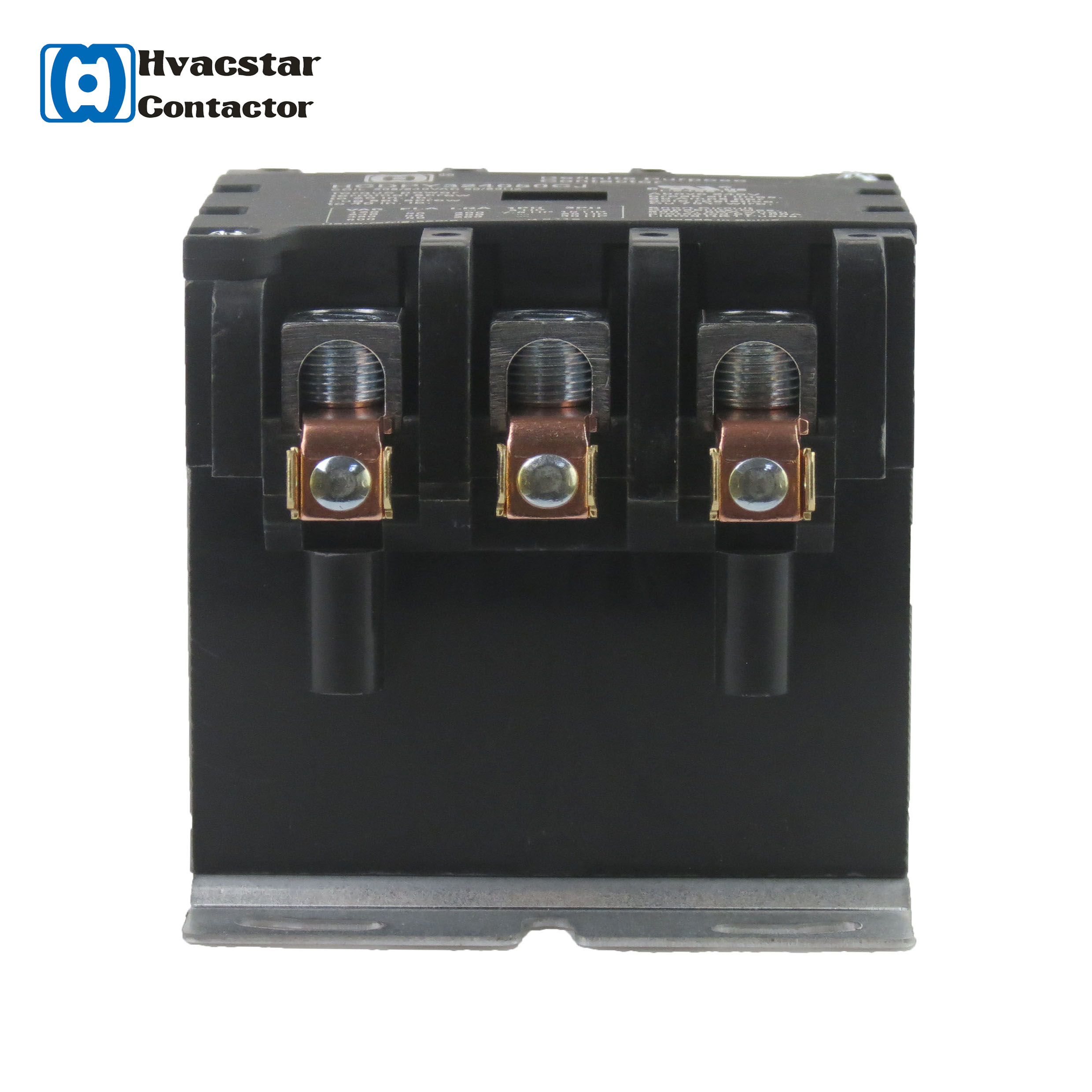

This three-pole AC contactor is designed for HVAC applications. It is equipped with screw terminals for secure electrical connections and ensures reliable switching performance.
Technical Specifications
Product Overview
Reliable HVAC Switching
This three-pole AC contactor is engineered specifically for demanding HVAC applications, providing robust switching performance for motors, compressors, and inductive loads. Built with a reinforced thermoset polyester housing and silver cadmium oxide contacts, it ensures long-term durability and resistance to welding. The unit features a compact design for easy panel integration and comes equipped with standard contact covers for enhanced protection.
Technical Specifications
- Electrical Life (Resistance Load)
- 250000 cycles
- Electrical Life (Horsepower Load)
- 100000 cycles
- Mechanical Life
- 1000000 cycles
- Coil Insulation
- Class B
Compliance & Standards
- Certifications
- UL File E246810CSA File 256361CE ApprovedARI-780
Features & Construction
Key Features
- Compact Size
- Weld-resistant Silver Cadmium Oxide Contacts
- Reinforced Thermoset Polyester Housing
- Quiet Operation
- Standard Contact Covers
- Taped Coils
Power Termination Options
- Lugs
- SEMS clamp
- Binding Head screws (standard)
- Quick Connects (standard)
